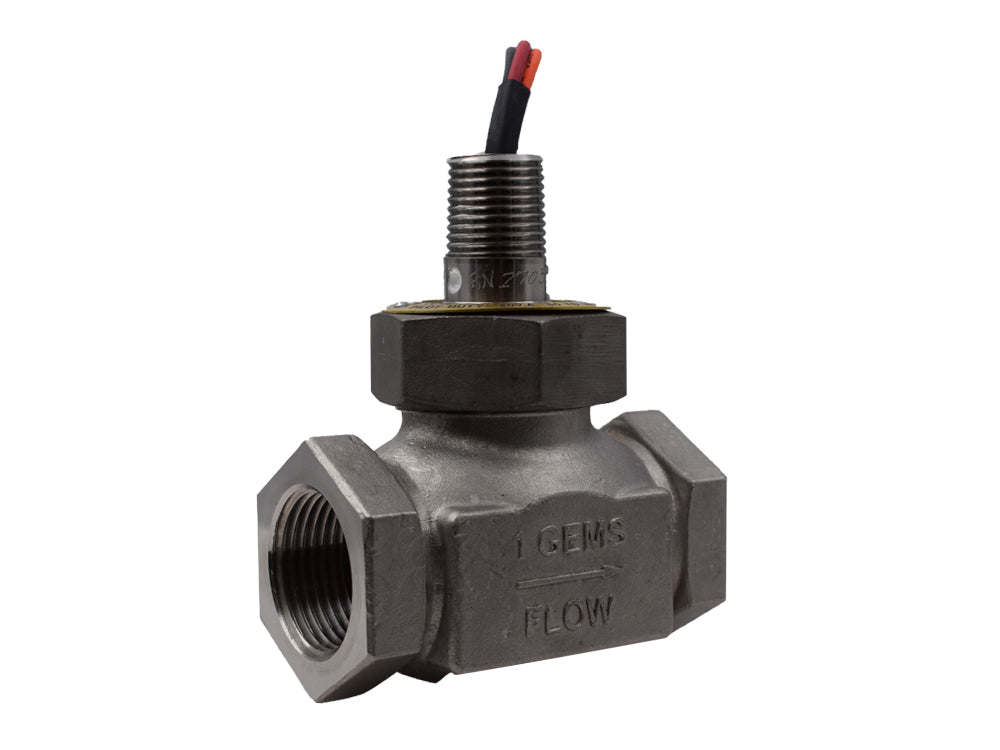

Gems Sensors 27067 1-1/4 Flow Switch

Product Description

The GEMS SENSORS 27067 is a FS-200 series flow switch that offers accurate flow detection with 1% repeatability across various flow settings and port sizes. Its durable construction ensures reliability in water or oil applications. Generous flow paths maintain low pressure drop, making it suitable for high-volume lubrication, cooling, or process systems.

• Accurate flow detection with 1% repeatability
• Durable construction for long-life reliability
• Suitable for water or oil applications
• Low pressure drop due to generous flow paths
• Ideal for high volume lubrication, cooling, or process systems

Product Highlights

Ideal for detecting improper flow rates in lubrication, cooling, or process systems, ensuring equipment protection.

Product Information

Standard Information

• Brand: GEMS SENSORS
• Manufacturer Part Number: 27067

Technical Specifications

• Series/Model: Series FS-200
• Connection Size: 1-1/4 IN FNPT
• Flow Rate: 1 GPM
• Contact Configuration: SPDT
• Pressure Rating: 300 - 500 PSI
• Temperature Rating: -20 To 300 DEG F
• Material: Bronze
• Industry Standards: CSA Certified, CE, UL Listed, FM Approved
• Other Physical Dimension: 4 IN Length, 2-3/16 IN Hex
• Additional Specifications: Plus/Minus 10% Set Point Accuracy
• Sensor Type: Shuttle Type
• Primary Material Of Construction: Alloy
• Body Material: Bronze
• Wetted Materials: Bronze, Teflon®,316 Stainless Steel, Viton, Ceramic
• Minimum Pressure: 300 - 500 psi
• Maximum Pressure: 400 psi
• Minimum Temperature: -20°F
• Maximum Temperature: 300°F
• Flow Setting Range: 0-1.0 GPM
• Set Point Accuracy: ±10%
• Set Point Differential: 15%
• Switch Type: SPDT (20 VA)
• Port Size: 1-1/4" NPT Female
• Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
• Recommended Filtration: 150 micron
• Manufacturer Part Number: 27067
• Manufacturer: Gems Sensors & Controls
• Product Series: FS-200
• Family Series: Gems Sensors & Controls Switches, FS-200 Series
• Description: FS-200 Series - General Purpose, Straight-Through Flow Path
• Flow Range: 0-1 gpm
• Accuracy: 10 %
• Approvals: CE, CSA, FM, UL
• Net Weight: 2.905 lbs
• Gross Weight: 3.27 lbs
• Flow Switch Type: SPDT
• Flow Rate Min: 0
• Flow Rate Max: 1
• Operating Pressure Max: 400psi
• Media Type: Water / Oil
• Process Connection Type: NPT
• Housing Material: Bronze
• Operating Temperature Max: 148.9°C
• Product Range: FS-200 Series
• SVHC: To Be Advised
