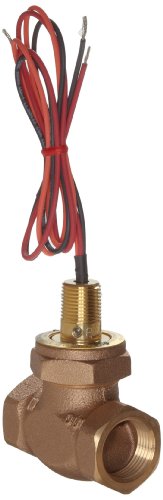

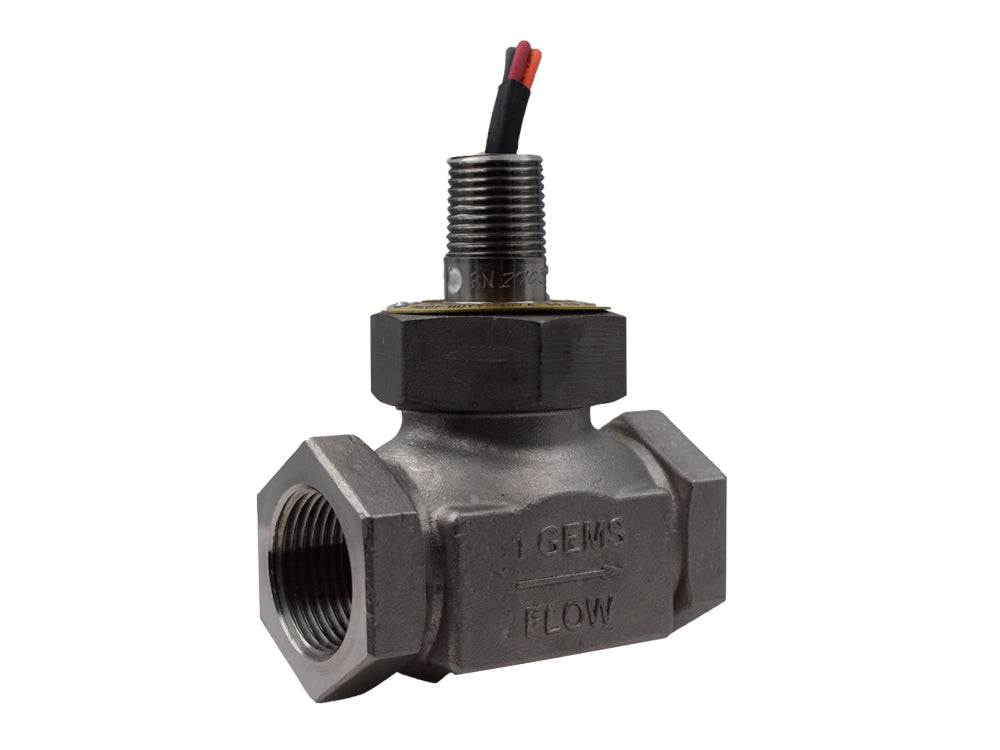

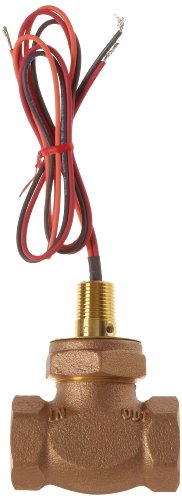

Gems Sensors 27051 fs200 Flow Switch 0.5 GPM

Product Description

The GEMS SENSORS 27051 FS200 series flow switch offers accurate flow detection with 1% repeatability. Its durable construction delivers long-life reliability in either water or oil. Generous flow paths keep pressure drop low. This switch is ideal for detection of improper flow rates in high volume lubrication, cooling or process systems.

• Accurate flow detection with 1% repeatability
• Durable bronze construction
• Low pressure drop

Product Highlights

The GEMS SENSORS 27051 flow switch is suitable for monitoring flow rates in cooling, lubrication, and process systems. It features a 1" FNPT connection, SPDT contact configuration, and a bronze body.

Product Information

Standard Information

• Brand: GEMS SENSORS
• Manufacturer Part Number: 27051
• Country of Origin: United States

Technical Specifications

• Series/Model: Series FS-200
• Connection Size: 1 IN FNPT
• Flow Rate: 0.5 GPM
• Contact Configuration: SPDT
• Contact Rating: 20 VA
• Pressure Rating: 300 - 500 PSI
• Temperature Rating: -20 To 300 DEG F
• Material: Bronze
• Industry Standards: CSA Certified, CE, UL Listed, FM Approved
• Other Physical Dimension: 1-25/32 IN Hex
• Additional Specifications: Plus/Minus 10% Set Point Accuracy
• Wetted Materials: Bronze, PTFE,316 Stainless Steel, Viton, Ceramic
• Electrical Termination: 18 AWG, 24"-26" long Polymeric Leads
• Switch Type: SPDT (20VA)
• Set Point Differential (Maximum): 0.15
• Recommended Filtration: 150 micron
• Sensor Type: Shuttle Type
• Model: FS-200
• Body Material: Bronze
• Flow Setting: 0.50 GPM
• Flow Setting Range: 0-1.0 GPM
• Set Point Accuracy: ±10%
• Set Point Differential: 15%
• Port Size: 1" NPT Female
• Maximum Pressure: 400 psi
• Minimum Temperature: -20°F
• Maximum Temperature: 300°F
• Manufacturer Part Number: 27051
• Manufacturer: Gems Sensors & Controls
• Product Series: FS-200
• Description: FS-200 Series - General Purpose, Straight-Through Flow Path
• Accuracy: 10 %
• Approvals: CE, CSA, FM, UL
• Primary brand: Gems Sensors & Controls
• Main function: Sensor (Flow)
• Product series / family name: FS-200 series
• Functions: Fixed straight-through shuttle-type flow path sensor / switch
• Flow: 0.5gallons/min (GPM)
• Pressure: 27.6bar (37.8°C / 100°F) operating 55.2bar (37.8°C / 100°F) proof 400psig (37.8°C / 100°F) operating 800psig (37.8°C / 100°F) proof
• Temperature: -29°C...+148.9°C / -20°F...+300°F (process flow)
• Connection type: 1" NPT fluid / process connection
• Lead wires: Pre-wired bare end flying leads
• Cross-section: 18AWG wire
• Digital outputs: 1 x digital output (SPDT / NO/NC dry contact; 20VA rating)
• Measurement accuracy: +/-10% set point
• Net Width (mm): 82.6 mm
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE UL CSA FM RoHS
• Net width (in): 3-1/4 in
