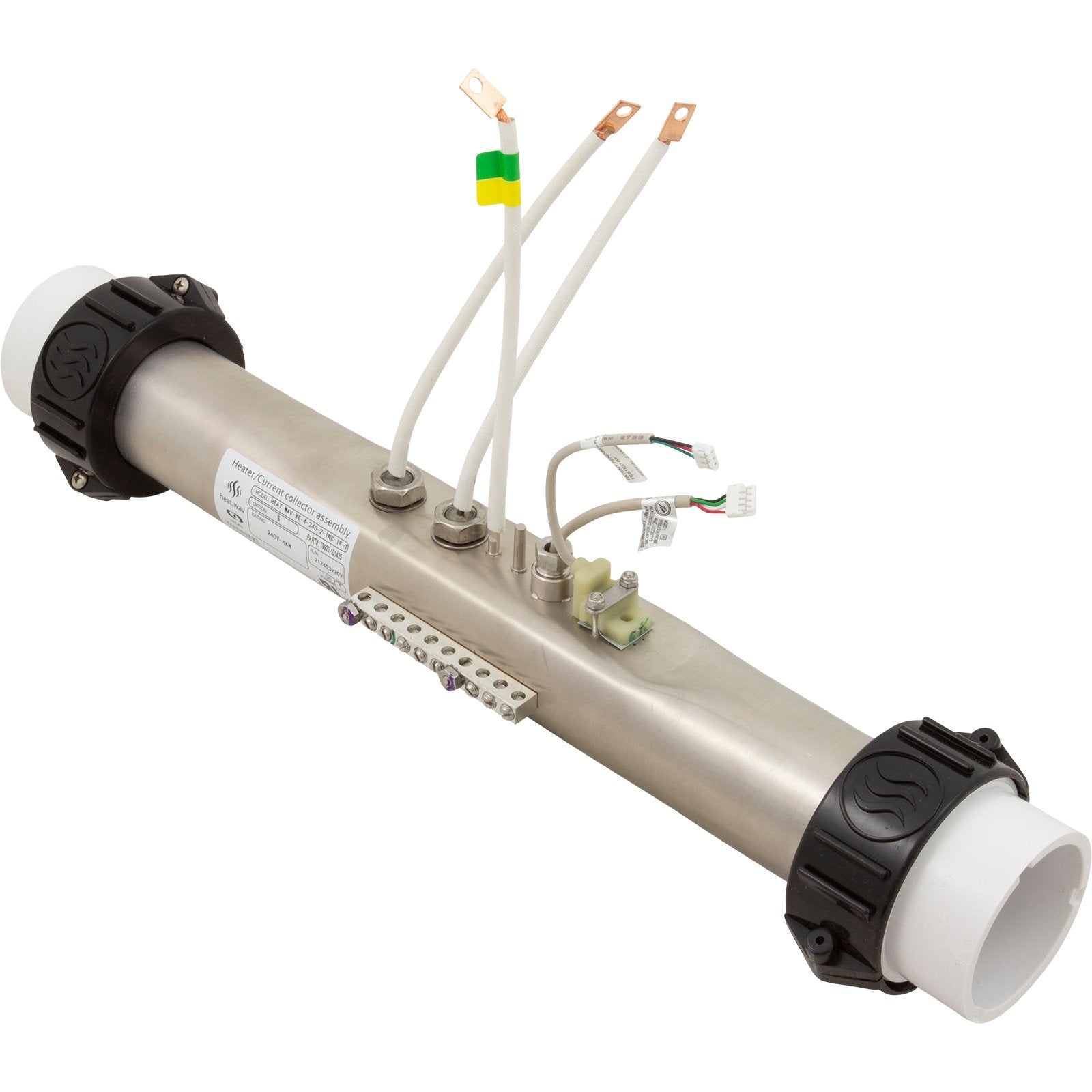

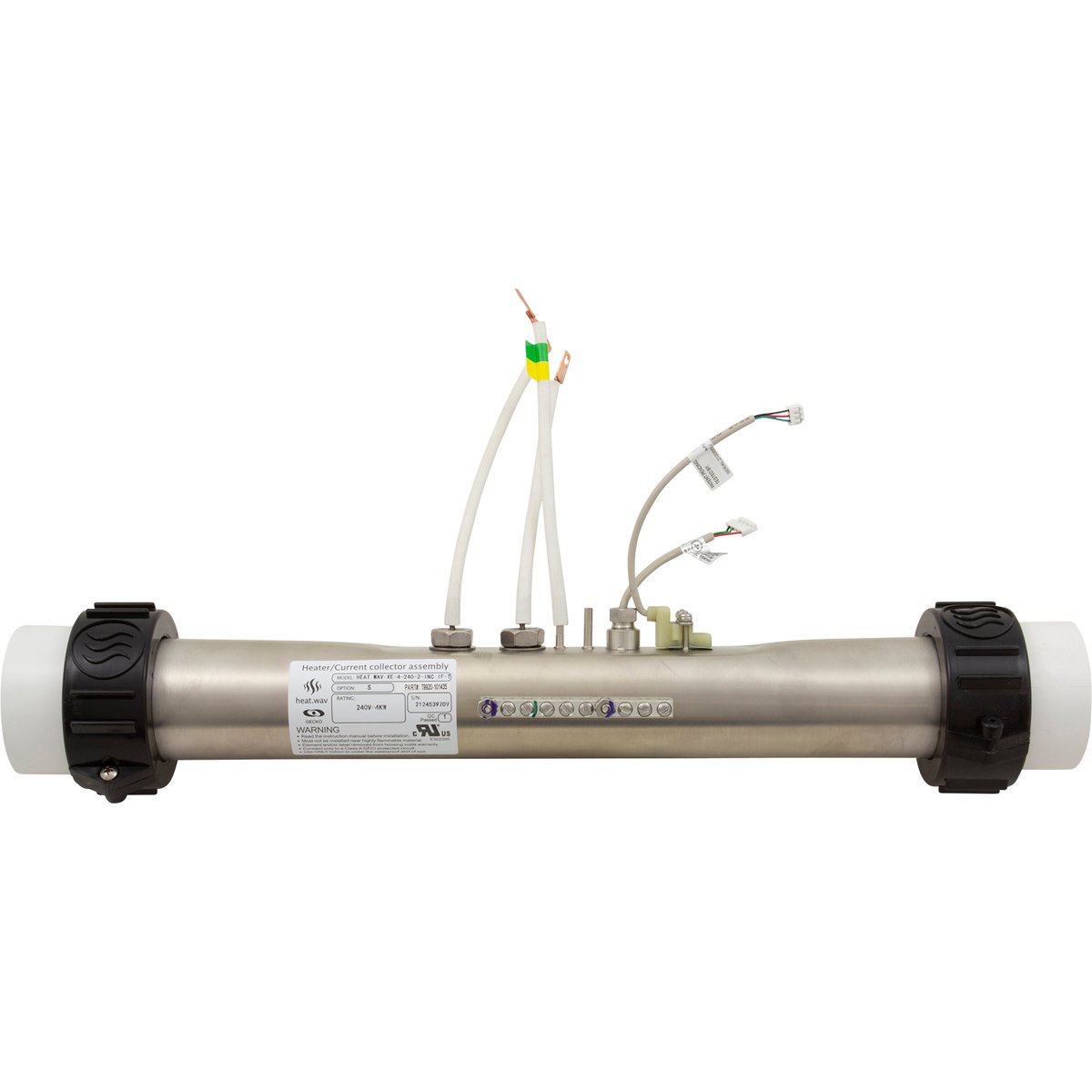

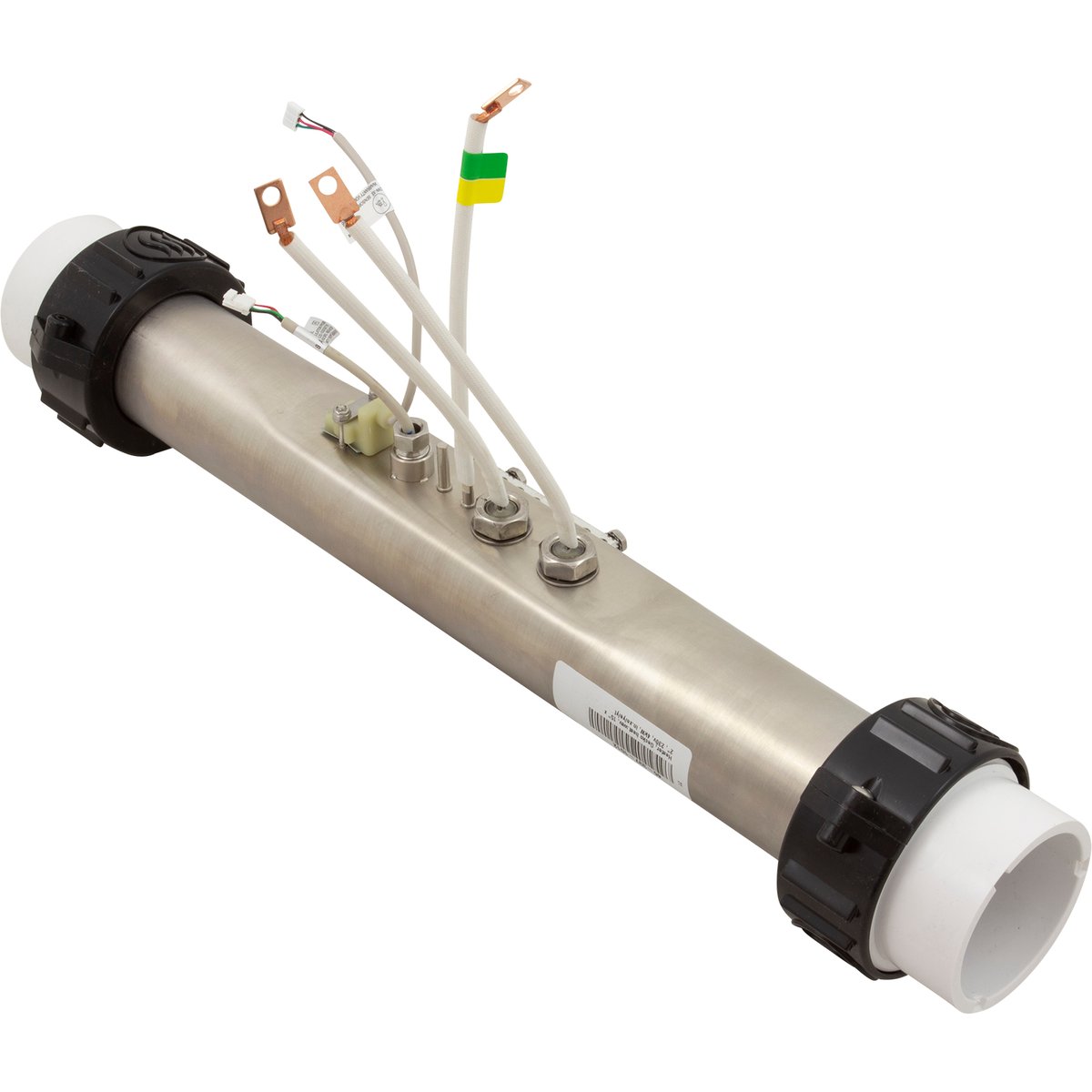

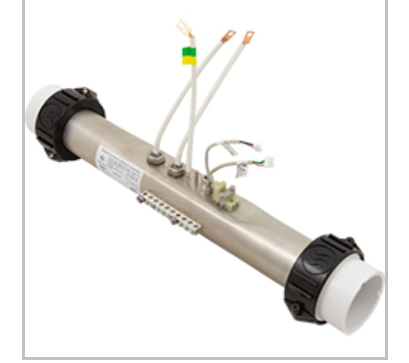

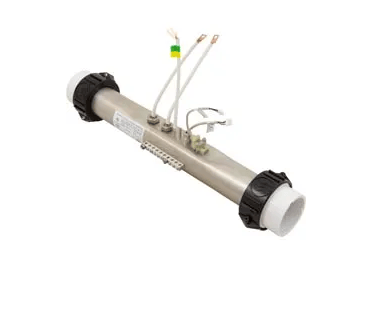

Gecko Alliance 9920-102283 XE & Y-Series Heater Assembly 4.0 kW (15 inches x 2 inches) 9920-101435

Product Description

Gecko Alliance 9920-102283 is a 230 V, 4.0 kW heater assembly for XE and Y-Series spa control systems. The unit uses a 15" x 2" heater tube in a straight housing with a fixed mounting stud and a lead end terminal located at 5-7/8". It is intended as a replacement heater element for pool and spa heating applications where the original heater has failed.

• 230 V input, 4.0 kW heating element with 15" length and 2" diameter heater tube
• Straight housing, fixed mounting stud, lead end terminal positioned at 5-7/8"
• Compatible with XE and Y-Series spa control systems; designed as a direct replacement heater assembly

Product Highlights

230 V, 4.0 kW spa heater assembly; 15" x 2" tube; fixed mounting stud; XE & Y-Series compatible.

Product Information

Standard Information

• Brand: GECKO ALLIANCE
• Manufacturer Part Number: 9920-102283
• Country of Origin: United States

Technical Specifications

• Brand: Gecko Alliance
• Manufacturer: Gecko Alliance
• MPN: 9920-102283
• Model/Series: XE & Y-Series
• Compatibility: XE & Y-Series; IN.XE, IN.YE, IN.YT
• Type: Heater assembly (pool and spa)
• Input Voltage: 230 V
• Power: 4.0 kW
• Heater tube (length x diameter): 15" x 2"
• Heater Length: 15"
• Plumbing Size / Heater Diameter: 2"
• Housing Configuration: Straight
• Mounting Stud Type: Fixed
• Lead End Terminal Location: 5-7/8"
• Threaded Tap Orientation: None
• Sensor Stud Orientation: None
• Weight: 3.47 lbs
• Dimensions: 19.5" L x 3.75" W x 4" D
• UPC: 612192917112
• Country of Origin: United States
• Alternate Part Numbers: 9920-101435; T9920-101435; 46-337-1012; 46-337-1020; 6089-HOR; 434137; 9735-334; 9917-101272; GKT9920101435; T9920101435
