GECKO 91698400 Aqua Flo XP3 4 HP Pump Impeller

Product Description

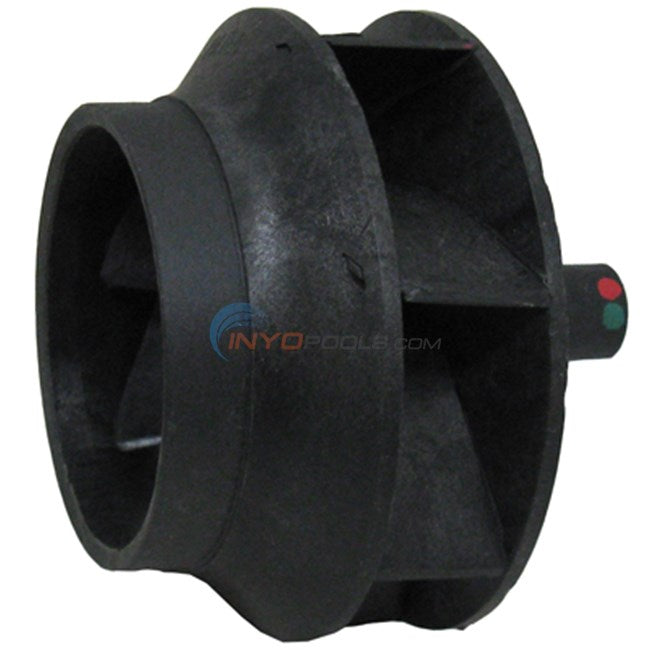

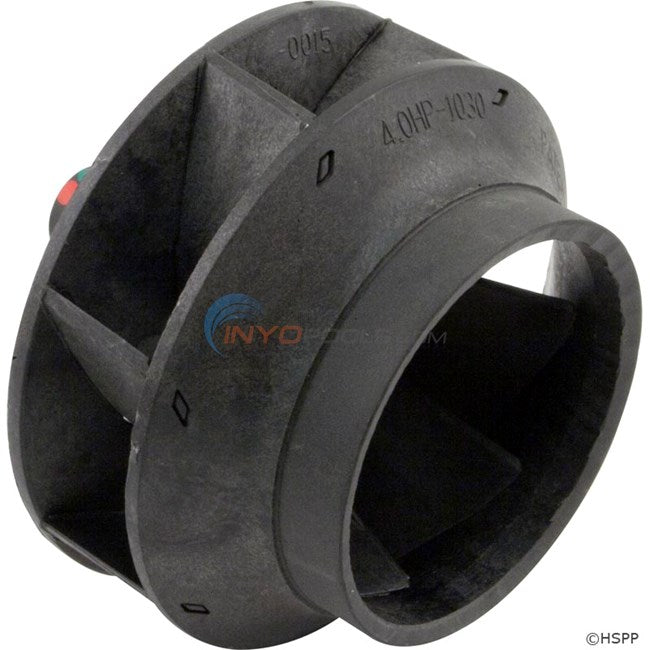

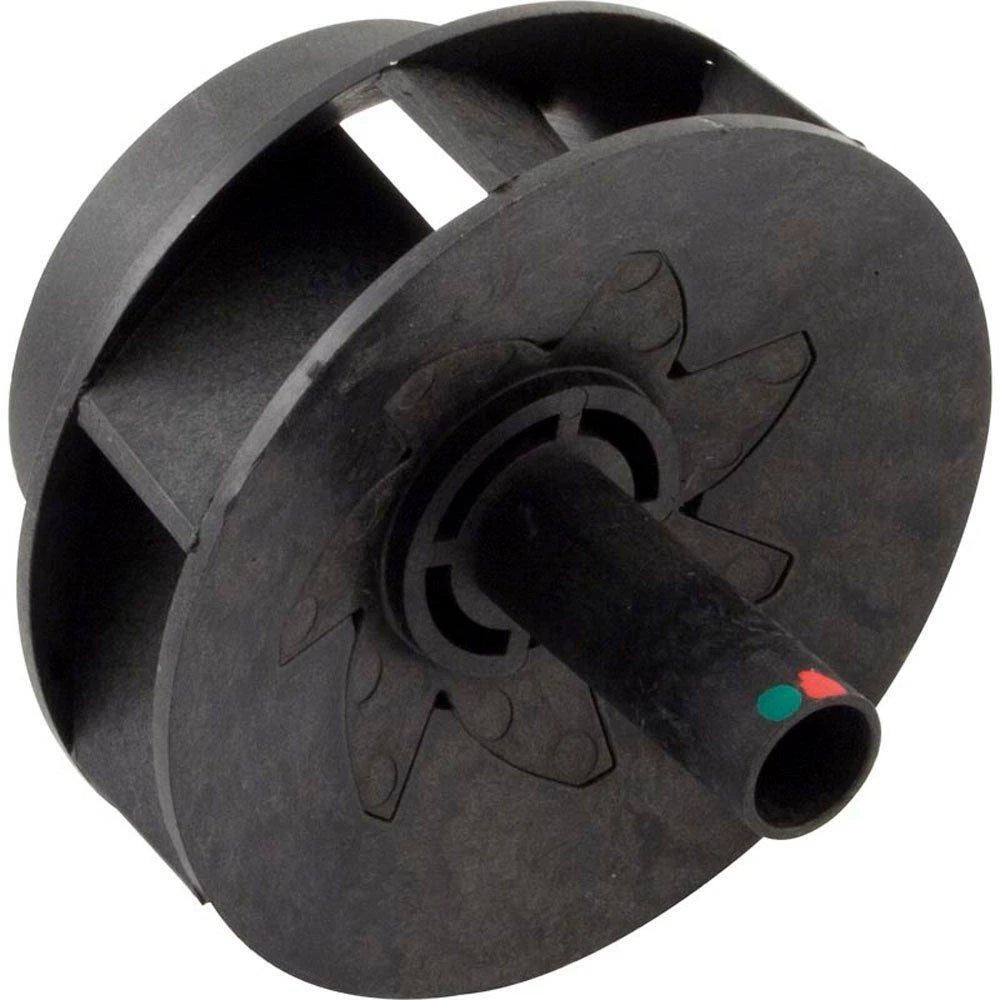

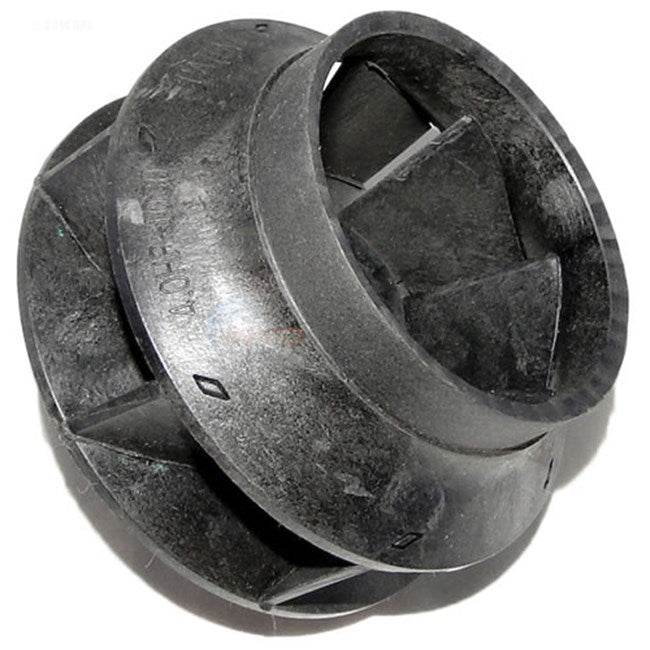

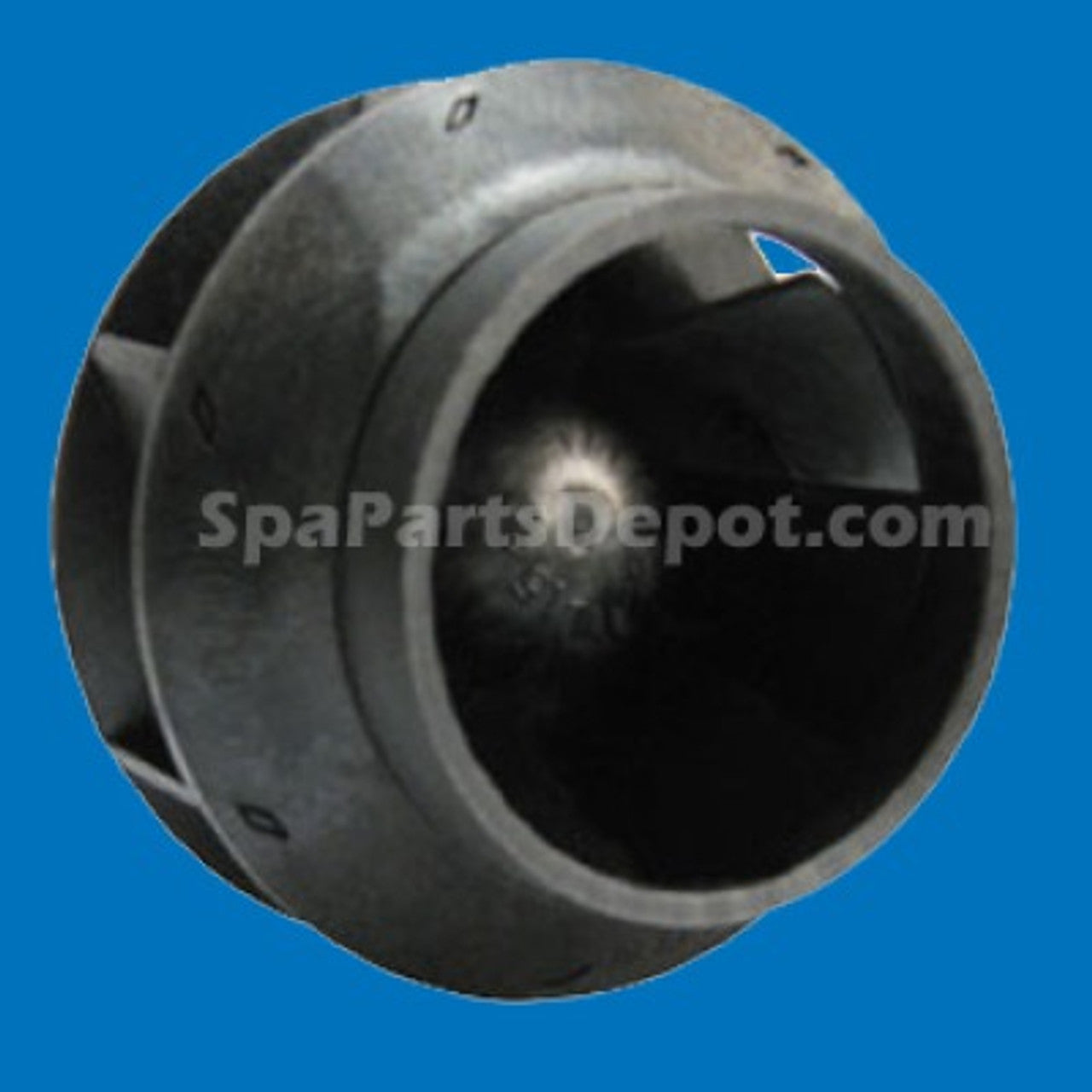

The GECKO 91698400 is an impeller made for pool pumps, specifically suited for the Aqua Flo XP3 4 HP model. This component is crafted from black plastic and features a closed-face design with seven vanes. It has an exterior diameter of three and eleven-sixteenths inches and a total length of three and one-quarter inches. The impeller is fitted with a shaft that measures five-eighths of an inch in diameter and one and five-eighths inches in length. The inlet opening has an exterior diameter of two and five-eighths inches and an interior diameter of two and five-sixteenths inches. This part is compatible with Gecko Flo-Master Center Discharge and XP3 56-Frame pumps, which makes it essential for water movement within the pump system.

• Manufactured from durable black plastic.
• Includes a five-eighths diameter shaft for secure attachment to the motor.
• Designed for use with four HP Aqua Flo XP3 pool pumps.

Product Highlights

The impeller promotes efficient water flow and is vital for maintaining pool pump performance.

Product Information

Standard Information

• Brand: GECKO
• Type: Pool Pump Accessory

Technical Specifications

• SKU: 91698400
• Weight: 1.00 lbs
• Part #: 5121-72
• Manufacturer Code: 91698400
• Dimensions: 3.65 L x 3.65 W x 3.35 D
• Alternate Part #'s: 91698400, 35-402-1034, AF91698400
• Material: Black Plastic
• Type: Closed or Open Face Closed
• Number of Vanes: 7
• Outside Diameter: 3-11/16
• Total Length: 3-1/4
• Outside Thickness at Edge: 1-1/16
• Inside Thickness at Edge: 13/16
• Shaft Length: 1-5/8
• Shaft Diameter: 5/8
• Inlet Opening Outside Diameter: 2-5/8
• Inlet Opening Inside Diameter: 2-5/16
• Horsepower: 4 HP
