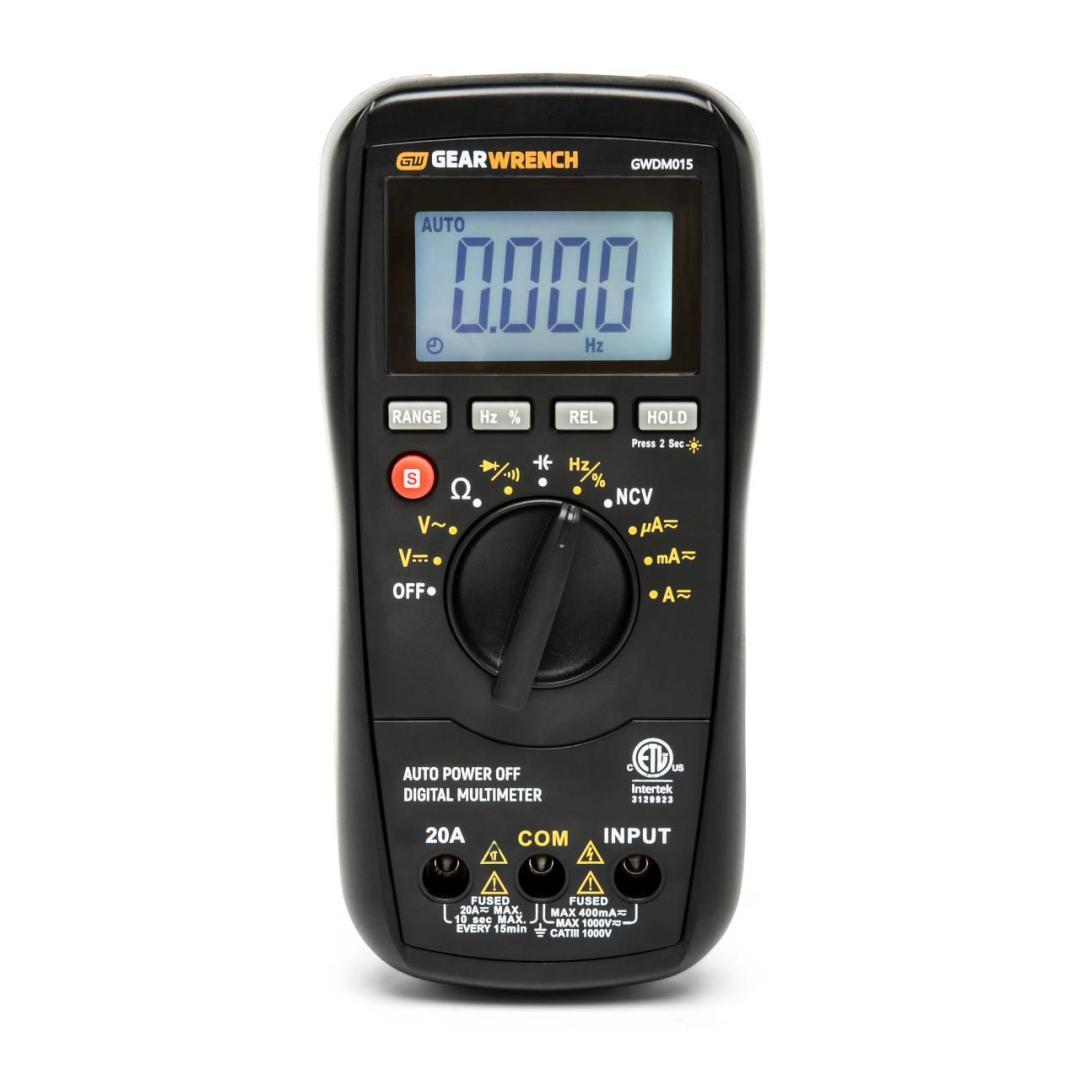

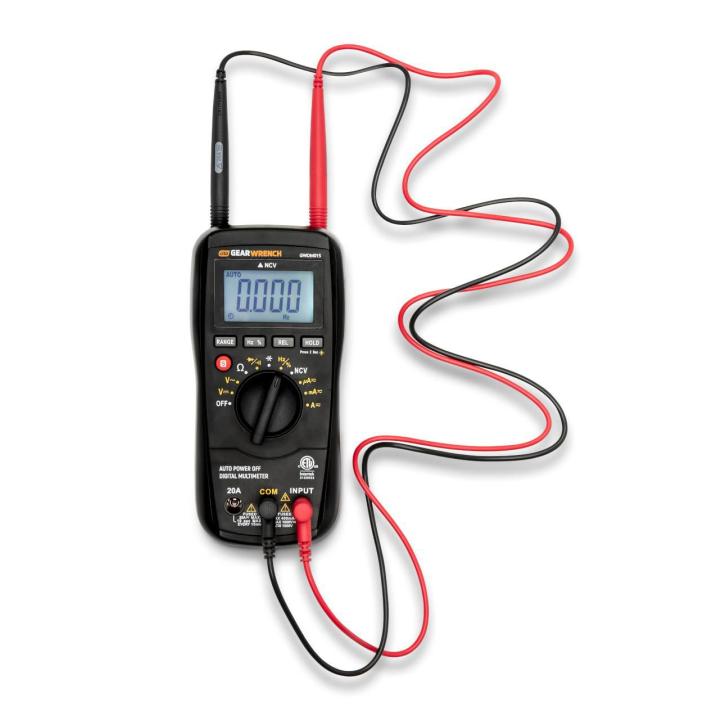

Gearwrench GWDM015 Technicians True RMS Digital Multimeter 1000V 20A (4000-Count)

Product Description

The GEARWRENCH GWDM015 is a technicians-grade True RMS digital multimeter that measures AC/DC voltage to 1000 V and AC/DC current to 20 A for troubleshooting electrical systems and vehicle electronics. The meter provides resistance readings to 40 MΩ, continuity, diode test, capacitance, frequency, non-contact AC voltage detection, and duty cycle, and displays results on a 4000-count backlit LCD. It is battery powered and includes safety-rated test leads and a carrying case.

• Measurement ranges: AC/DC voltage up to 1000 V, AC/DC current up to 20 A, resistance up to 40 MΩ; true RMS for accurate AC readings
• Functions and usability: continuity, diode, capacitance, frequency, NCV, duty cycle, relative/min/max, data hold, auto-ranging, 4000-count backlit LCD, test lead holders and kickstand
• Safety and accessories: overload protection, over-range and low-battery indicators, includes carrying case, CAT III/CAT IV safety test leads, capacitance adapter, and one 9V battery

Product Highlights

True RMS measurements; 1000 V / 20 A ranges; 4000-count backlit LCD; includes safety-rated leads, capacitance adapter, and carrying case

Product Information

Standard Information

• Brand: GEARWRENCH
• Manufacturer Part Number: GWDM015
• Country of Origin: China

Technical Specifications

• Brand: GEARWRENCH
• MPN: GWDM015
• Type: Multimeter
• Voltage Measurement Range: AC/DC up to 1000 V
• Current Measurement Range: AC/DC up to 20 A
• Resistance Measurement Range: Up to 40 MΩ
• Display: 4000-count LCD with backlight
• Count: 4000
• Functions: Continuity; diode test; capacitance; frequency; non-contact AC voltage detection; duty cycle; relative measurement; min/max; data hold; auto-ranging; automatic power-off
• Test Lead Length: 42.5 in
• Battery Type: 9V (1 included)
• Power Source: Battery powered
• Overload Protection: Yes
• Over-range Indicator: Yes
• Low Battery Indicator: Yes
• Automatic Shut Off: Yes
• Data Hold: Yes
• Dimensions (L x W x H): 7.25 x 3.5 x 2.25 in
• Weight: 1.7 lb

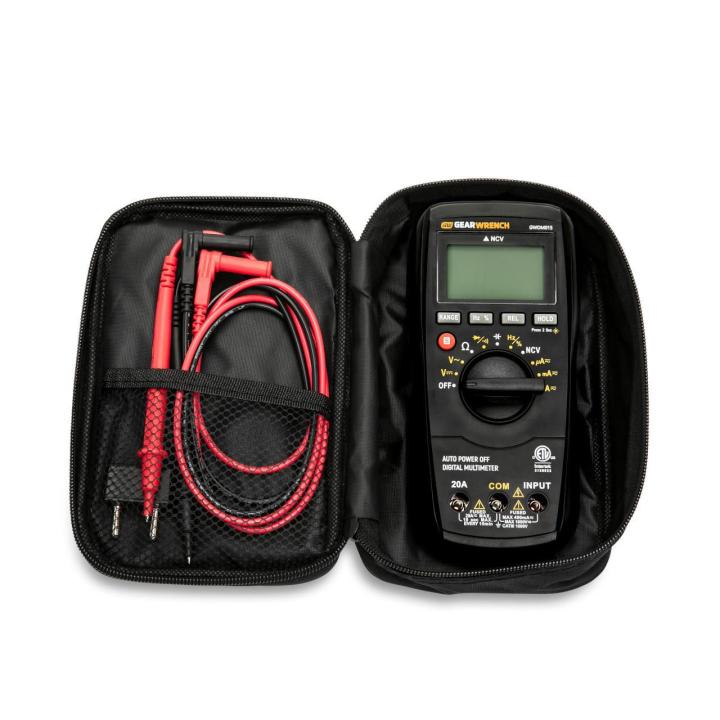

• Included Accessories: Carrying case; CAT III/CAT IV safety test leads; capacitance adapter; user manual; (1) 9V battery
• Certifications: CSA, UL
