Product Description

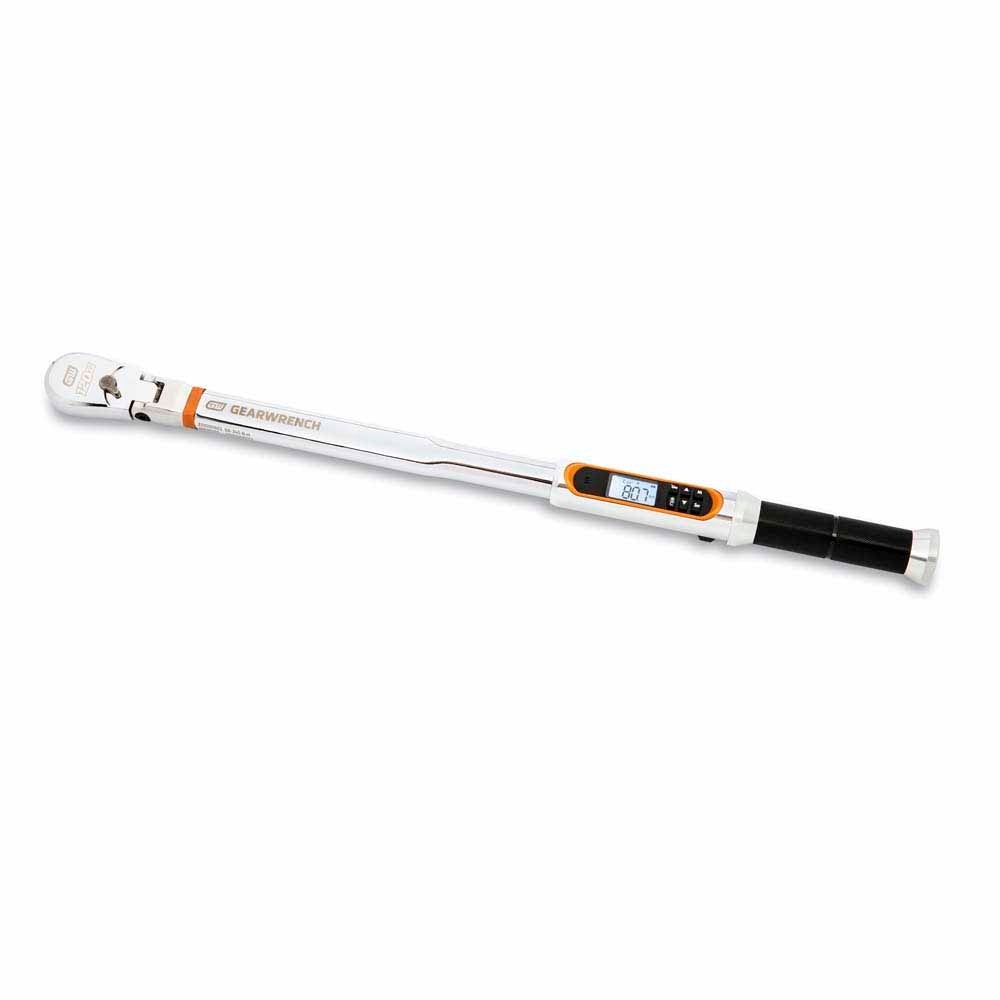

The GEARWRENCH 85196 Electronic Torque Wrench features a 1/2 inch drive size and provides precise torque measurements from 25 to 250 ft-lb (34 to 340 N-m). This tool is designed for accurate fastener tightening, offering both clockwise and counterclockwise rotation. It includes a buzzer and LCD screen alert system to indicate when the target torque is reached, ensuring precise application in various tasks. The wrench has a flexible head and a ratcheting mechanism for enhanced accessibility.
- Precise torque range of 25 to 250 ft-lb (34 to 340 N-m) with multiple measurement units.

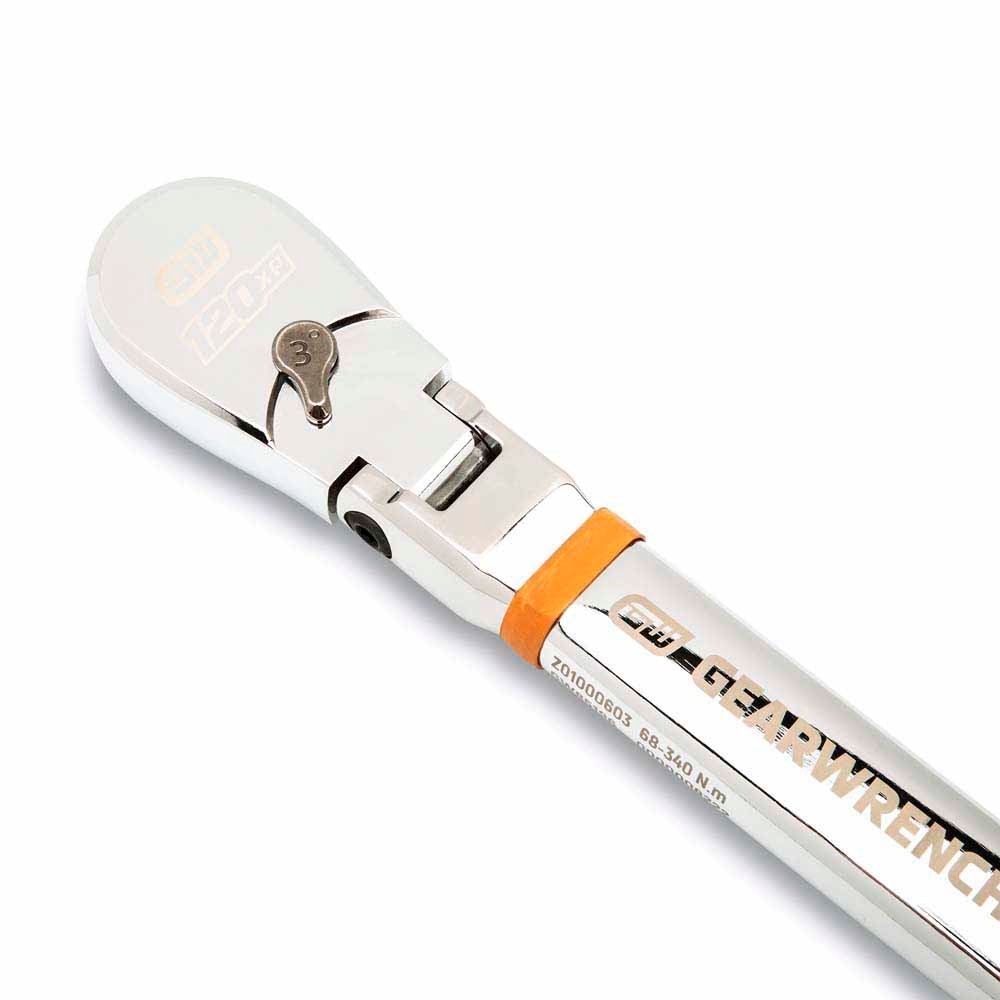

- Features a flexible head and ratcheting mechanism for improved access and versatility.

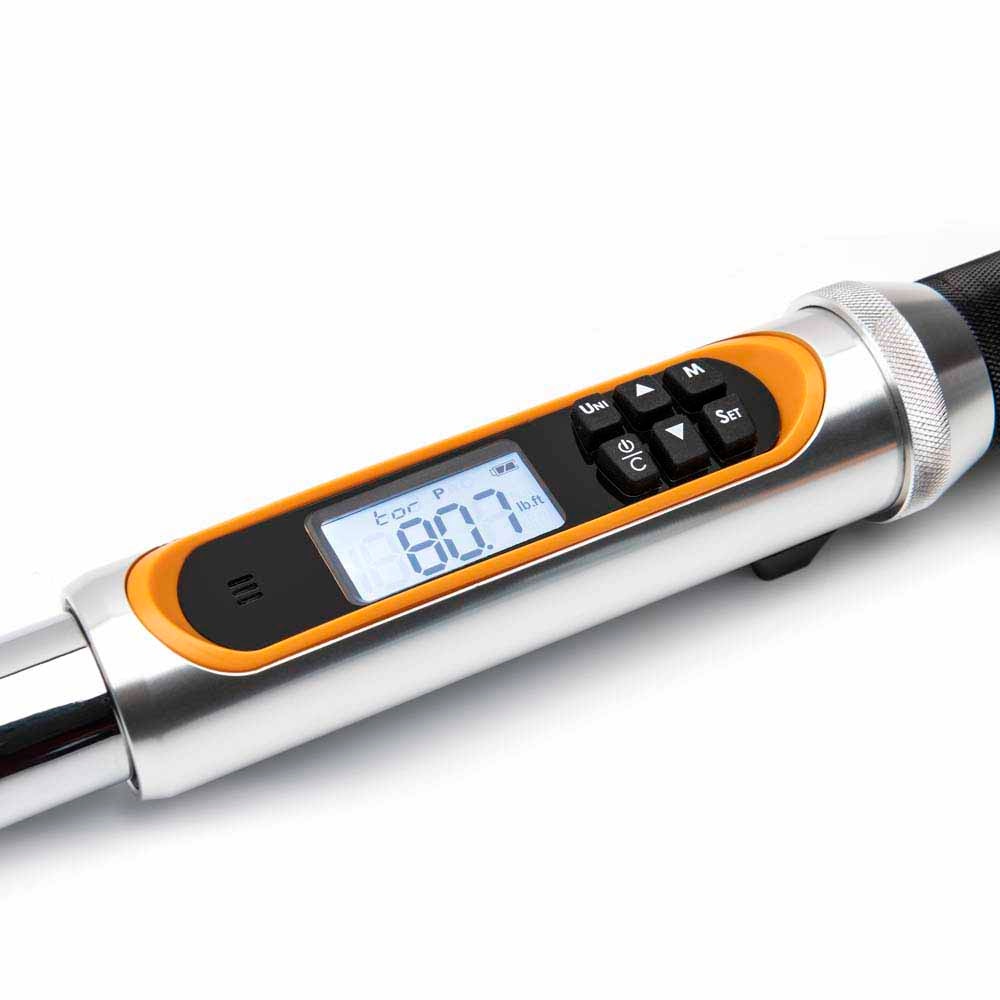

- Equipped with a buzzer and LCD screen alert for clear indication of target torque.
Product Highlights
This electronic torque wrench provides accurate fastener tightening with digital alerts and a flexible head for various applications.
Product Information
Standard Information
-
Brand: GEARWRENCH
-
Manufacturer Part Number: 85196
-
Country of Origin: Taiwan
Technical Specifications
-
MPN: 85196
-
Brand: GEARWRENCH
-
Type: Electronic
-
Tool Type: Torque Wrench
-
Drive Size: 1/2 inch
-
Torque Graduation: 0.100 N m
-
Head Style: Teardrop Ratchet
-
Certification: NonAerospace
-
Maximum Torque: 250.00 ft lbs, 340.000 N m
-
Minimum Torque: 25.00 ft lbs, 34.000 N m
-
Overall Length: 23.7000 in
-
Finish: Chrome
-
Weight: 2.9 lb
-
Material: Alloy Steel
-
Rotation Direction: Clockwise and Counterclockwise
-
Standards Compliance: ASME B107.10 B107.12 B107.28 B107.300
-
Ratcheting: Yes
-
Handle Type: Knurled
-
Overall Width: 1 3/4 in
-
Angle Settings: 3 Degrees
-
Torque Adjustability: Factory Set
-
Torque Measurement Units: ft-lb; in-lb; m-kg; N-m; kg-cm
-
Indicators: Buzzer, LCD Screen Alert
-
Calibration Certificate: Yes
-
Country of Origin: Taiwan, Province of China
-
Non Sparking: No
-
End Style: swivel
-
Measurement Standard: SAE (Inch)
-
Manufacturer: Apex Tool Group
-
Torque Accuracy: +/-2% CW, +/-3% CCW
-
Angle Accuracy: +/-1%
-
Tooth Count: 120
-
Battery Type: AA
-
Alternate Scale Increments: 0.1 Nm
-
Drive Type: Square
-
Head Length: 2.65 in
-
Head Thickness: 0.74 in
-
Head Width: 1.75 in
-

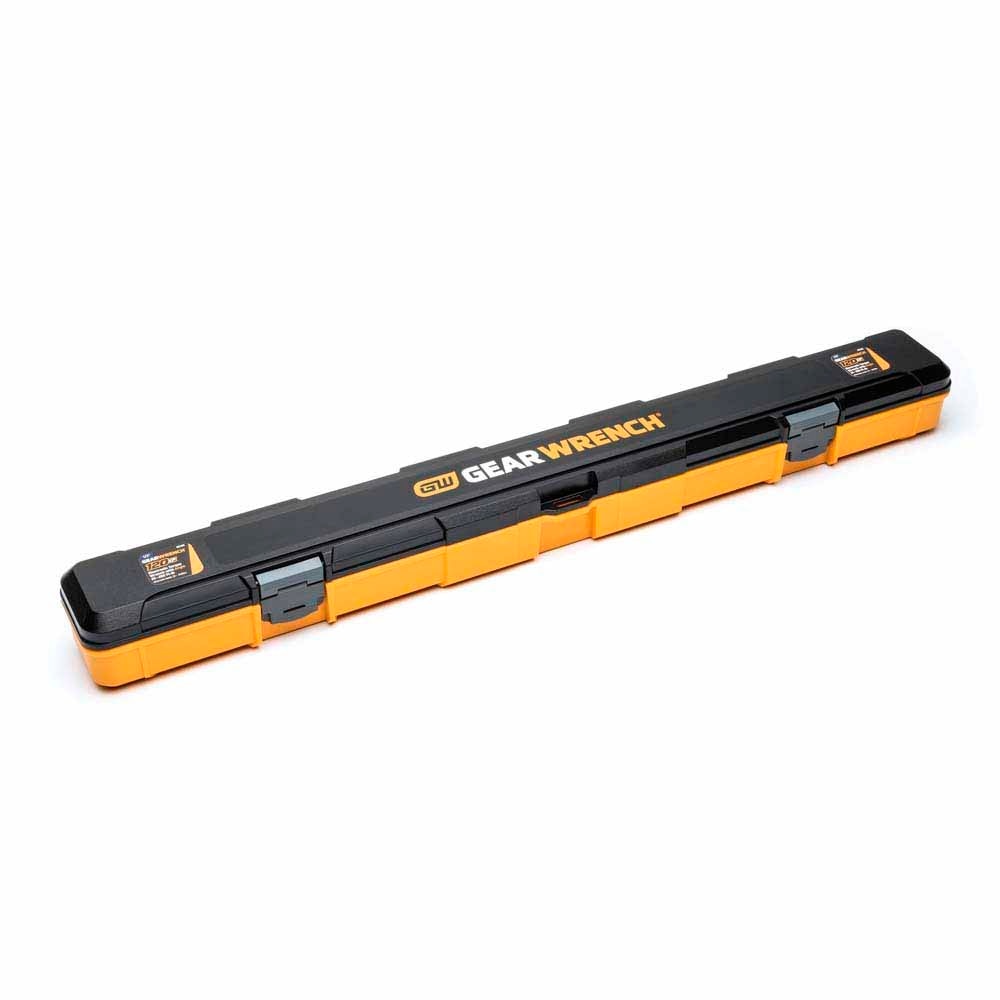

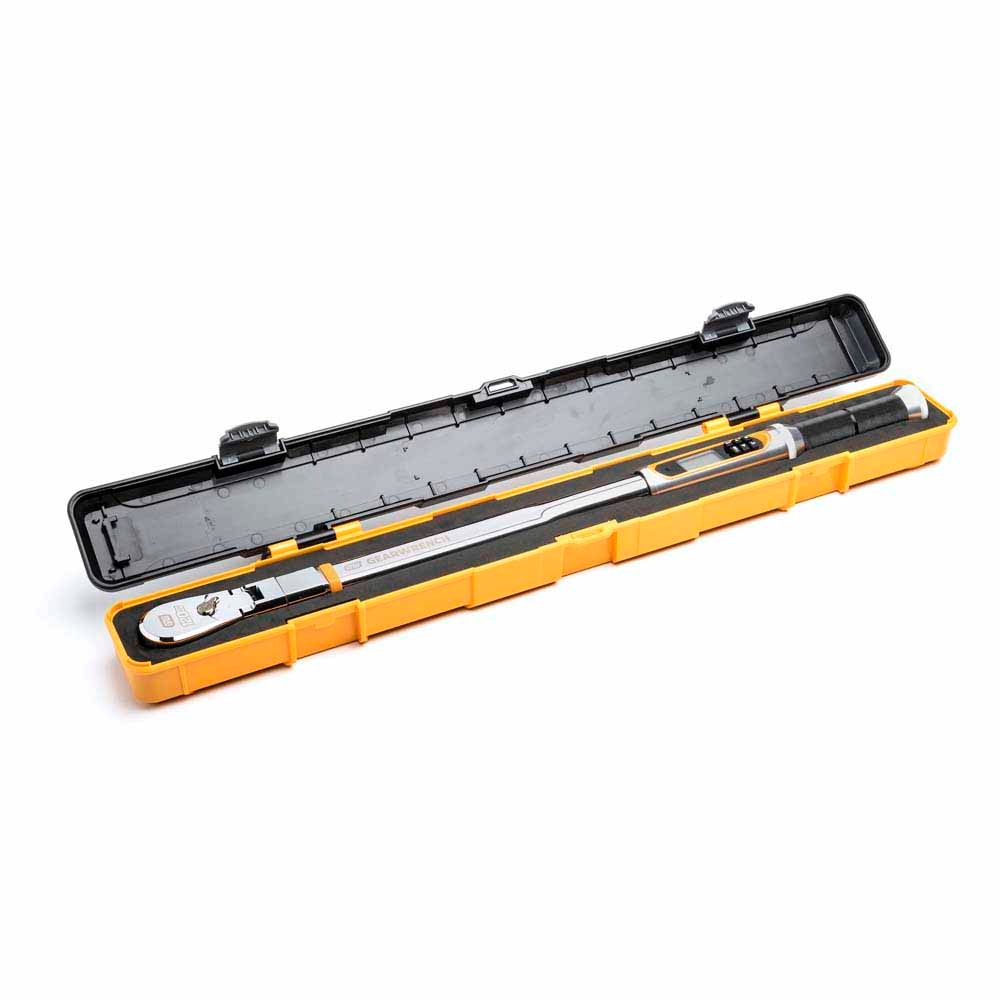

Included Storage: Injection Molded Case with Removable Lid and EVA Foam Insert
-
Number of Batteries: 2
-
Primary Scale Increments: 0.1 ft/lb
-
Family Name: 120XP™
-
Angle Range: 5° - 999° Angle
-
Overall Height: 1.75 in
-
Tether Ready: No
-
Torque Range In-Lbs: 301 - 3010 in/lb
-
Certified: No
-
Torque Range Cm-Kg: 350 - 3500 kg/cm
