Gearwrench 85181CERT 120xp wr trq micro 1/2dr 30-250ft/lb

Product Description

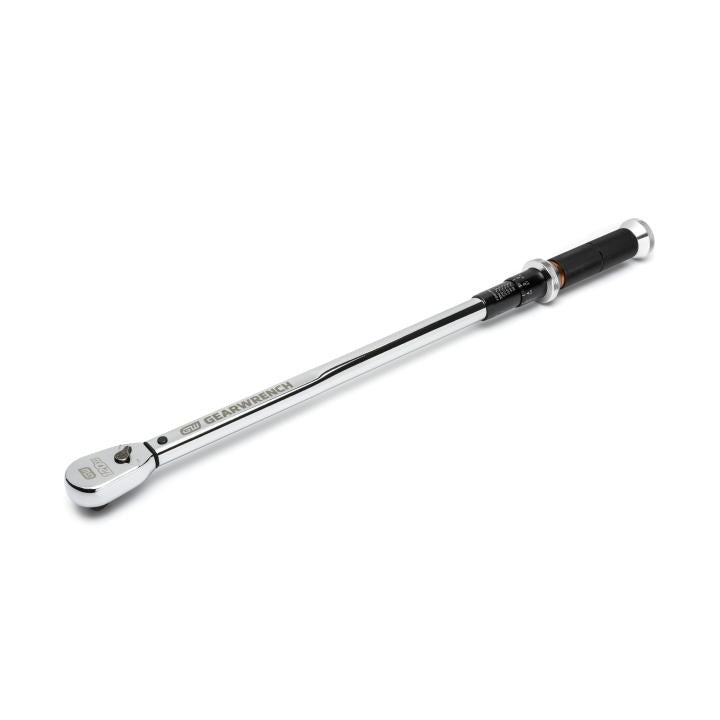

The GEARWRENCH 85181CERT 120XP WR TRQ MICRO 1/2DR 30-250FT/LB features a 120XP head providing a 3 degree ratcheting arc to turn fasteners in narrow spaces. Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance. Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution.

• 120XP head provides a 3 degree ratcheting arc to turn fasteners in narrow spaces
• Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
• Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution

Product Highlights

The wrench has a low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines. Scale markings are highly visible and easy to read.

Product Information

Standard Information

• Brand: GEARWRENCH
• Manufacturer Part Number: 85181CERT
• Country of Origin: TW

Technical Specifications

• Type: Micrometer
• Drive Size: 1/2 in
• Graduation: 1 in lbs
• Head Style: TearDrop
• Maximum Torque: 352.6 Nm
• Minimum Torque: 54.2 Nm
• Overall Length: 24.875 in
• Finish: Full Polish Chrome
• Material: Alloy Steel
• Quantity: 1 EA/EA
• Torque [Max]: 250
• Torque [Min]: 30
• Drive Tang Size: 1/2 in
• Knurled: Yes
• Flexible: No
• ANSI Specification: Exceeds on Load and Cycle
• Head Width: 1.75 in

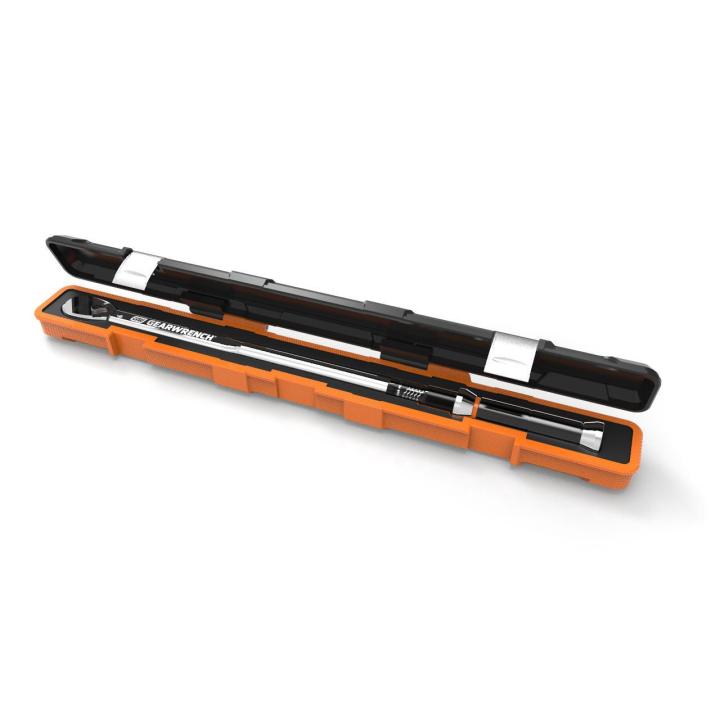

• Included Storage: Injection Molded Case with Removable Lid and Foam Insert
• Overall Width: 1.75 in
• Overall Height: 1.75 in
• Head Length: 2.562 in
• Tooth Count: 120
• ASME Specification: B107.300
• Maximum Torque (Primary Scale): 250 ft/lb
• Minimum Torque (Primary Scale): 30 ft/lb
• Head Thickness: 0.75 in
• Alt Scale Increments: 2.7 Nm
• Torque Accuracy (20-100% of Full Range): 3% Clockwise
• Certified: Yes
• Primary Scale Increments: 2 ft/lb
• Head Thickness Less Tang: 0.75 in
• Drive Type: Square
• Secondary Scale Increments: 2.7 N-m
• Primary Scale Range: 30 ft-lb to 250 ft-lb
• Number of Geared Teeth: 120
• Secondary Scale Range: 54.2 N-m to 352.6 N-m
• Primary Scale Minimum Torque: 30 ft-lb
• Extended Data Testing: Yes
• Nonsparking: No
• Handle Type: Knurled
• Handle Material: Aluminum
• Torque Measurement Type: Foot-Pound, Newton-Meter
• Rotation: Clockwise
• Ratcheting: Yes
• Standards: ASME B107.300, ANSI
• Visual/Audible Indicators: None
• Calibration Certificate Included: Yes
• Torque Increments: 2 ft-lb, 2.7 N-m
• Insulated: No
• Torque Range: 30 ft-lb to 250 ft-lb
• Counterclockwise Accuracy: +/- 4%
• Handle Color: Black
• Torque Limiting Mechanism: Click-Type
• Dual Scale: Yes
• Primary Scale Maximum Torque: 250 ft-lb
• Torque Setting: Adjustable
• Secondary Scale Maximum Torque: 353 N-m
• Torque Adjustability: Adjustable
• Corrosion Resistant: No
• Clockwise Accuracy: +/- 3%
• Head Movement: Fixed
• Secondary Scale Minimum Torque: 54 N-m
• Repair Kit: 81339P
