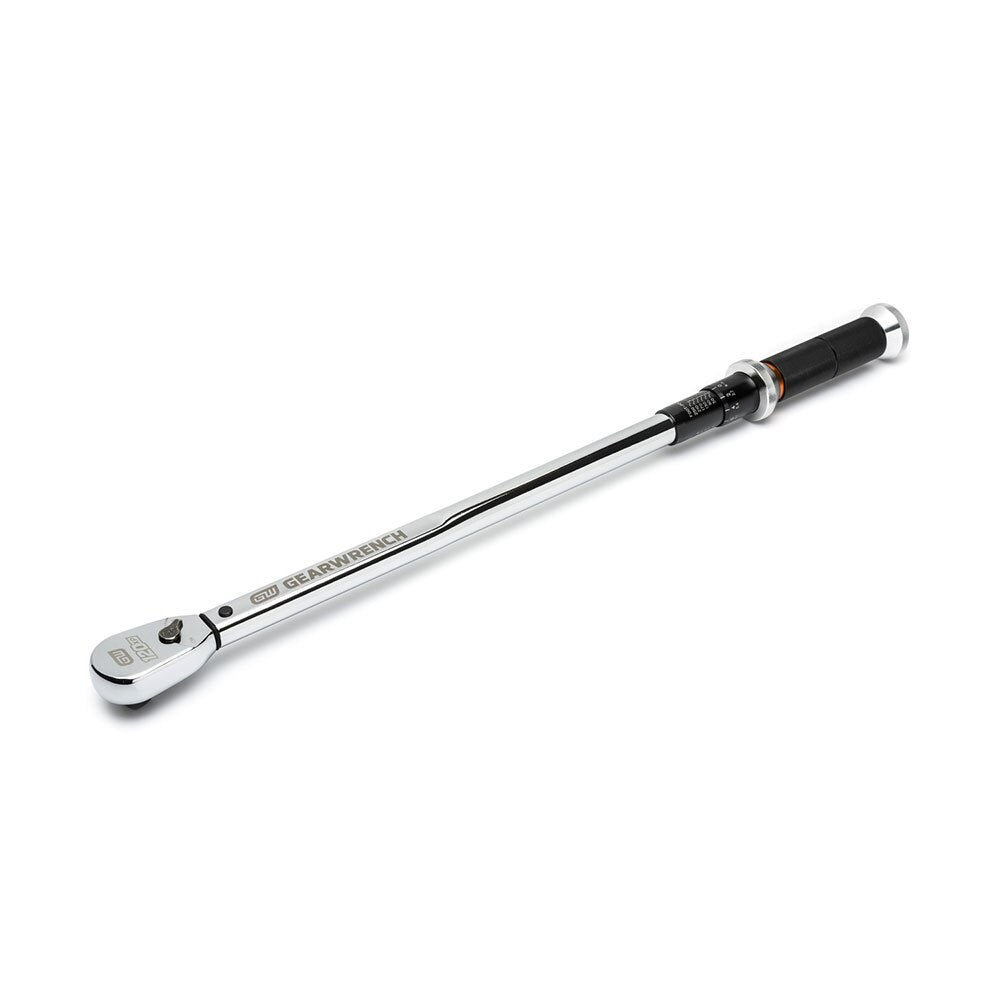

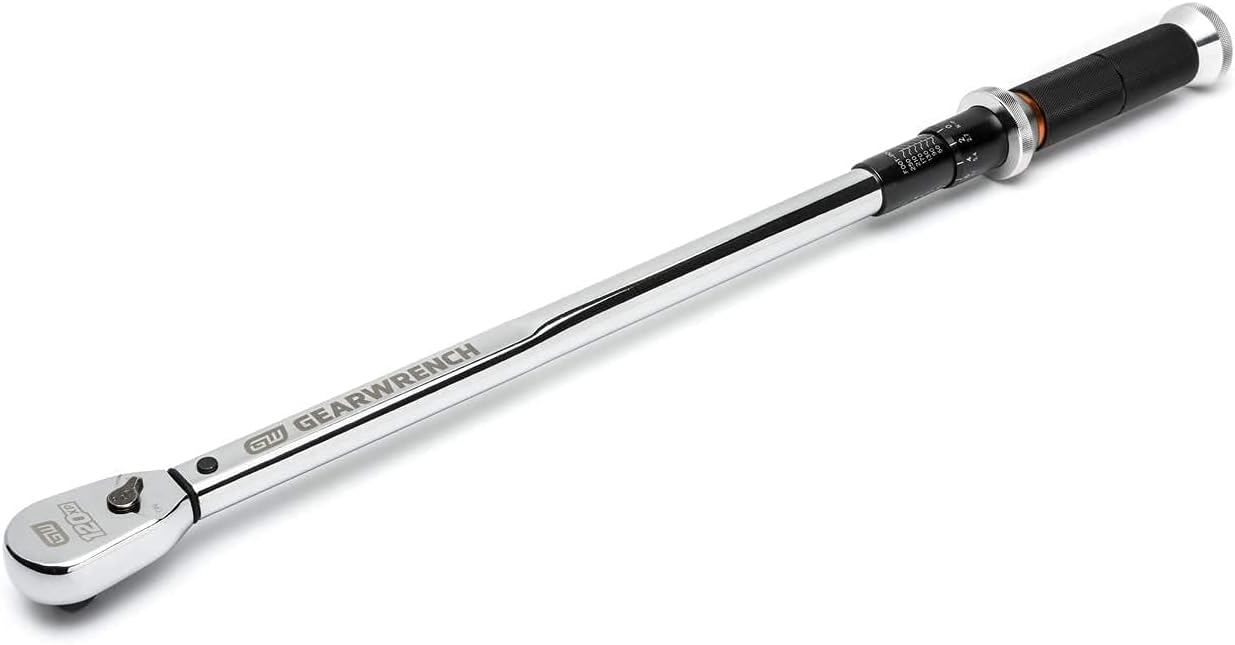

Gearwrench 85181 1/2 inches Drive 120XP Micrometer Torque Wrench, 30-250 ft/lbs.

Product Description

The GEARWRENCH 85181 1/2" Drive 120XP Micrometer Torque Wrench offers accurate measurements in both foot pounds and newton meters. It features an alloy steel body with a primary scale range of 30 ft-lb to 250 ft-lb, and secondary scale range of 54.2 N-m to 352.6 N-m. The drive size is 1/2 in and overall length is 25 in.

• Head provides a 3° ratcheting arc
• Accurate in clockwise direction +/- 3% in upper 80% of the range
• Enclosed ratchet head design for extreme resistance to dirt infiltration

Product Highlights

This micrometer torque wrench will be your go-to tool for any job that requires precision measurements.

Product Information

Standard Information

• Brand: GEARWRENCH
• Manufacturer Part Number: 85181
• Country of Origin: CN

Technical Specifications

• Color: Multi
• Style: 30-250 FT/LB
• Usage: Professional
• Finish: Polished Chrome
• Material: Alloy Steel
• Head Style: Fixed Square, Flex
• Finish Type: Polished
• Operation Mode: Mechanical
• Measurement System: Inch, Metric
• Batteries Included?: No
• Batteries Required?: No
• Included Components: (1) "1/2" Drive 120XP Micrometer Torque Wrench 30-250 ft/lbs."
• Type: Micrometer Torque Wrench
• Drive Size: 1/2 in
• Graduation: 2.700 N m
• Certification: NonAerospace
• Maximum Torque: 250.00 ft lbs, 352.600 N m
• Minimum Torque: 30.00 ft lbs, 54.200 N m
• Overall Length: 25 in
• Accuracy: +/-3%
• Drive Type: Square
• Torque [Max]: 250 ft lb
• Torque [Min]: 30 ft lb
• Torque Increment: 2 ft lb
• Torque Setting: 30 to 250 ft lb
• Item [Specifications]: Micrometer Torque Wrnch 120XP(TM),1/2"Dr
• Includes [Specifications]: (1) Case
• Rotation [Specifications]: Clockwise
• Insulated [Specifications]: No
• Standards [Specifications]: ASME B107.300, ANSI
• Dual Scale [Specifications]: Yes
• Ratcheting [Specifications]: Yes
• Handle Type [Specifications]: Knurled Grip
• Nonsparking [Specifications]: No
• Handle Color [Specifications]: Black
• Torque Range [Specifications]: 30 ft-lb to 250 ft-lb
• Head Movement [Specifications]: Fixed
• Overall Width [Specifications]: 1 3/4 in
• Min. Arc Swing [Specifications]: 3 Degrees
• Torque Adjustability [Specifications]: Adjustable
• Extended Data Testing [Specifications]: Yes
• Secondary Scale Range [Specifications]: 54.2 N-m to 352.6 N-m
• Number of Geared Teeth [Specifications]: 120
• Torque Measurement Type [Specifications]: Foot-Pound, Newton-Meter
• Primary Scale Increments [Specifications]: 2 ft-lb
• Counterclockwise Accuracy [Specifications]: +/- 4%
• Torque Limiting Mechanism [Specifications]: Click-Type
• Visual/Audible Indicators [Specifications]: None
• Secondary Scale Increments [Specifications]: 2.7 N-m
• Primary Scale Maximum Torque [Specifications]: 250 ft-lb
• Primary Scale Minimum Torque [Specifications]: 30 ft-lb
• Secondary Scale Maximum Torque [Specifications]: 353 N-m
• Secondary Scale Minimum Torque [Specifications]: 54 N-m
• Calibration Certificate Included [Specifications]: Yes
• Country of Origin (subject to change) [Specifications]: Taiwan, Province of China
• Drive Tang Size: 1/2 in
• Knurled: Yes
• Flexible: No
• ANSI Specification: Exceeds on Load and Cycle
• Head Width: 1.75 in

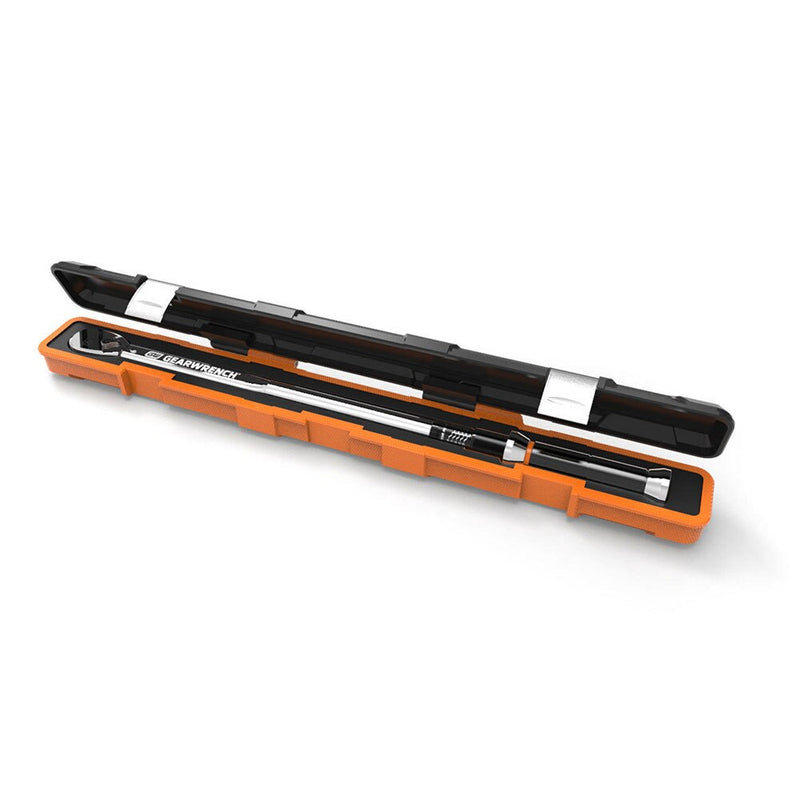

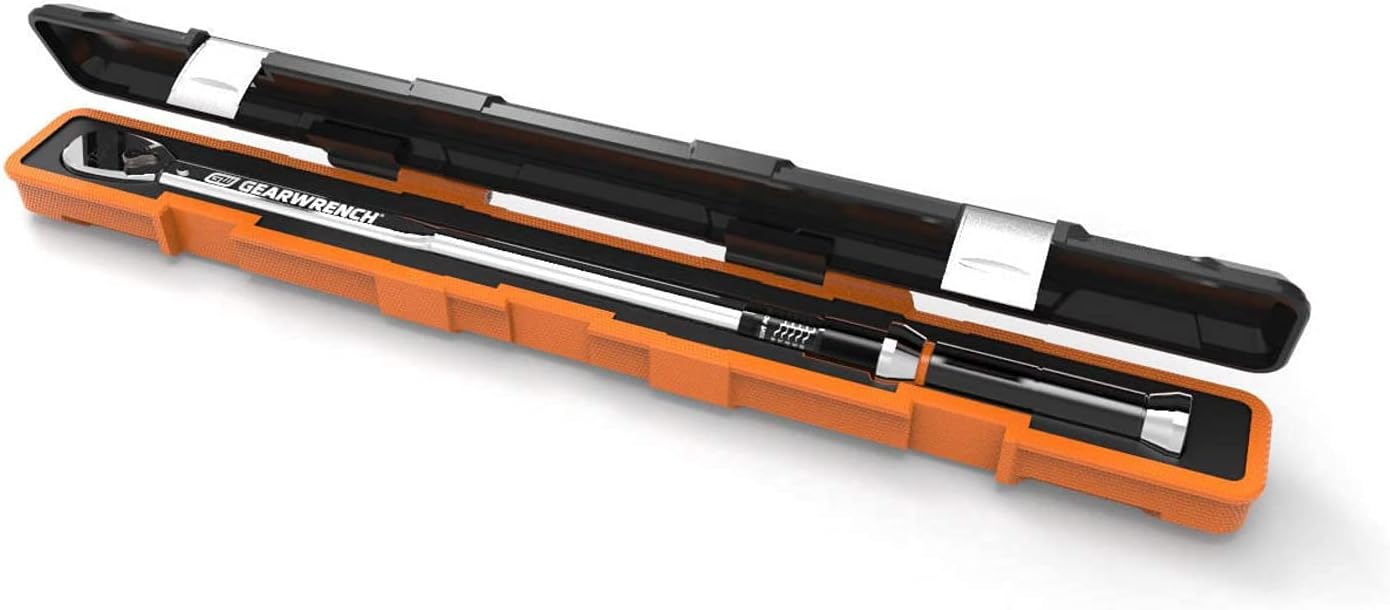

• Included Storage: Injection Molded Case with Removable Lid and Foam Insert
• Overall Height: 1.75 in
• UPC: 0099575851810
• Head Length: 2.562 in
• Tooth Count: 120
• ASME Specification: B107.300
• Maximum Torque (Primary Scale): 250 ft/lb
• Tether Ready: No
• Minimum Torque (Primary Scale): 30 ft/lb
• Head Thickness: 0.75 in
• Packaging: Sleeve
• Alt Scale Increments: 2.7 Nm
• Repair Kit: 81339P
• Torque Accuracy (20-100% of Full Range): 3% Clockwise
• Certified: No
• Maximum Torque (Alt Scale): 352.6 Nm
• Minimum Torque (Alt Scale): 54.2 Nm
• Primary Scale Increments: 2 ft/lb
• Head Thickness Less Tang: 0.75 in
• Model: 85181
• eBay Product ID (ePID): 17026521279
• Action: Ratcheting
• Number of Pieces: 1
• Features: Flex Head
• System of Measurement: Inch
• Item Length: 24.78in.
• Item Height: 1.75in.
• Item Width: 1.34in.
• Item Diameter: Wrench
• Item Weight: 3.75lbs.
• Specifications Met: ANSI Specified|ASME B107.300
