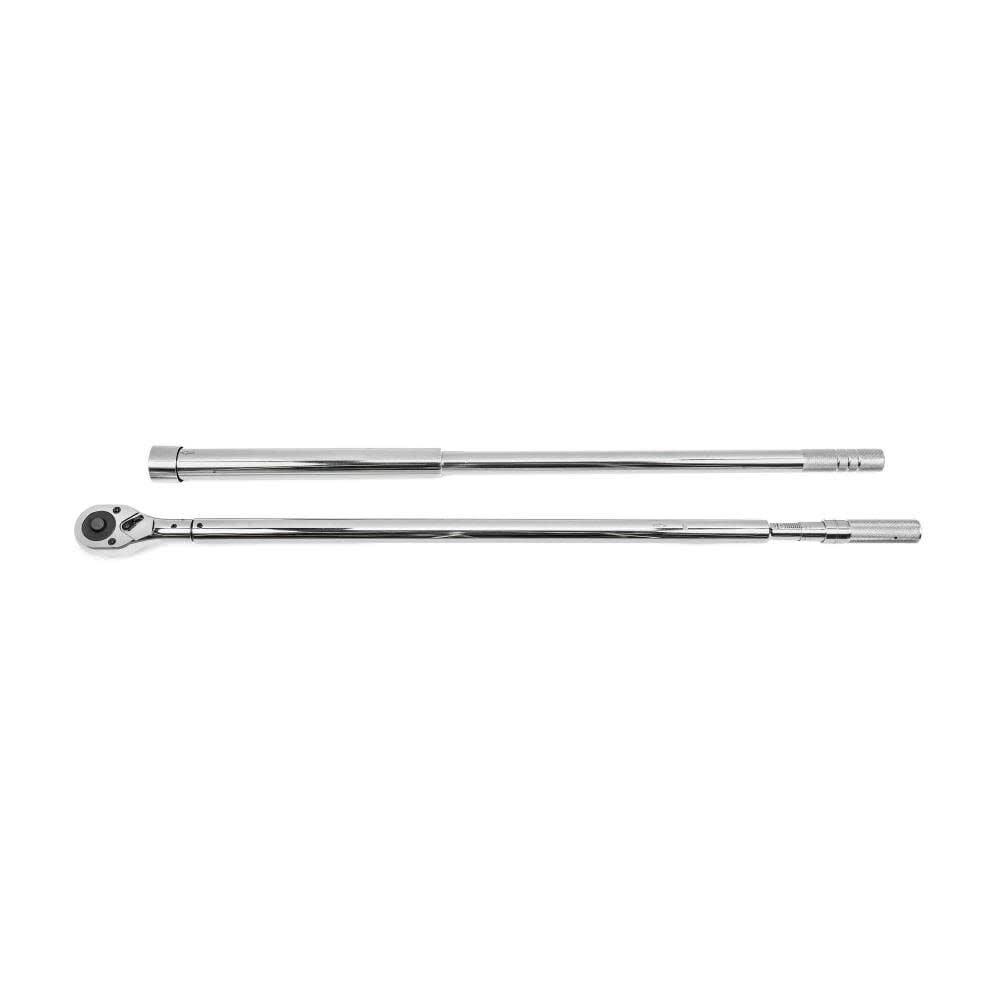

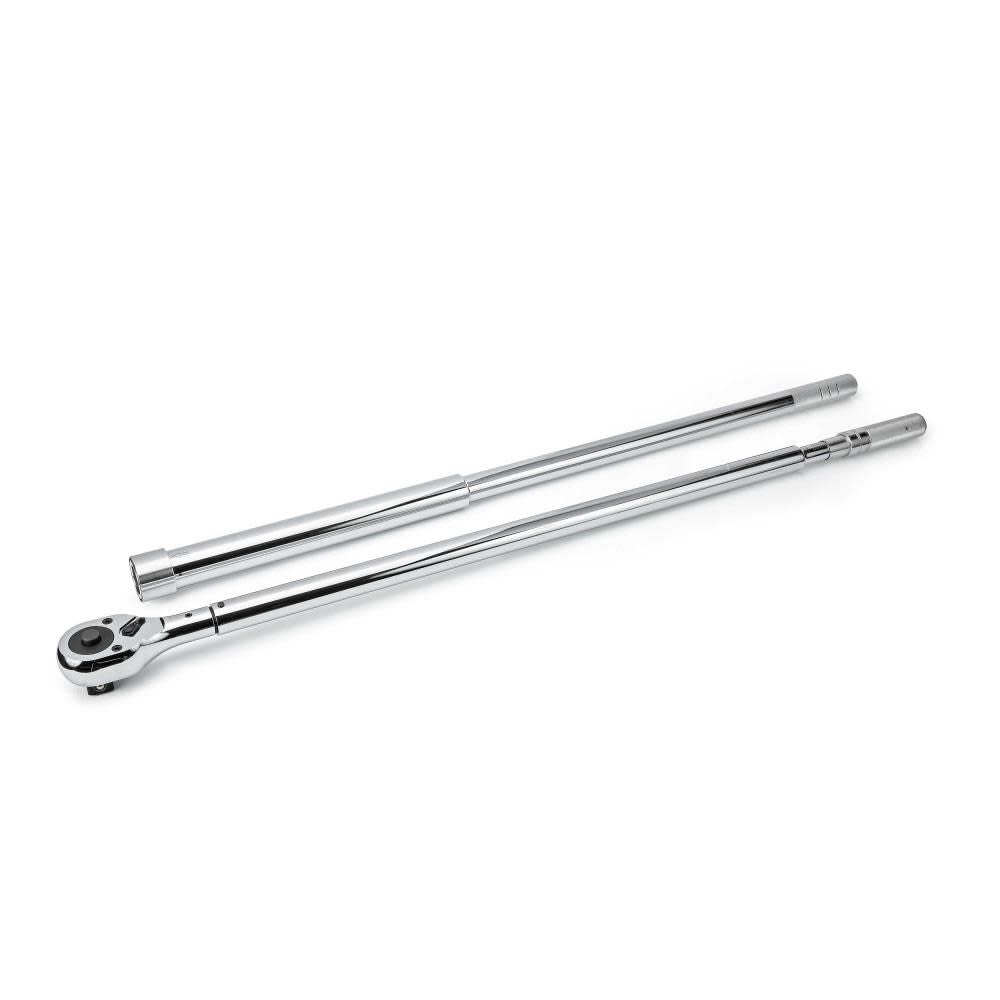

Gearwrench 85068 Micrometer Torque Wrench 200-1000 ft/lb

Product Description

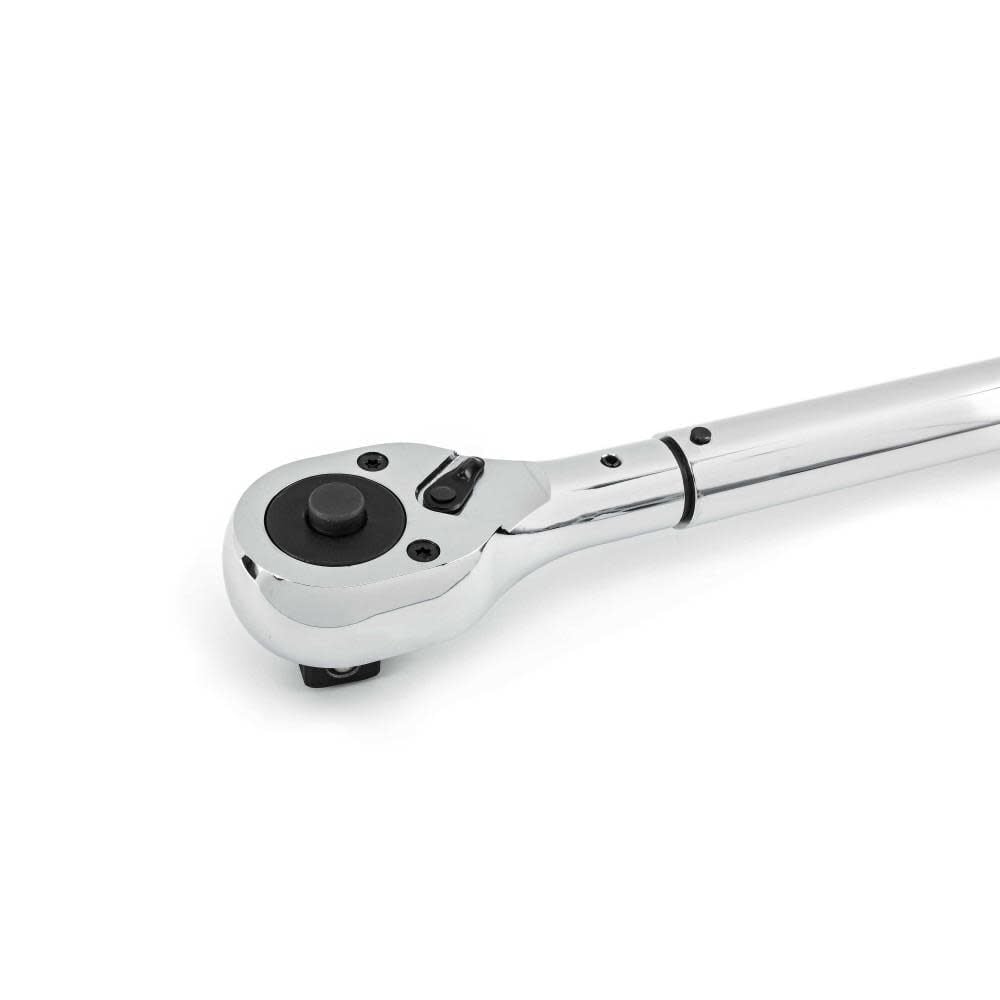

The GEARWRENCH 85068 micrometer torque wrench features a pull back adjustment collar and easy reading scale. The 1" drive torque wrench is easy to set up and made with all steel construction for durability. It has a 24-tooth teardrop shaped head with on/off switch for access in tight spaces.

• Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
• Scale markings are highly visible and easy to read
• Knurled aluminum handle lets you grip comfortably

Product Highlights

The GEARWRENCH micrometer torque wrench is durable and easy to use. It is made with steel construction and has a comfortable knurled aluminum handle.

Product Information

Standard Information

• Brand: GEARWRENCH
• Manufacturer Part Number: 85068
• Country of Origin: TW

Technical Specifications

• Brand: GEARWRENCH
• MPN: 85068
• UPC: 099575850684
• Accuracy: +/-3% Clockwise
• Drive Size [Nom]: 1 in
• Drive Type: Square
• Finish: Full Polish Chrome
• Material: Alloy Steel
• Overall Length [Nom]: 73 in
• Torque [Max]: 1000 ft7lb
• Torque [Min]: 200 ft7lb
• Torque Increment: 5 in
• Drive Tang Size: 1 in
• Knurled: Yes
• Flexible: No
• ANSI Specification: B107-300
• Overall Length: 73 in
• Head Width: 2.76 in
• Included Storage: Blow Mold Case
• Overall Width: 2.76 in
• Overall Height: 1.34 in
• Tooth Count: 24
• ASME Specification: B107-300
• Maximum Torque (Primary Scale): 1000 ft/lb
• Tether Ready: No
• Minimum Torque (Primary Scale): 200 ft/lb
• Head Thickness: 2.3 in
• Type: Micrometer
• Alt Scale Increments: 5 Nm
• Torque Accuracy (20-100% of Full Range): 1 3% Clockwise
• Certified: No
• Maximum Torque (Alt Scale): 1322 Nm
• Minimum Torque (Alt Scale): 305 Nm
• Primary Scale Increments: 5 ft/lb
• Head Thickness Less Tang: 1.34 in
• Batteries Required: No
• Flex Head Type: No
• Batteries Included: No
• VMRS Code: 053006055
• Handle Type: Barrel Grip
• Ratcheting: Yes
• Torque Wrench Type: Beam
• Rotation: Clockwise
• Drive Size: 1 in
• Torque Range: 1000
• Assembled Weight (lbs): 26.65
• California Proposition 65 Warning Required: No
• Country of Origin: Taiwan
• Maximum Torque (ft-lbs): 1000
• Maximum Torque (in-lbs): 12000
• Minimum Torque (in-lbs): 2400
• Package Contents: (1) 1" Drive Micrometer Torque Wrench 200-1000 ft/lbs.
• Product Condition: New
• Torque Increments: 5 Nm
• Wrench Style: Torque
