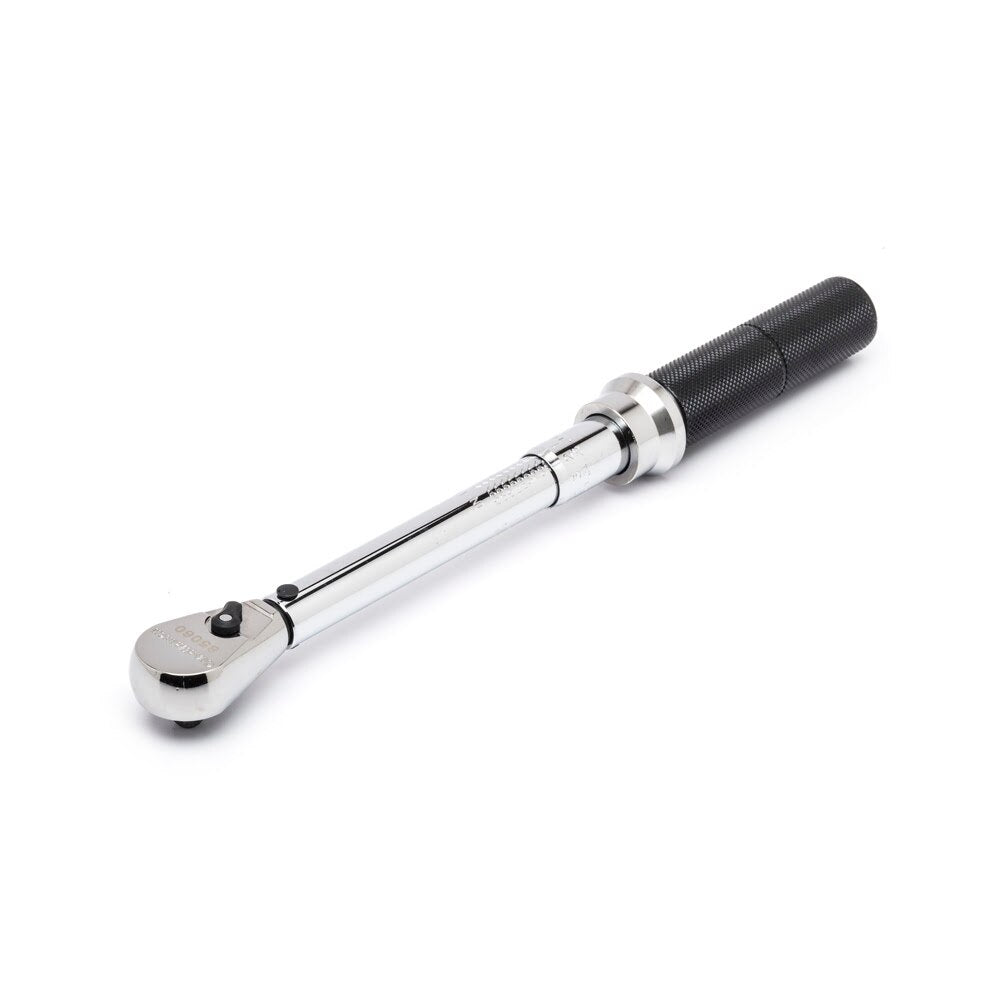

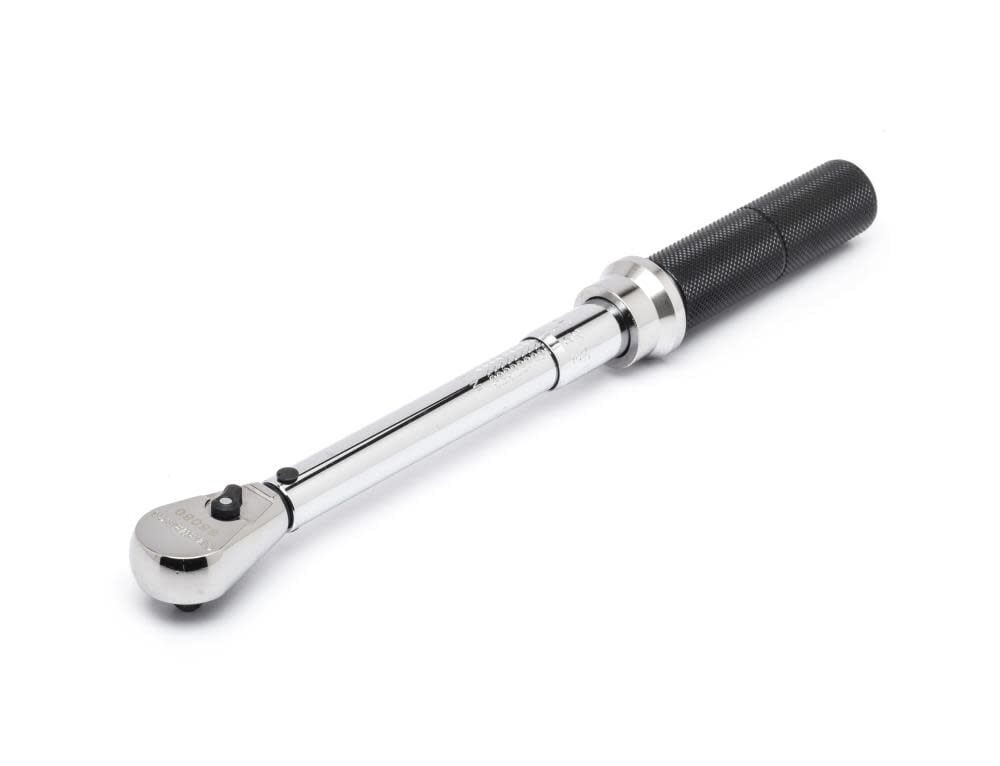

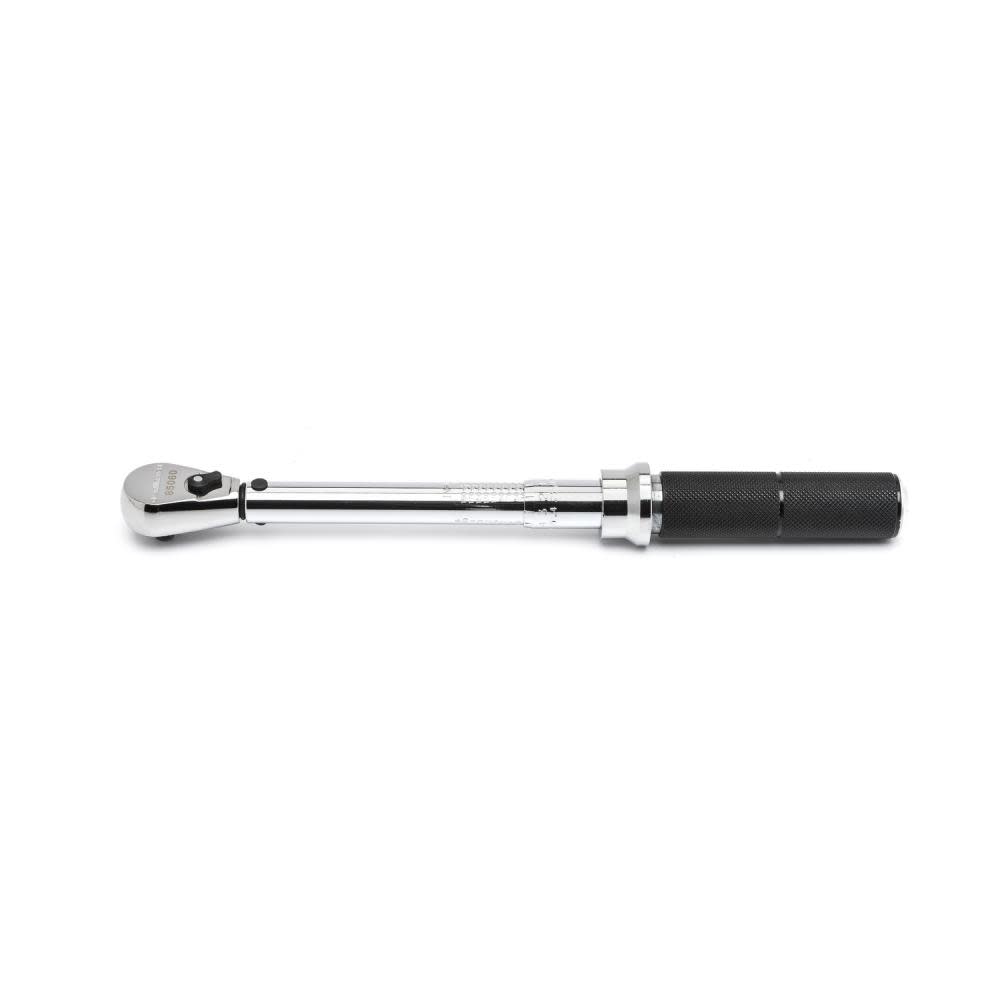

Gearwrench 85060M Wr Trq Micro 1/4dr 30-200 In

Product Description

The GEARWRENCH 85060M is a micro torque wrench designed for precise fastening applications. This tool features a 1/4 inch drive and offers a torque range of 30 to 200 inch-pounds. Constructed from elastomer handle and high strength steel with a full polish chrome finish, it ensures durability. The enclosed ratchet head resists dirt infiltration, while highly visible scale markings facilitate easy reading. Its knurled handle provides a comfortable grip for accurate torque adjustments.

• Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution.
• Scale markings are highly visible and easy to read for precise torque adjustments.

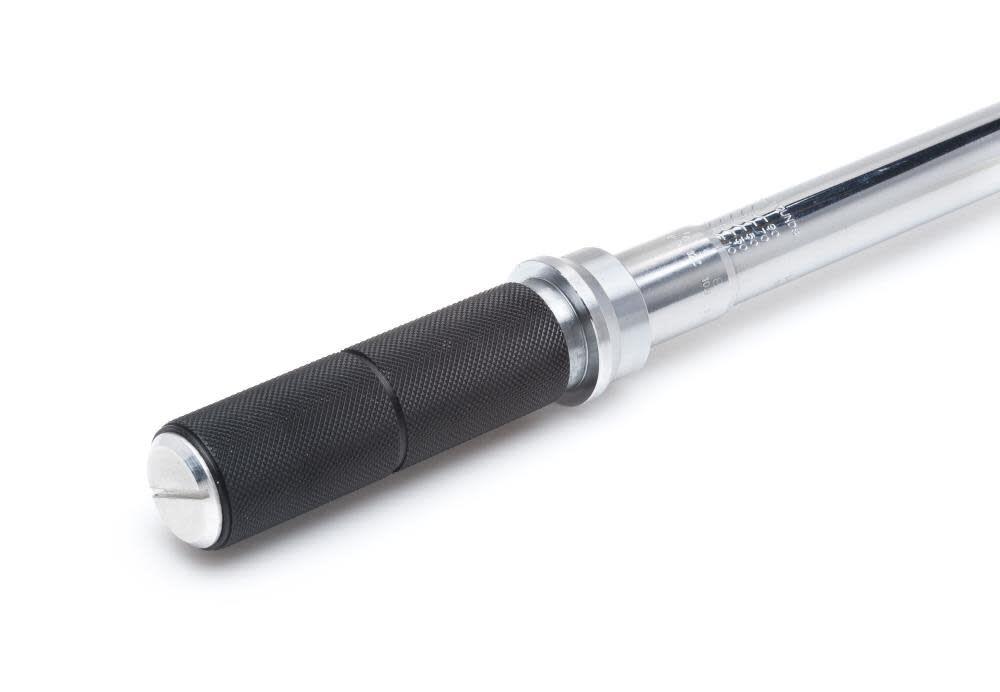

• Knurled aluminum handle provides a comfortable grip, with a clearly marked midpoint for accuracy.

Product Highlights

Thin profile, sealed, teardrop head design offers improved access and durability.

Product Information

Standard Information

• Brand: GEARWRENCH
• Manufacturer Part Number: 85060M
• Country of Origin: Taiwan

Technical Specifications

• MPN: 85060M
• Brand: GEARWRENCH
• Overall Height: 1.1 in
• Overall Width: 1.1 in
• Weight: 0.80 lb
• Torque Accuracy (20-100% of Full Range): ±3% CW between 20% and 100% of wrench capability
• Drive Size: 1/4 in
• Drive Type: Square
• Finish: Full Polish Chrome
• Material: Elastomer Handle and High Strength Steel
• Overall Length: 10.5 in
• Maximum Torque (Primary Scale): 200 in·lb
• Minimum Torque (Primary Scale): 30 in·lb
• Family: GEARWRENCH Micrometer Torque Wrenches
• Manufacturer: Apex Tool Group
• Classification: Torque Wrenches
• Country of Origin: Taiwan, Province of China
• Knurled: Yes
• Flexible: No
• Head Width: 1.1 in
• Included Storage: Blow Mold Case
• UPC: 099575005602
• Head Length: 1.61 in
• Tooth Count: 22
• ASME Specification: B107.300
• Tether Ready: No
• Head Thickness: 0.54 in
• Type: Micrometer
• Alt Scale Increments: 0.11 Nm
• Certified: No
• Maximum Torque (Alt Scale): 23.16 Nm
• Minimum Torque (Alt Scale): 3.95 Nm
• Primary Scale Increments: 1 in/lb
• Head Thickness Less Tang: 0.5 in
• Case Color: Black
• Torque Range (ft-lb): 2.5 ft.-lb. to 16.67 ft.-lb.
• Head Type: Specialty
• Torque Wrench Type: Clicker
• Wrench Style: Torque
