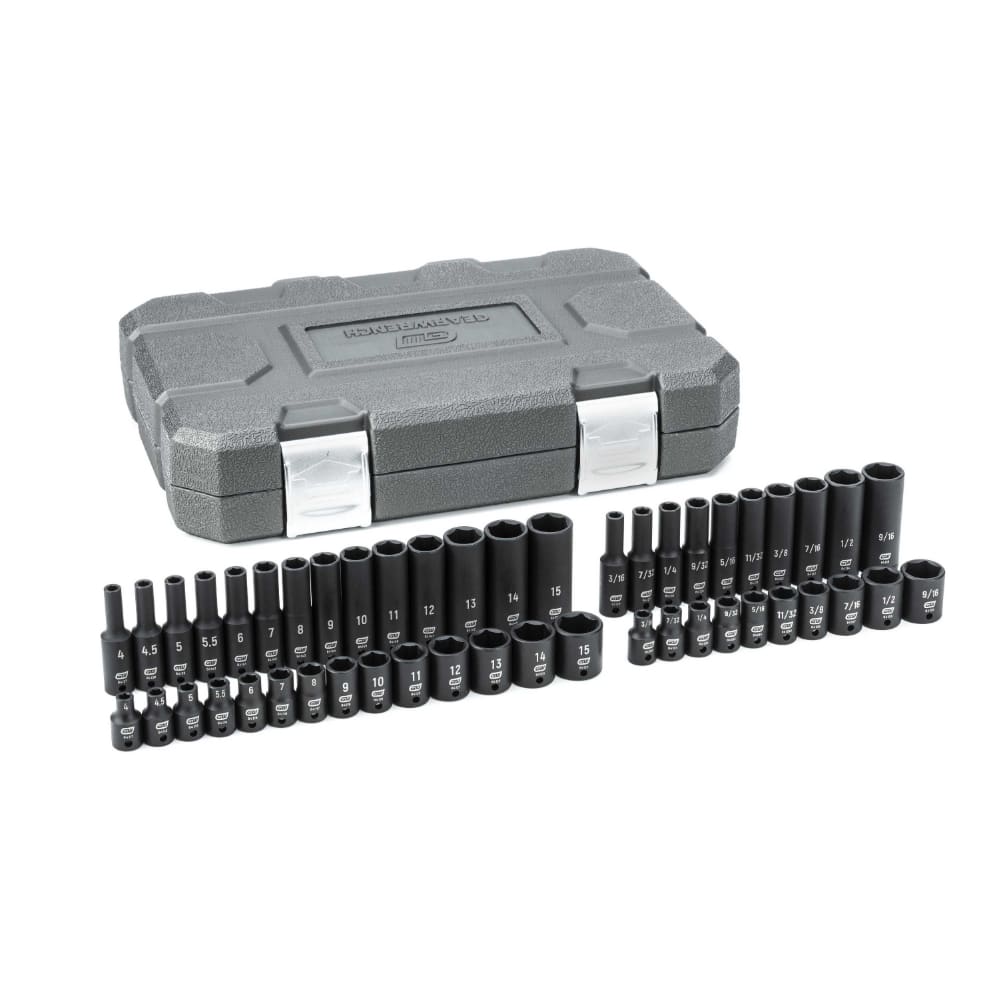

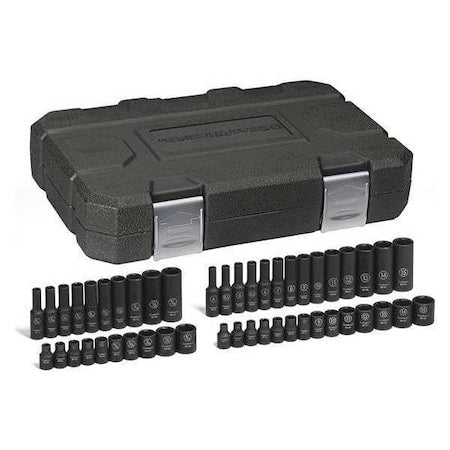

The GEARWRENCH 84902 is a set of standard and deep sockets, designed to deliver performance and strength. Made from chrome molybdenum alloy steel for exceptional strength and durability, these sockets have a manganese phosphate coating for corrosion resistance. The sockets feature highly visible laser etched markings and a secondary size hard stamping.
Made from chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
Manganese phosphate coating for corrosion resistance
Off Corner Load Technology virtually eliminates the rounding of fasteners
Product Highlights
This 48-piece set includes both SAE and metric sizes, with off-corner loading to reduce fastener rounding. It also meets or exceeds ASME specifications and includes a blow mold case for storage and organization.
Product Information
Standard Information
Brand: GEARWRENCH
Manufacturer Part Number: 84902
Country of Origin: TW
Technical Specifications
Drive Size [Nom]
1/4 in
Drive Type
Impact
Finish
Manganese Phosphate
Includes
3/16 in (DP/STD); 7/32 in (DP/STD); 1/4 in (DP/STD); 9/32 in (DP/STD); 5/16 in (DP/STD); 11/32 in (DP/STD); 3/8 in (DP/STD); 7/16 in (DP/STD); 1/2 in (DP/STD); 9/16 in (DP/STD); 4 mm (DP/STD); 4.5 mm (DP/STD); 5 mm (DP/STD); 5.5 mm (DP/STD); 6 mm (DP/STD); 7 mm (DP/STD); 8 mm (DP/STD); 9 mm (DP/STD); 10 mm (DP/STD); 11 mm (DP/STD); 12 mm (DP/STD); 13 mm (DP/STD); 14 mm (DP/STD); 15 mm (DP/STD) Impact Socket; Blow Mold Case
Material
Chrome Molybdenum Alloy Steel
Measuring System
SAE/Metric
No. of Points
6
Opening Size [Nom]
3/16 in to 15 mm
Type
48-Pc Deep/Standard Lengths
Impact Rated [Specifications]
No
Product Type [Specifications]
Impact Socket Set,48pc,SAE/Metric,1/4in
Measurement Type [Specifications]
SAE/Metric
Number of Pieces [Specifications]
48
Drive Tang Size
1/4 in

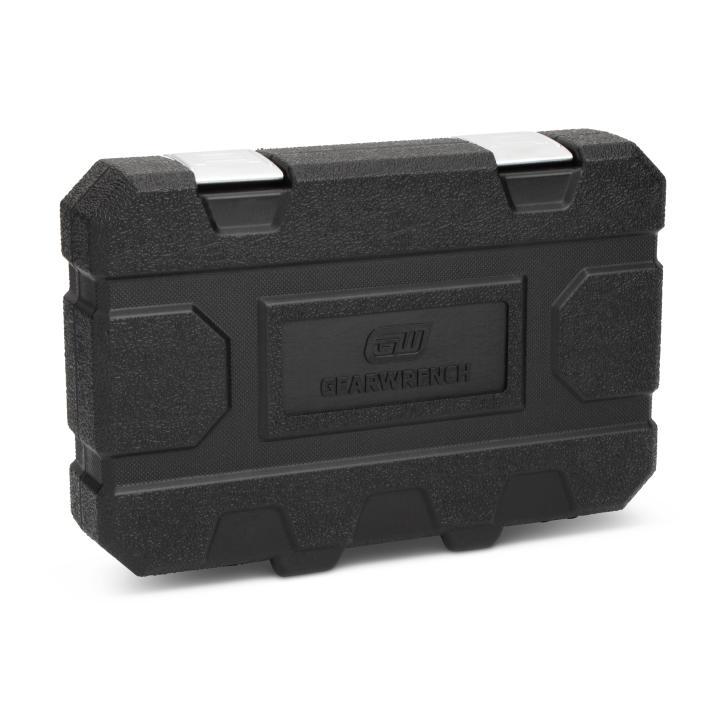

Included Storage
Blow Mold Case
Set Size Range Max
9/16 in15mm
Magnetic
No
Set Size Range Min
3/16 in4mm
SAE/Metric/Torx
SAE/Metric
Set Piece Count
48
Length Format
Standard/Deep
ASME Specification
B107.2/B107.33M
Packaging
Boxed
Hi-Viz
No
Brand Name
GEARWRENCH
Color Coded
No
Deep Well
Yes
Impact or Standard
Impact
Socket Points
6
Unit of Measurement
Inch
Fastener Size
3/16 in 7/32 in 1/4 in 9/32 in 5/16 in 11/32 in 3/8 in 7/16 in 1/2 in 9/16 in ;4mm 4.5mm 5mm 5.5mm 6mm 7mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm 15 mm
