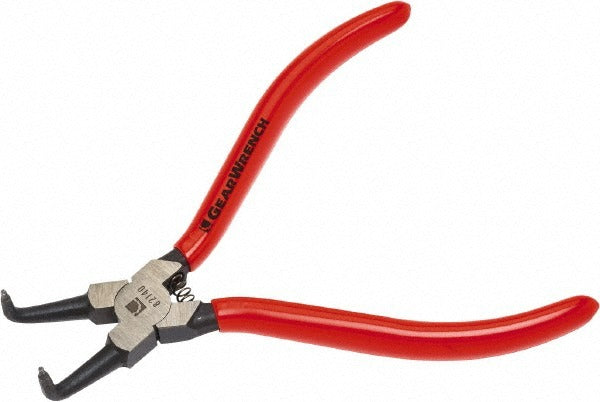

Gearwrench 82146 Internal Retaining Ring Pliers 90 Degree

Product Description

The GEARWRENCH 82146 is a 90-degree fixed-tip internal retaining ring plier designed for installing and removing internal snap rings in bores ranging from 1.57 to 3.94 inches. The forged steel body delivers the rigidity needed for high-torque applications, and the tapered jaw design allows precise tip engagement in tight bore clearances. At 9 inches overall length, the tool provides enough leverage for most bench and in-vehicle retaining ring service. The dipped vinyl handle offers a secure grip during extended use. This tool meets ASME B107.500 standards for pliers and snap ring tools.

This plier is suited for automotive, heavy equipment, and industrial maintenance applications where internal retaining rings secure bearings, shafts, and housings. The 90-degree head angle is the correct geometry for accessing rings that sit perpendicular to the bore axis, a common configuration in transmission cases, differential housings, axle assemblies, and hydraulic cylinders. The 0.090-inch fixed tip diameter is sized for medium-range internal rings within the specified bore range. Licensed technicians, journeyman mechanics, and shop-floor machinists will find this a standard-duty addition to a snap ring set.

Key Features

• 90-degree fixed tip angle for perpendicular bore ring access
• Tip diameter of 0.090 inches for medium internal ring engagement
• Internal ring diameter range: 1.57 to 3.94 inches
• Forged steel body construction for strength and durability
• Tapered jaw design for precise snap ring seating
• Dipped vinyl handle with professional grip for controlled force application
• Meets ASME B107.500 standards

Compatibility

Designed for internal retaining rings with bore diameters between 1.57 and 3.94 inches where a 90-degree tip approach angle is required.

Installation Notes

Always wear eye protection when installing or removing retaining rings, as rings can release under spring tension. Ensure the tip pins are fully seated in the ring holes before applying force to prevent tip slippage or ring deformation. Verify the ring diameter falls within the 1.57 to 3.94 inch range before use; using an undersized or oversized plier can damage the ring or the component bore. This tool is not insulated and is not rated for live electrical work.
