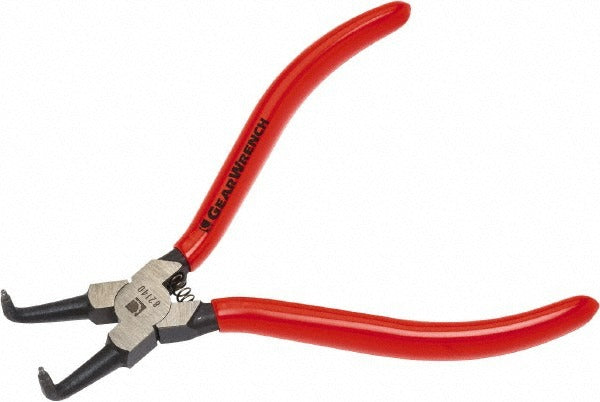

Gearwrench 82134 90 Degree Internal Retaining Ring Pliers

Product Description

The GEARWRENCH 82134 is a 90-degree head internal retaining ring plier designed for installing and removing internal snap rings in confined or hard-to-reach bore locations. Built on a forged steel body, these pliers deliver the structural rigidity required for repeated professional use. The fixed tip measures 0.049 inches in diameter and is set at a 90-degree angle to the jaw, allowing direct access to ring grooves that straight-tip pliers cannot reach. The dipped vinyl handle provides a firm grip during installation. Overall length is 5 inches, keeping the tool compact for use in tight work areas. Meets ASME B107.500 standards.

These pliers are suited for automotive, industrial, and general mechanical applications where internal retaining rings fall within the 0.39 to 0.98 inch diameter range. The tapered jaw design seats reliably into ring holes without slipping, which is critical when working inside housings, cylinders, or bores. The 90-degree head angle makes them the correct choice when a straight or 45-degree plier cannot achieve the proper approach angle for the ring being serviced.

Key Features

• 90-degree fixed tip for accessing ring grooves in deep or angled bore locations
• Tip diameter of 0.049 inches suits small internal retaining rings
• Forged steel body construction for strength and long service life
• Tapered jaw design for secure seating in ring holes
• Dipped vinyl handle with professional grip for control during installation
• Meets ASME B107.500 standard for retaining ring pliers

Compatibility

Designed for internal retaining rings with a diameter range of 0.39 to 0.98 inches, suitable for general mechanical, automotive, and industrial snap ring service applications.

Installation Notes

Install and remove internal retaining rings only after depressurizing or disassembling the relevant assembly and ensuring the work area is safe and stationary. Confirm the tip size matches the ring hole diameter before applying force to avoid tip breakage or ring distortion. These pliers are intended for hand-tool use only — do not strike or use as a pry tool. Eye protection is recommended when compressing or expanding snap rings, as rings can release suddenly.
