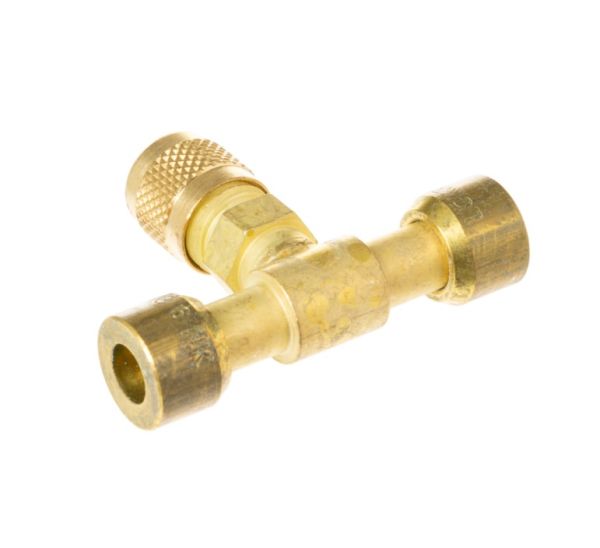

Ge wr97x30613 Brass Connector Schrader 1/4 X 1/4 Inch

Product Description

The General Electric wr97x30613 is a 1/4 inch x 1/4 inch brass connector fitted with a Schrader valve, designed for use in refrigeration systems. This OEM GE part provides a secure, leak-resistant connection point that allows refrigerant access for charging, recovery, or pressure testing without fully opening the refrigerant circuit. The Schrader valve core enables technicians to attach manifold gauge sets quickly and safely. HVAC and appliance service technicians install this fitting as part of routine refrigerant system service or compressor replacement work on GE refrigeration equipment.

This connector is used in residential refrigeration applications where a dedicated refrigerant access port is required. It is suited for systems that use 1/4 inch copper or flare tubing on both the inlet and outlet sides. The Schrader valve configuration makes it a standard choice when adding or restoring a service port during compressor replacement, leak diagnosis, or refrigerant recharge procedures on GE refrigerators and similar sealed-system appliances.

Key Features

• Brass construction for corrosion resistance and durability in refrigerant service environments
• Integrated Schrader valve allows manifold gauge set connection without full system opening
• 1/4 inch x 1/4 inch configuration fits standard refrigeration tubing and flare fittings
• OEM GE part number wr97x30613 ensures direct fit for applicable GE sealed-system equipment
• Suitable for refrigerant charging, recovery, and pressure diagnostics

Compatibility

Designed as an OEM-style replacement connector for GE refrigeration appliances requiring a 1/4 inch x 1/4 inch Schrader-equipped brass service fitting.

Installation Notes

This fitting is installed by a licensed appliance or HVAC technician. Before service, recover all refrigerant from the sealed system in compliance with EPA Section 608 regulations and power down the appliance completely. Use appropriate flaring or brazing techniques as required by the connection method. Do not overtighten the Schrader valve core or fitting connections, as brass fittings can be damaged by excessive torque.

Technical Specifications

• Material: Brass
• Inlet Size: 1/4 inch
• Outlet Size: 1/4 inch
• Valve Type: Schrader

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wr97x30613
