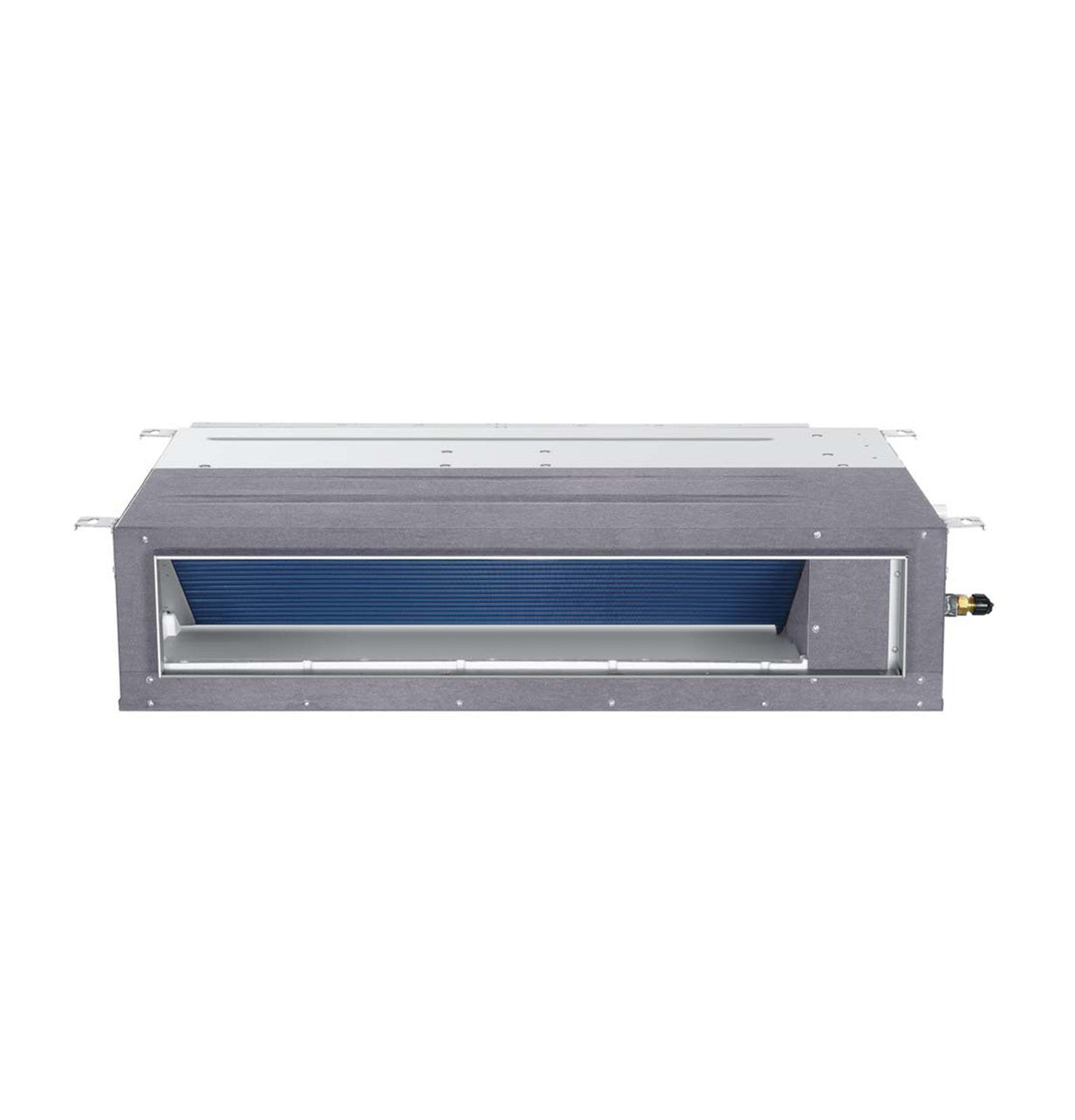

Ge US24MB2BEA(I) 208-230V 24,000 BTU Mid-Static Ducted Indoor Unit

Product Description

The GE US24MB2BEA(I) is a 208-230V 24,000 BTU mid-static ducted indoor unit. This commercial unit features a built-in condensate pump and is compatible with select series. It uses R454B refrigerant and has 5 fan speed stages plus auto. The unit is designed for indoor use.

• ADA Compliant
• Built-In Condensate Pump
• Connect to WiFi for real-time feedback, optimized performance, alerts and more.

Product Highlights

This GE indoor unit offers efficient cooling and smart features for optimized performance.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: US24MB2BEA(I)

Technical Specifications

• Built-In Condensate Pump: Yes
• Drainpipe Size (in): 1
• Fan Speed Stages: 5 + Auto
• Max. Drain-Lift Height (in): 27 1/2
• Max. External Static Pressure: 0.6
• Product Type: Commercial
• Refrigerant Type: R454B
• Series: Indoor Units (Compatible with Select Series)
• Style: Mid-Static Ducted
• Unit Type: Indoor
• Cooling Rated Capacity BTU/Hr: 24,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 3/8"
• Overall Depth: 27.5 in
• Overall Height: 9.75 in
• Overall Width: 47.5 in
• Suction O.D. Refrigerant Line: 5/8"
• Part Number: US24MB2BEA
• Certificate: cETLus Listed, AHRI Certified
• Cooling Capacity: 24 Kbtu/hr
• Electrical Phase: 1 Ph
• Fan Speeds: 5-Speed
• Heating Capacity: 24.8 Kbtu/hr
• Highest Decibel Rating: 49 dB-A
• Maximum Voltage: 208V-230V
• Refrigerant: R-454B
• Suction Line: 5/8
• Voltage Rating: 208-240 VAC
• HSPF Rating: 9.4
• SEER Rating: 18
• EER Rating: 10
• Power Source: 208 to 240 V AC
• Brand: GE Appliances
• Manufacturer: GE Appliances
• Mount Type: Ceiling
