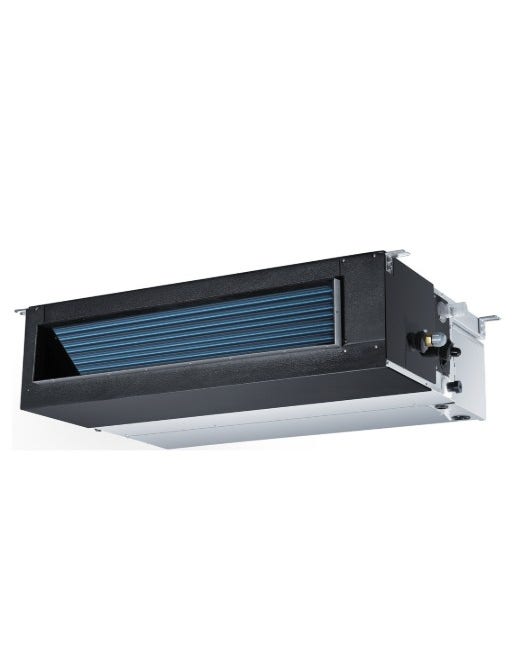

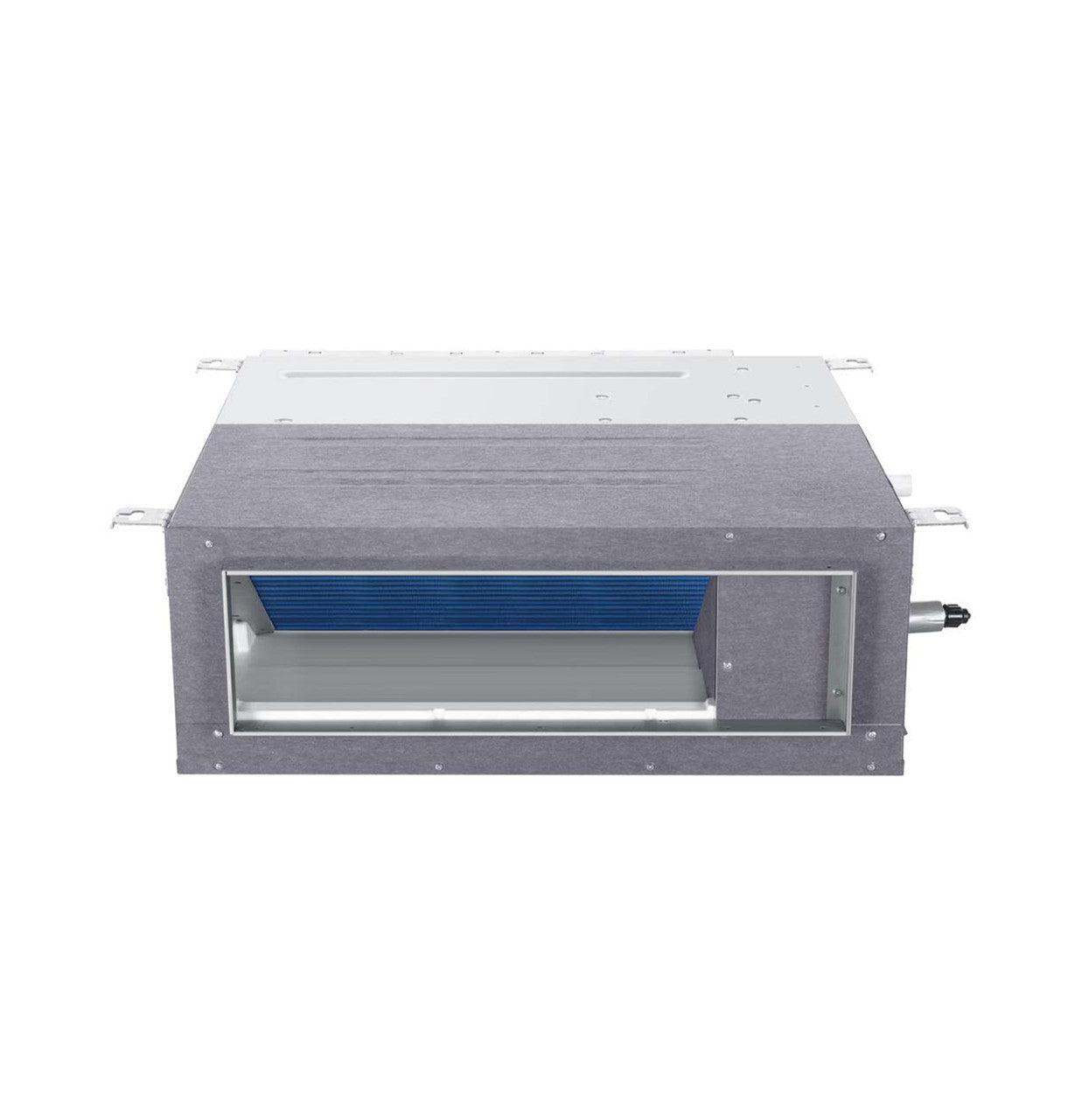

Ge US12MB2BEA 208-230V 12,000 BTU Mid-Static Ducted Indoor Unit

Product Description

The GE US12MB2BEA is a 208-230V 12,000 BTU mid-static ducted indoor unit that utilizes R-454B refrigerant. Features a factory-installed condensate pump and built-in Wi-Fi. This air handler is designed for indoor use and is compatible with select series. Condenser sold separately.

• Built-in condensate pump
• Compatible with Amazon Alexa and Google Assistant
• Built-In Wi-Fi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone.

Product Highlights

The GE US12MB2BEA mid-static ducted indoor unit offers efficient cooling and smart home integration.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: US12MB2BEA(I)

Technical Specifications

• Built-In Condensate Pump: Yes
• Drainpipe Size (in): 1
• Fan Speed Stages: 5 + Auto
• Max. Drain-Lift Height (in): 27 1/2
• Max. External Static Pressure: 0.6
• Product Type: Single Zone Multi Zone
• Refrigerant Type: R454B
• Series: Indoor Units (Compatible with Select Series)
• Style: Mid-Static Ducted
• Unit Type: Indoor
• Cooling Rated Capacity BTU/Hr: 10,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Suction O.D. Refrigerant Line: 3/8"
• Part Number: US12MB2BEA
• Certificate: cETLus Listed, AHRI Certified
• Electrical Phase: 1 Ph
• Fan Speeds: 5-Speed
• Highest Decibel Rating: 47 dB-A
• Maximum Voltage: 208V-230V
• Refrigerant: R-454B
• Suction Line: 3/8
• Cooling Capacity: 10,000
• Heating Capacity: 14,000
• Mount Type: Ceiling
