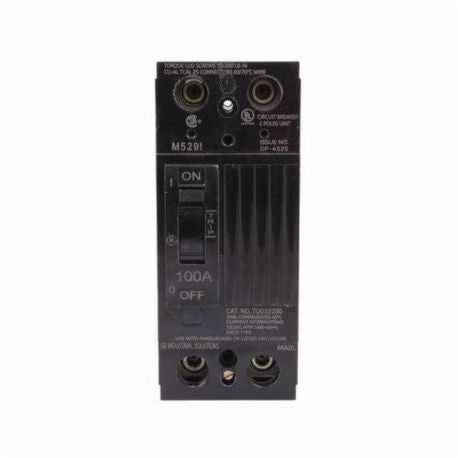

GE TQD22100WL Type TQD Thermal Magnetic Molded Case Circuit Breaker 240 VAC 100 A 10 kA Interrupt 2 Poles

Product Description

The GE TQD22100WL is a two-pole thermal magnetic molded case circuit breaker rated for 240 volts and 100 amps. This circuit breaker includes line and load lugs suitable for copper and aluminum connections, designed for effective circuit protection and reliability.

• Rated for 240 volts AC and 100 amps
• 10 kA interrupt rating for circuit protection
• Includes line and load lugs for easy installation

Product Highlights

This circuit breaker is part of the TQD line, known for its thermal magnetic function which ensures reliable operation in various electrical systems.

Product Information

Standard Information

• Brand: GE
• MPN: TQD22100WL

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number Of Poles: 2
• Interrupt Rating: 10 kA
• Wire Size: (2) 1 to 300 kcmil
• Dimensions: 6-9/16 in H x 2-3/4 in W x 2-5/8 in D
• Mounting Type: Bolt-On
• Includes: Internal Common Trip
