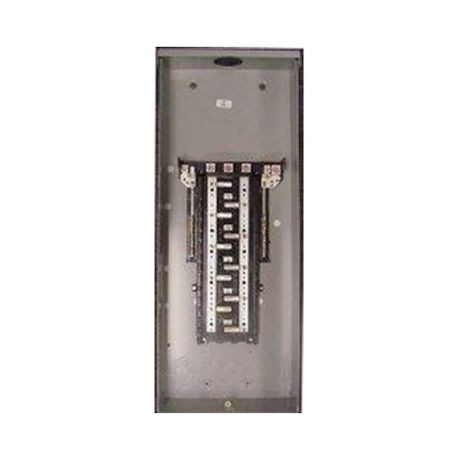

GE TL30420R Center Load Lug Main 208/120VAC 200A

Product Description

The GE TL30420R is a three-phase standard main lug load center designed for 208Y/120 VAC applications. This unit operates at 200 amperes and features a sixty-five kA interrupt rating, ensuring reliability in demanding electrical environments.

• Designed for three-phase installations
• Rated for outdoor use with NEMA 3R enclosure
• Capacity for up to 30 circuits

Product Highlights

The GE TL30420R provides a robust solution for main distribution applications while meeting stringent electrical codes.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TL30420R

Technical Specifications

• Type: 3-Phase Standard
• Series: TL Series
• Voltage Rating: 208Y/120 VAC
• Amperage Rating: 200 A
• Breaker Type: THQL
• Interrupt Rating: 65 kA
• Number of Circuits: 30
• Wiring Configuration: 4-Wire
• Wire Size: 1 AWG to 250 kcmil Cu, 2/0 AWG to 250 kcmil Al
• Dimensions: 32-11/16 in H x 12-1/2 in W x 4-5/8 in D
• Enclosure Type: NEMA 3R
