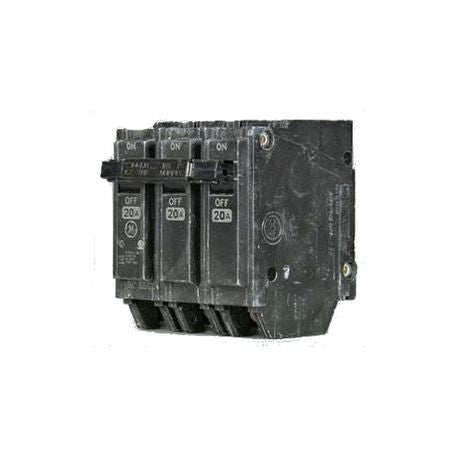

GE THQL32020 THQL Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 3 Poles, Non-Interchangeable Trip

Product Description

GE THQL32020 is a molded case circuit breaker designed for both residential and commercial use. It supports a voltage rating of 120/240 VAC with a 20 Amp capacity and an interrupt rating of 10 kA. The breaker is a three-pole type and comes with a non-interchangeable thermal magnetic trip.

• Compact design, only one inch wide per pole
• Plug-in mounting for easy installation
• Compatible with 12 to 8 AWG aluminum and 14 to 8 AWG copper wire

Product Highlights

This circuit breaker is ideal for protecting circuits from overloads and short circuits. It is built to ensure quick and reliable operation.

Product Information

Standard Information

• Brand: GE
• MPN: THQL32020

Technical Specifications

• Type: Type THQL
• Amperage Rating: 20 Amp
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Number of Poles: 3
• Trip Type: Non-Interchangeable Thermal Magnetic
• Wire Size: 12 to 8 AWG
• Dimensions: 2-3/8 in L x 1 in W x 3-9/32 in H
• Temperature Rating: 60/75 deg C
• Mounting Type: Plug-In
