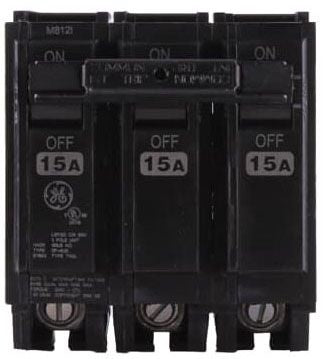

GE THQL32015 THQL Molded Case Circuit Breaker, 120/240 VAC, 15 Amp, 10 kAIC, 3 Poles

Product Description

GE THQL32015 is a molded case circuit breaker designed for 120/240 VAC electrical systems. This device has a rated capacity of 15 amps and a maximum interrupting capacity of 10 kAIC. It features three poles and is suitable for residential and commercial applications.

• 120/240 VAC voltage rating
• Quick-make, quick-break mechanism
• Plug-in mounting type

Product Highlights

This circuit breaker is built for reliability in various electrical distribution and control applications. The non-interchangeable thermal magnetic trip function ensures optimal protection.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: THQL32015

Technical Specifications

• Type: Molded Case
• Frame: Q-Line
• Amperage Rating: 15 A
• Voltage Rating: 120/240 VAC
• Dimensions: 3-9/32 inches H x 3 inches W x 2-3/8 inches D
• Interrupt Rating: 10 kA
• Connection Type: Load Lug
• Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
• Number of Poles: 3
• Mounting Type: Plug-In
• Temperature Rating: 60/75 deg C
