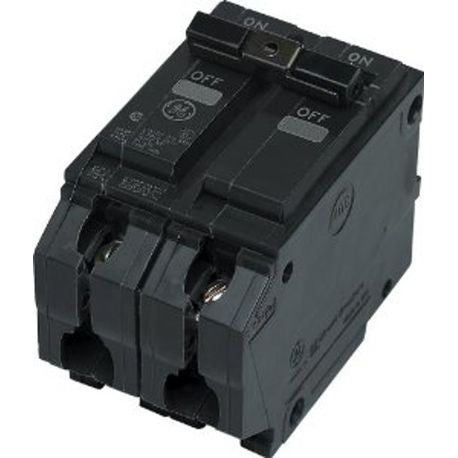

GE THQL2190 THQL Molded Case Circuit Breaker, 120/240 VAC, 90 Amp, 10 kAIC, 2 Poles

Product Description

The GE THQL2190 is a molded case circuit breaker designed for reliable performance in residential and commercial applications. This circuit breaker operates at 120/240 VAC with a 90 Amp rating and a 10 kA interrupt capacity. It features two poles and utilizes a long time/instantaneous trip mechanism.

• Compact thermal magnetic design
• Plug-in mounting for easy installation
• Suitable for residential and commercial use

Product Highlights

The GE Q-Line circuit breakers provide efficient and safe electrical protection. With quick-make, quick-break mechanisms and an easy-to-spot trip indication, these breakers ensure user safety.

Product Information

Standard Information

• Manufacturer: ABB Electrification
• Brand: GE

Technical Specifications

• Type: Type THQL
• Phase: 1
• Voltage Rating: 120/240 VAC
• Amperage Rating: 90 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG
• Mounting Type: Plug-In
• Temperature Rating: 60 to 75 degrees C
• Connection Type: Box Lug
• Dimensions: 3-9/32 in H x 2 in W x 2-3/8 in D
