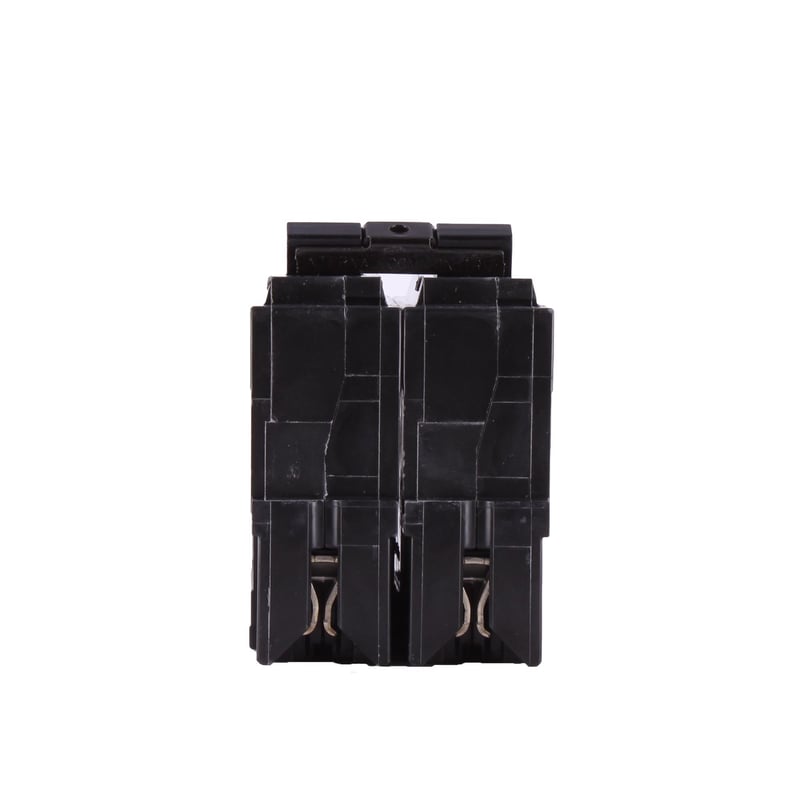

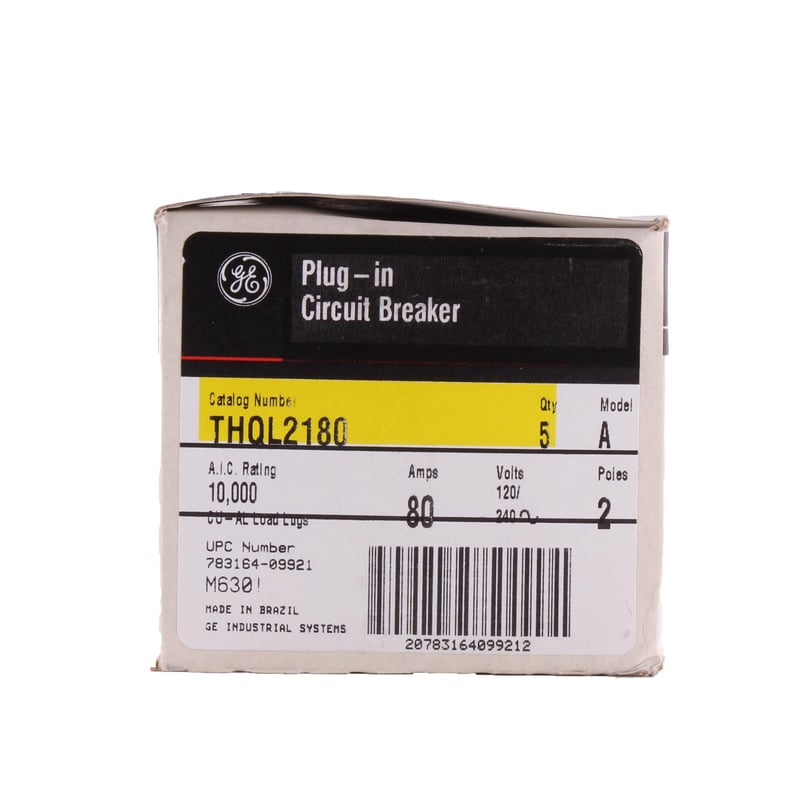

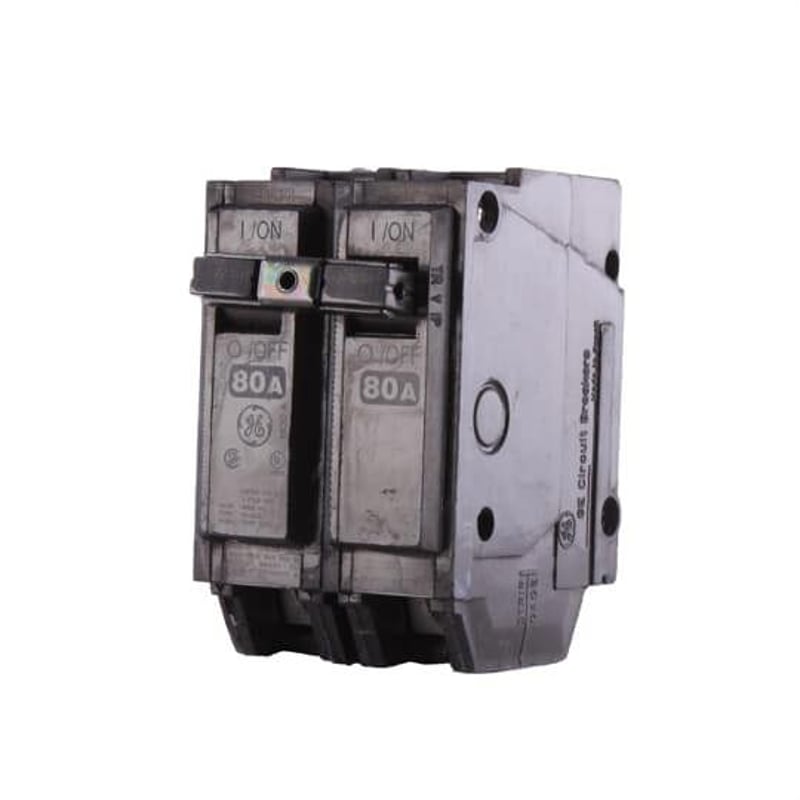

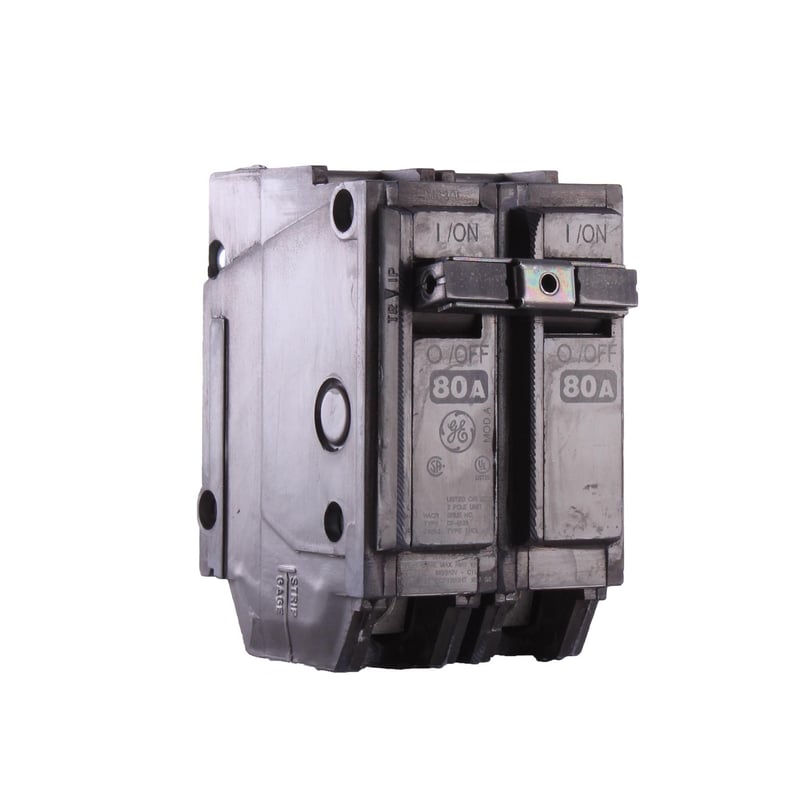

Ge THQL2180 THQL Compact Molded Case Circuit Breaker, 120/240 VAC, 80 Amp, 2 Poles

Product Description

The GE THQL2180 is a Q-Line® molded case circuit breaker, designed as a compact, thermal magnetic device for residential and commercial applications. This Type THQL Compact breaker operates at 120/240 VAC, with an 80 A current rating and a 10 kA interrupt rating. It features a quick-make, quick-break mechanism and easy trip indication for safety and reliability.

• Molded case made from high mechanical and dielectric strength engineered plastic
• Features a quick-make, quick-break, trip-free mechanism to minimize arcing
• UL listed lugs for copper or aluminum cable

Product Highlights

This GE Q-Line circuit breaker is a reliable solution for residential and commercial applications, ensuring safety and efficient circuit protection.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: THQL2180
• Country of Origin: Multiple

Technical Specifications

• Type: Type THQL Compact
• Frame: Q-Line
• Phase: 1
• Trip Type: Non-Interchangeable Thermal Magnetic/LI
• Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG
• Voltage Rating: 120/240 VAC
• Amperage Rating: 80 A
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 10 kA
• Temperature Rating: 10 to 50 deg C
• Application: For residential and commercial applications
• Standard & Approvals: UL E11592 Listed, UL 489, Federal Specification (WC-375B), HACR Rating
• Terminal Type: Lug
• Operating Temperature: 60 to 75 deg C
• Actuator Type: Pivot/Toggle Handle
• Mounting Type: Plug-In
• Connection Type: Load Lug
