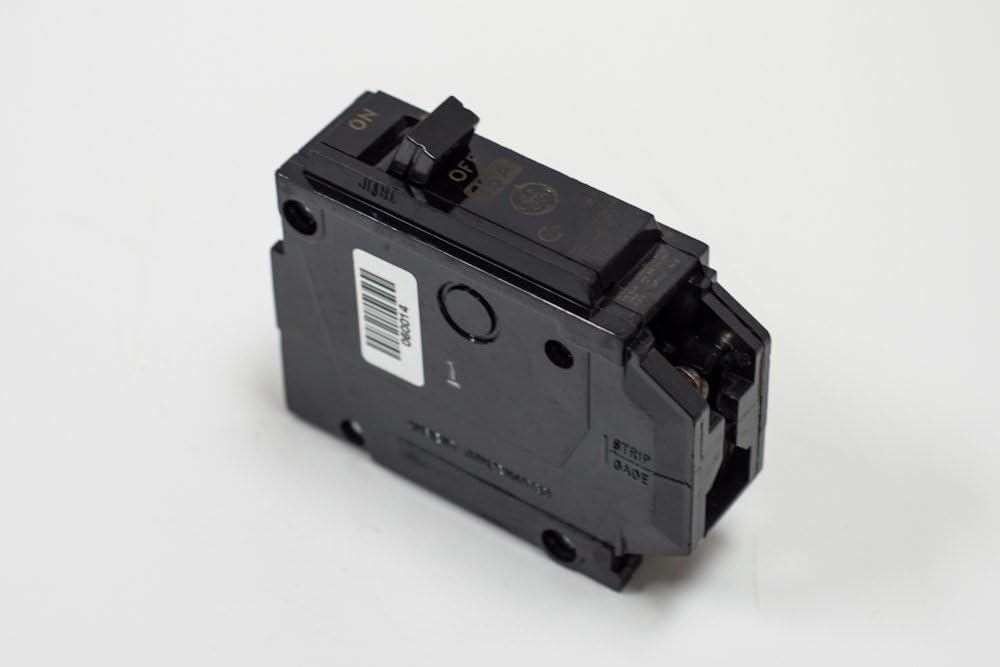

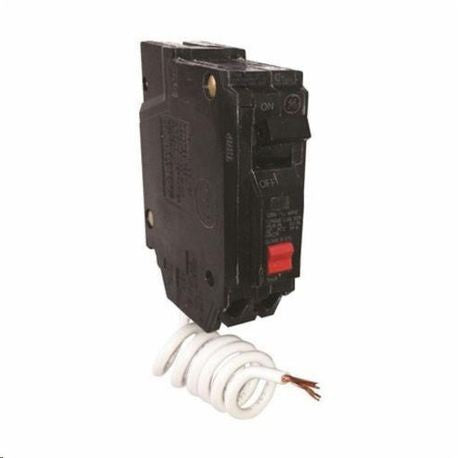

GE THQL1120GFT Plug-in Mount Type THQL Feeder Self-Test Ground Fault Circuit Breaker 1-Pole 20 Amp 120 Volt AC

Product Description

The GE THQL1120GFT is a one-pole, ground fault circuit breaker rated for twenty amps and 120 volts. This self-testing device helps prevent electrical shocks and overloads. It is designed for plug-in mounting, making it suitable for residential and commercial applications.

• Complies with the National Electrical Code for outdoor receptacle protection.
• Self-testing feature ensures reliability and safety.
• Compact design integrates easily into load centers.

Product Highlights

The circuit breaker features a quick-make, quick-break mechanism. It provides essential ground fault protection against electrical current leakage. The device can handle various wire sizes and is equipped for reverse feed applications.

Product Information

Standard Information

• Material: Plastic
• Mounting Type: Plug-In

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Number Of Poles: 1
• Interrupt Rating: 10 kA
• Trip Range: 5 mA
• Dimensions: 3-9/32 inches H x 1 inch W x 2-3/8 inches D
• Wire Size: 14 to 8 AWG Cu, 12 to 8 AWG Al
• Trip Type: Non-Interchangeable
