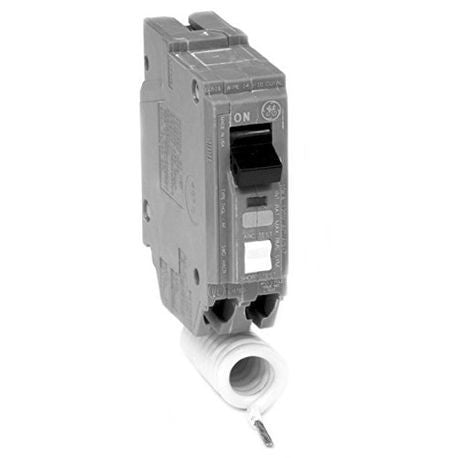

GE THQL1120AF2 THQL AFCI Circuit Breaker, 120/240 VAC, 20 Amp, 10 kAIC, 1 Pole

Product Description

The GE THQL1120AF2 is an AFCI circuit breaker designed for safety in residential and commercial electrical installations. This device operates at 120/240 VAC with a 20 amp rating and a ten kiloamp interrupting capacity. It features a one-pole configuration and is built to protect against arc faults, which are often responsible for electrical fires.

• Designed for 120/240 VAC applications
• Quick make, quick break mechanism for enhanced safety
• Plug-in installation for easy integration into circuit panels

Product Highlights

The GE THQL1120AF2 circuit breaker provides reliable arc fault protection and is compliant with the latest NEC standards, ensuring safety and performance.

Product Information

Standard Information

• Brand: GE
• MPN: THQL1120AF2

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: LI/Non-Interchangeable Thermal Magnetic
• Dimensions: 3-9/32 inches H x 1 inch W x 2-3/8 inches D
• Wire Size: 14 to 10 AWG
• Construction Material: Thermoset
• Mounting Type: Plug-In
• Application: Residential Loadcenter, AL/ALC Series Panelboard
