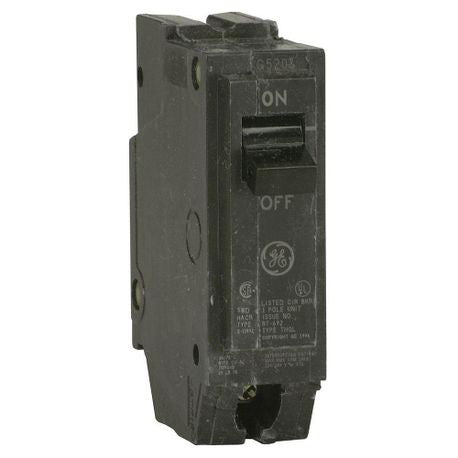

GE THQL1120 THQL Molded Case Circuit Breaker 120/240 VAC 20 Amp 10 kA Interrupt 1 Pole

Product Description

The GE THQL1120 is a molded case circuit breaker designed for both residential and commercial use. With a voltage rating of 120/240 VAC and a current rating of 20 Amps, this breaker offers reliable protection for electrical circuits. It features a ten kA interrupt rating, providing sufficient surge capacity for most applications.

• Compact design, only one inch wide per pole.
• LI/Non-Interchangeable thermal magnetic trip.
• Suitable for use with 12 to 8 AWG wires.

Product Highlights

This circuit breaker is ideal for protecting circuits in load centers and lighting panels. It ensures safety and reliability through its quick-make, quick-break mechanism.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: THQL1120

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Wire Size: 12 to 8 AWG
• Dimensions: 2-3/8 inches L x 1 inch W x 3-9/32 inches H
• Mounting Type: Plug-In
• Frame Type: Q-Line
• Phase: 1
• Temperature Rating: 60/75 degrees C
• Application: Residential and Commercial
