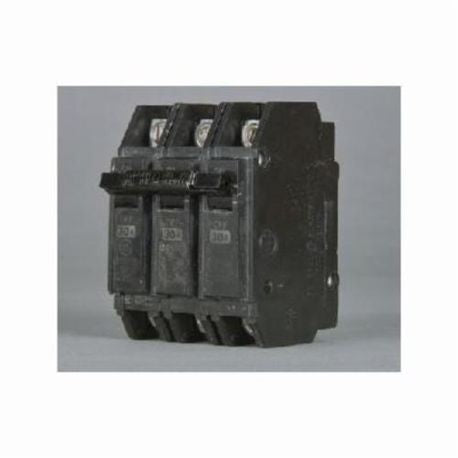

GE THQC32060WL Q-Line THQC Thermal Magnetic Molded Case Circuit Breaker 240 VAC 60 A 10 kA Interrupt 3 Poles

Product Description

The GE THQC32060WL is a thermal magnetic molded case circuit breaker designed for use in residential and commercial settings. It operates at 240 VAC and has a 60 A rating. This breaker features a 10 kA interrupting capacity and is built with three poles for effective power distribution.

• Three pole thermal magnetic design
• Suitable for 35mm DIN rail mounting
• Compact and efficient construction

Product Highlights

This circuit breaker ensures safety with its quick make and quick break mechanisms. It also has an easy-to-spot trip indication for quick responses in case of overloads.

Product Information

Standard Information

• Brand: GE
• Manufacturer: General Electric

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Interrupt Rating: 10 kA
• Dimensions: 3-9/32 inches H x 3 inches W x 2-3/8 inches D
• Trip Type: Long Time and Instantaneous
• Phase: 3
• Wire Size: 8 to 3 AWG
• Type: Type THQC Thermal Magnetic
• Connection Type: Cable-In/Cable-Out (Line and Load Lug)
• Number Of Poles: 3
• Minimum Order Qty: 1
• Standard & Approvals: UL E11592, UL 489, Federal Specification (WC-375B), HACR Rating
• Application: For residential and commercial applications
