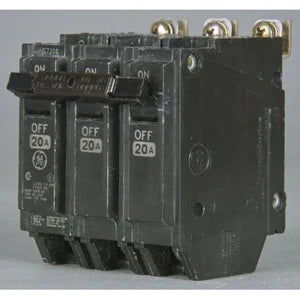

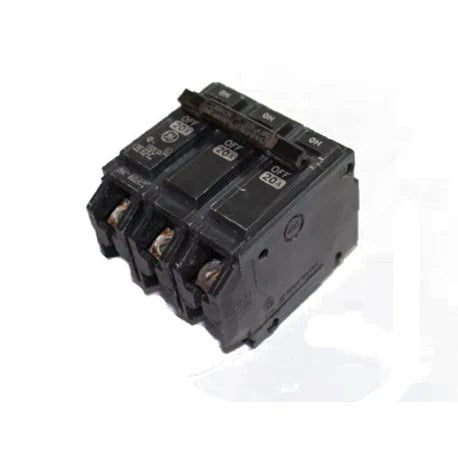

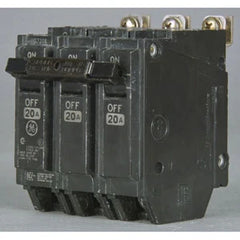

GE THQB32020 THQB Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 10 kAIC, 3 Poles

Product Description

GE THQB32020 is a miniature circuit breaker designed for use in 120/240 VAC systems. This breaker has a current rating of 20 Amps and features a 10 kA interrupt rating. It consists of three poles and is ideal for both residential and commercial applications.

• Suitable for wire sizes from 14 to 8 AWG for copper and 12 to 8 AWG for aluminum.
• Designed for bolted-on mounting to panel boards and lighting panels.
• Includes a quick-make and quick-break mechanism for reliable operation.

Product Highlights

This circuit breaker is part of the Q-Line series, known for its compact and efficient design, making it suitable for various electrical setups.

Product Information

Standard Information

• Manufacturer: GE
• Part No: THQB32020

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupting Rating: 10 kA
• Number of Poles: 3
• Trip Type: LI/Non-Interchangeable Thermal Magnetic
• Mounting Type: Bolted-On
• Frame: THQB
• Size: 2-3/8 in L x 3 in W x 3-9/32 in H
