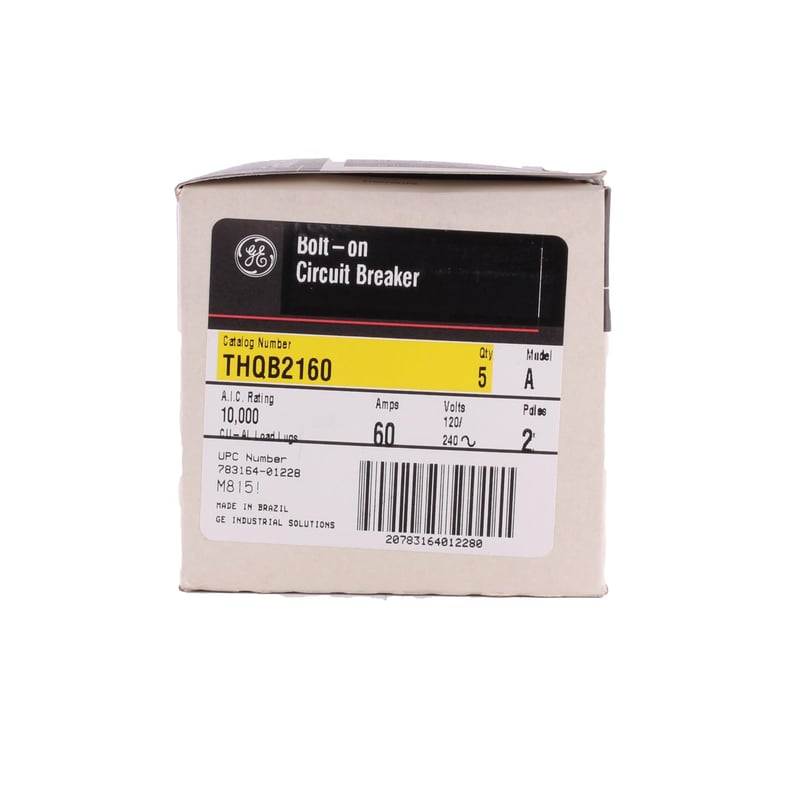

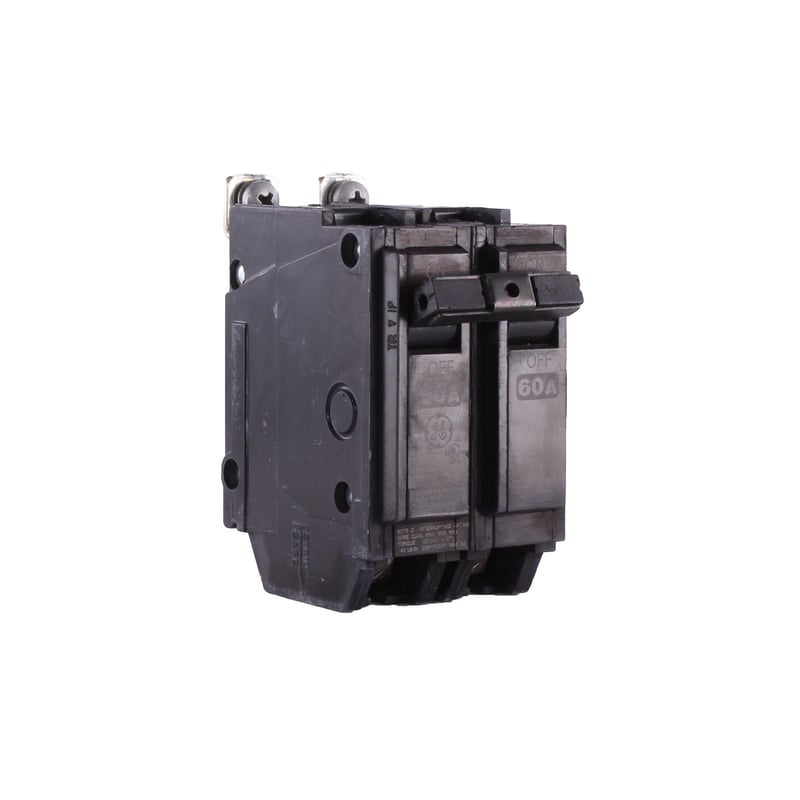

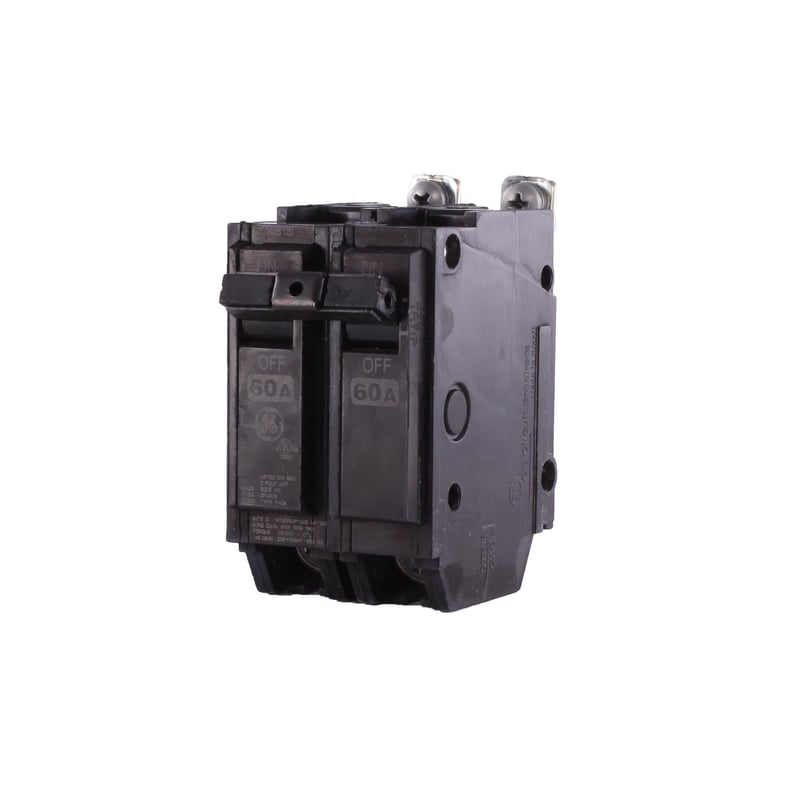

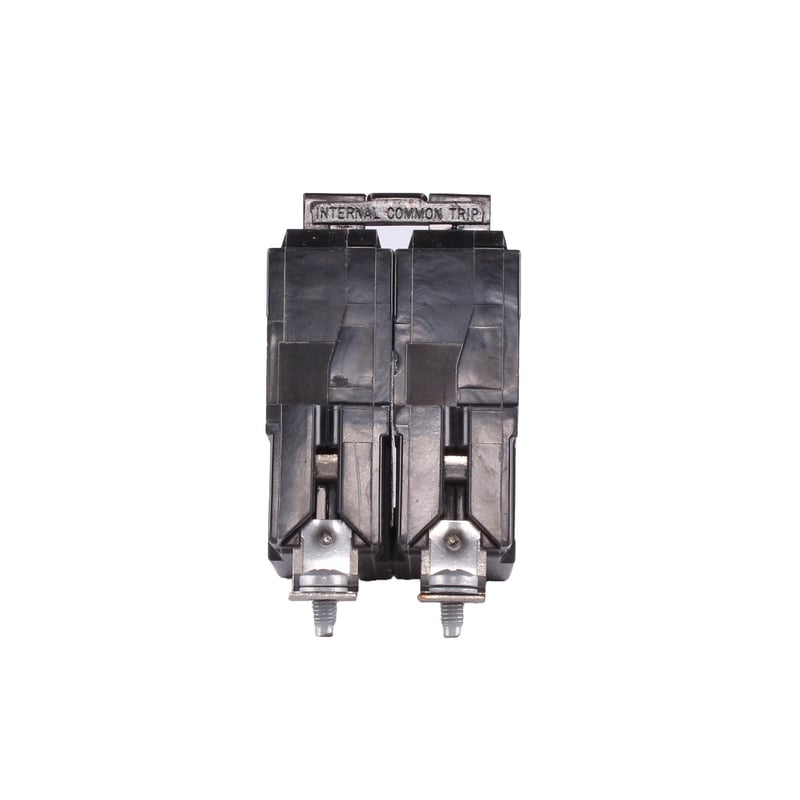

Ge THQB2160 THQB Miniature Circuit Breaker 60 Amp

Product Description

The GE THQB2160 Q-Line Miniature Circuit Breaker is a 120/240 VAC, 60 A, 10 kA interrupt, 2-pole breaker designed for residential and commercial applications. This thermal magnetic breaker features quick-make, quick-break mechanisms and easy to spot trip indication. It has a LI/Non-Interchangeable trip type and accepts 8 to 3 AWG wire.

• Standard continuous current rated
• Fixed long time and fixed instantaneous trip function
• 8 to 3 AWG copper aluminum wire range

Product Highlights

The GE THQB2160 is a reliable circuit breaker for residential and commercial use. It is easy to install with bolted-on mounting.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: THQB2160

Technical Specifications

• Frame: THQB
• Trip Type: LI/Non-Interchangeable
• Wire Size: 8 to 3 AWG
• Mounting Type: Bolted-On
• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Temperature Rating: 60 to 75 deg C
• Model: THQB
• Terminal Type: Box terminal
• Approval: UL
• Application: For Commercial and Residential Applications
• Standard & Approvals: UL E11592
• Phase: 1
