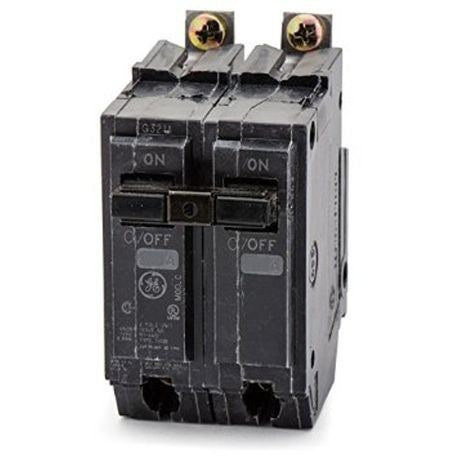

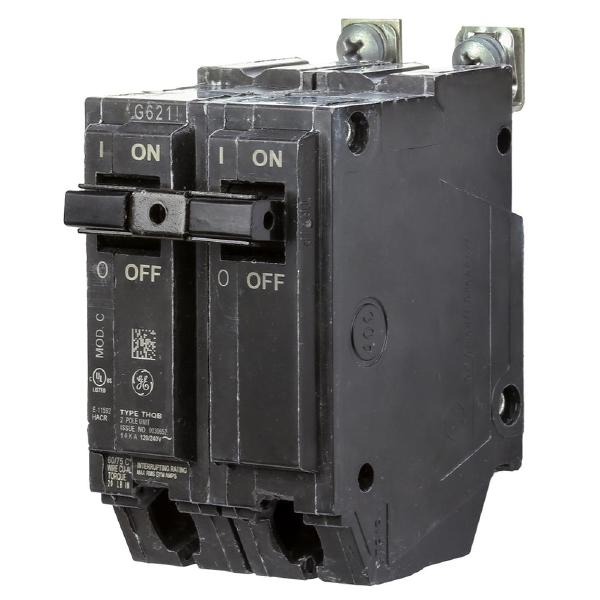

GE THQB2150 THQB Miniature Circuit Breaker 120/240 VAC 50 Amp 10 kA 2 Poles

Product Description

The GE THQB2150 is a miniature circuit breaker designed for electrical systems operating at 120/240 VAC with a 50 amp rating. This model operates with a fixed long time and instantaneous trip function, making it suitable for protecting circuits in residential and commercial settings.

• Rated for continuous current
• Compact and thermal magnetic design
• Compatible with 8 to 3 AWG wire

Product Highlights

This circuit breaker features a bolted-on mounting type, ensuring stability and reliability. Its Q-Line design allows for easy installation in load centers and lighting panels.

Product Information

Standard Information

• Brand: GE
• Manufacturer: General Electric

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Mounting Type: Bolted-On
• Dimensions: 2-3/8 in L x 2 in W x 3-9/32 in H
• Temperature Rating: 60 to 75 deg C
• Wire Size: 8 to 3 AWG (Copper/Aluminum)
