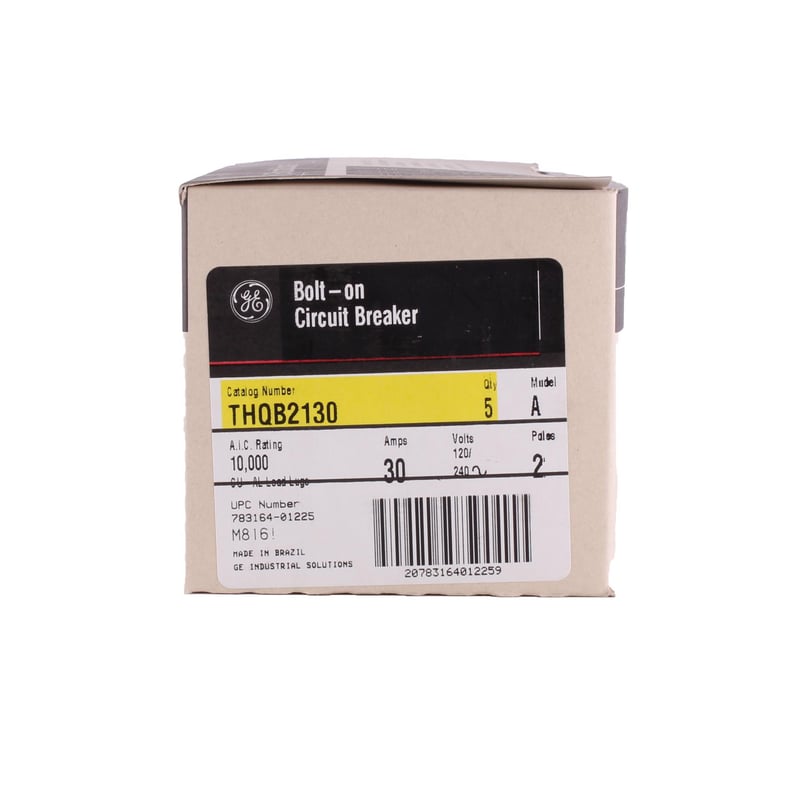

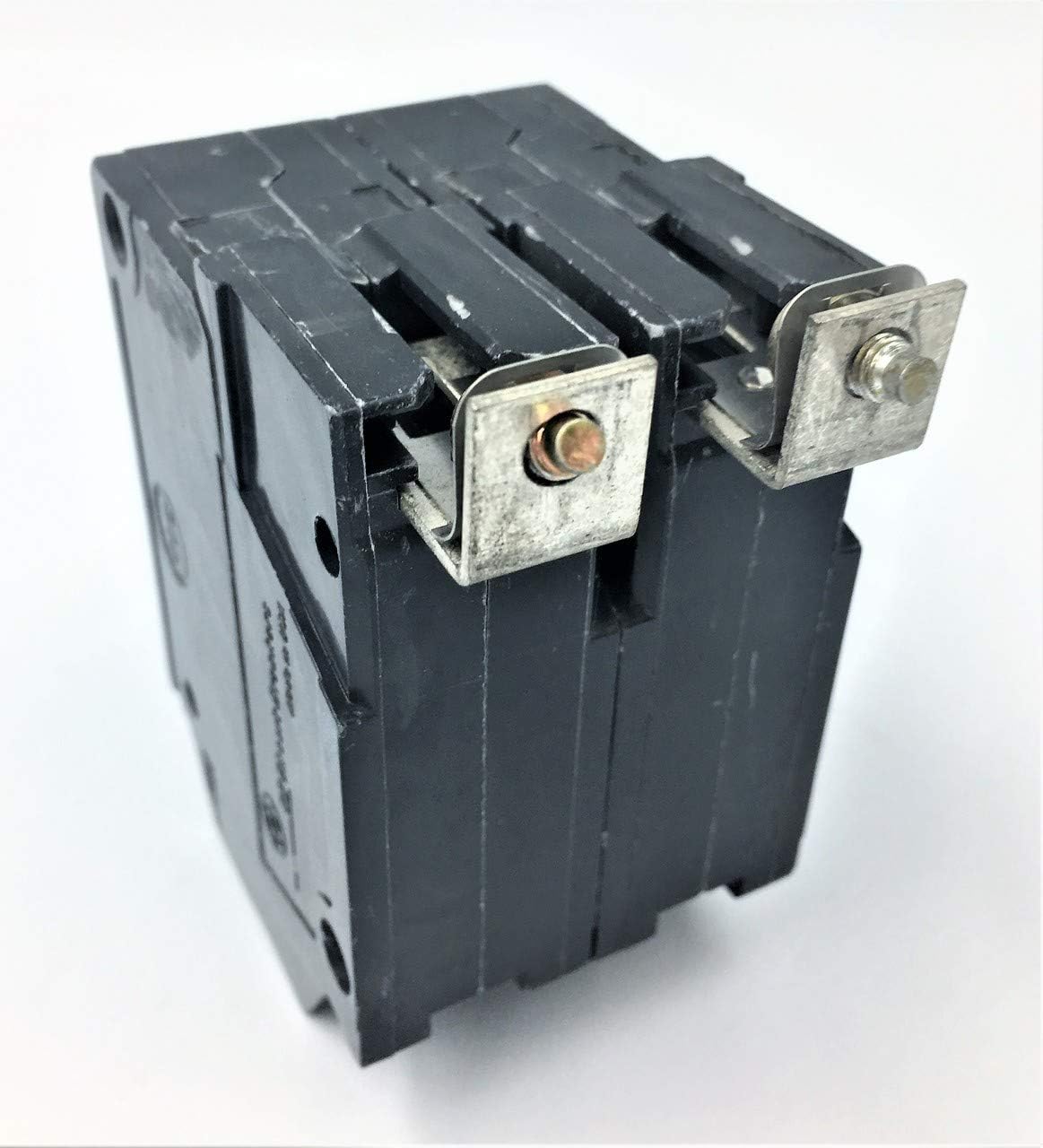

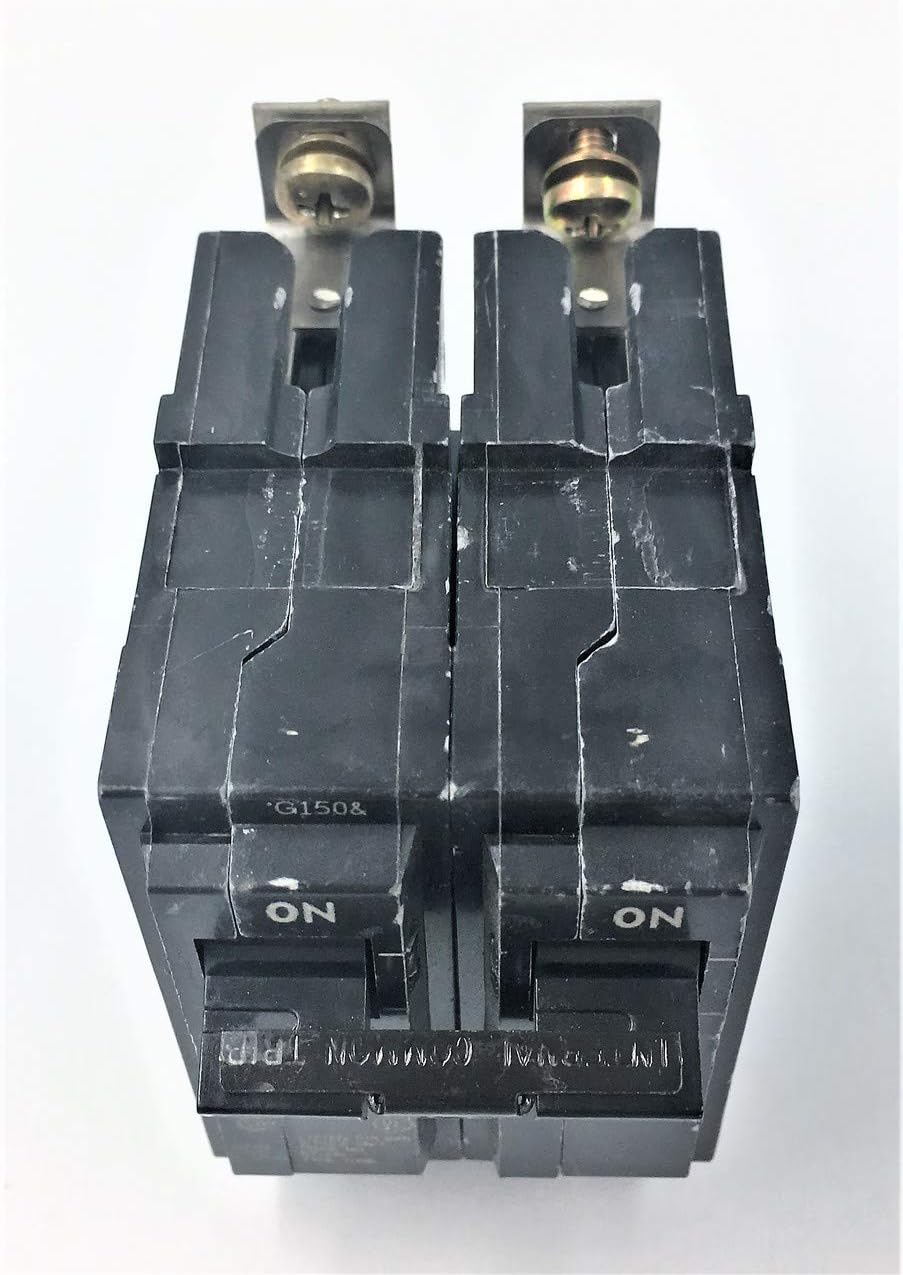

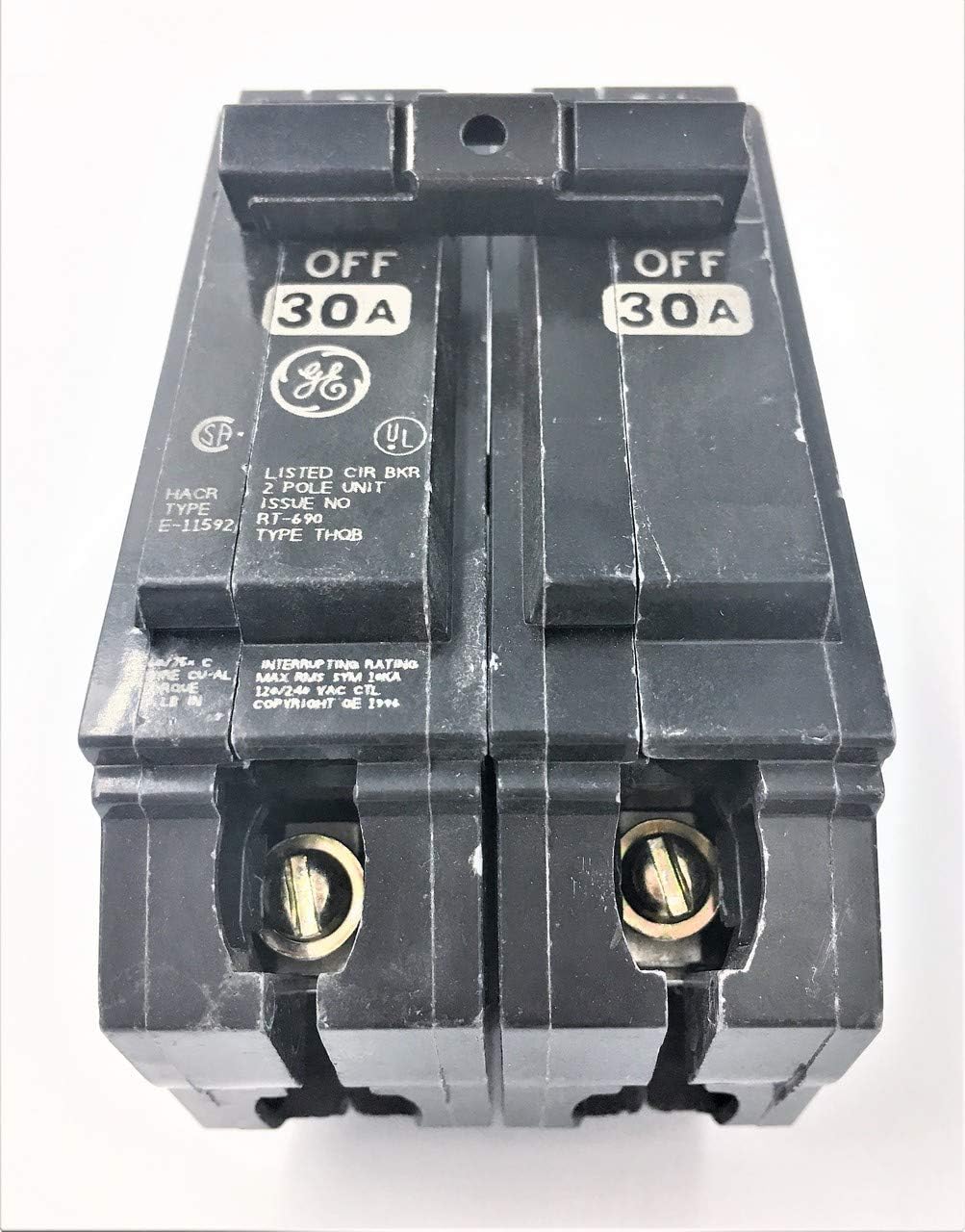

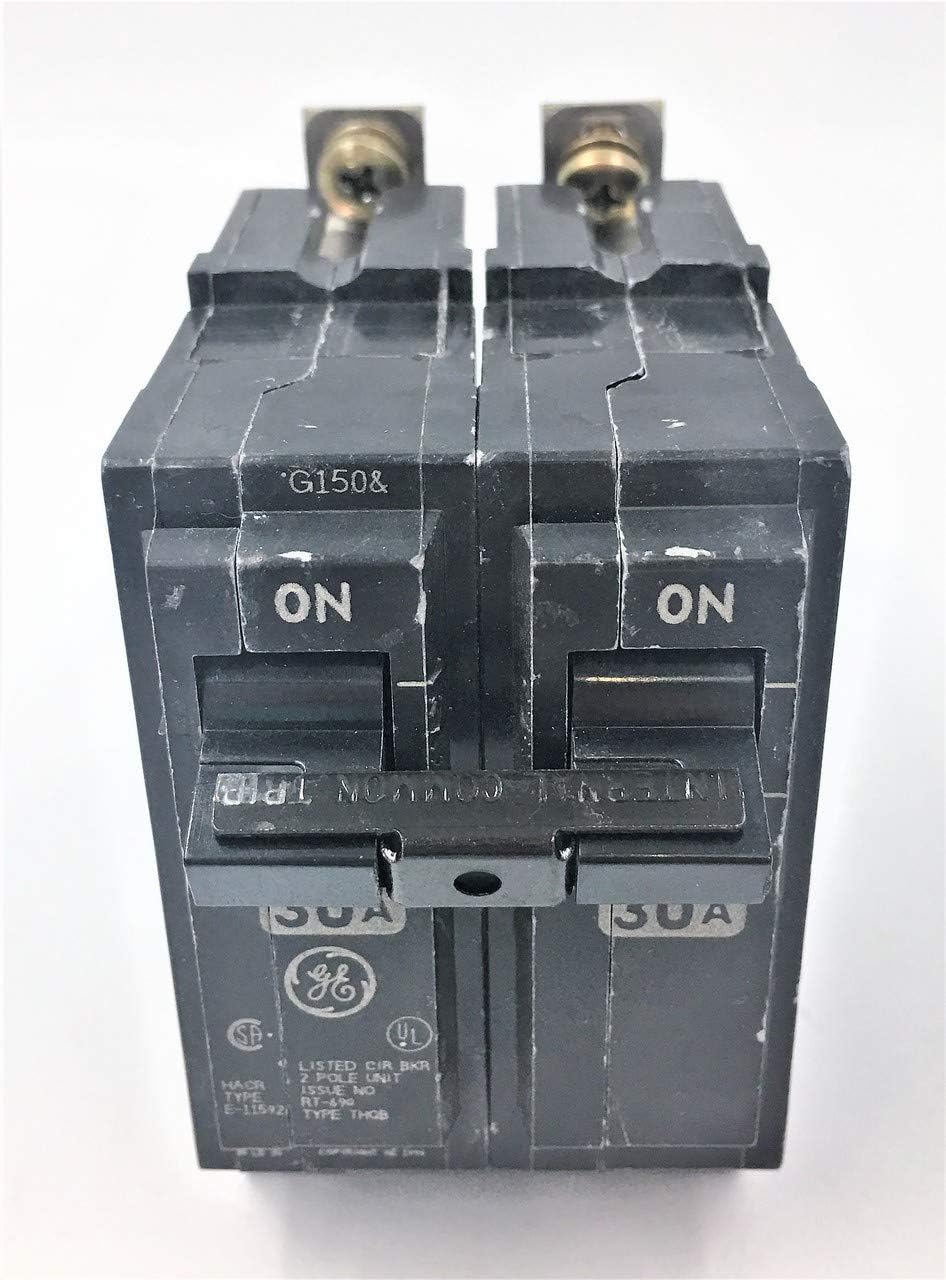

Ge THQB2130 Circuit Breaker 30A 120/240V 2P

Product Description

The GE THQB2130 is a circuit breaker with a 30A amperage capacity and a voltage rating of 120/240V. This 2-pole breaker is designed for residential and commercial applications. It is a bolt-on version of the Q Line, used for bolting to the bus connections of load centers and lighting panels.

• 30 Amp Double Pole Bolt-On Breaker
• Bolt to the bus connections of Load Centers and Lighting Panels
• UL listed HACR (heating, air conditioning and refrigeration)

Product Highlights

The GE THQB2130 circuit breaker is a reliable solution for residential and commercial applications. It features quick-make/quick-break mechanisms and easy to spot trip indication.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: THQB2130
• Country of Origin: Multiple

Technical Specifications

• Voltage: 240 Volts
• Amperage Capacity: 30 Amps
• Mounting Type: Bolt-On
• Current Rating: 30 Amps
• Number Of Poles: 2
• Circuit Breaker Type: Standard
• Voltage Rating: 120/240V
• Amperage Rating: 30 A
• Stripped Catalog Number: THQB2130
• Product Name: Bolt-On Circuit Breaker
• Temperature Rating: 40
• Type: Type THQB Molded Case
• Trip Type: Thermal Magnetic/Long Time/Instantaneous
• Interrupt Rating: 10
• Phase: 1
• Wire Size: 14 to 8 AWG/12 to 8 AWG
• Application: For residential and commercial applications
• Standard & Approvals: UL E11592, CSA Certified
• AC Voltage Rating: 120/240V AC
• DC Voltage Rating: Not Rated
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Max. Wire Size: 8 MCM
• Min. Wire Size: 12 MCM (Al), 14 MCM (Cu)
• Max. AIR Rating: 10kA at 120/240V AC
• Poles: 2
• Amperage: 30 Ampere
• Interrupting Rating: 10000 Ampere
• Terminal Type: Box Terminal
• Mounting: 1 inch bolt on mounting
• Approval: UL
• Model Type: THQB
• Manufacturer: General Electric
