Ge THQB2120 THQB Miniature Circuit Breaker 20 Amp 120/240V

Product Description

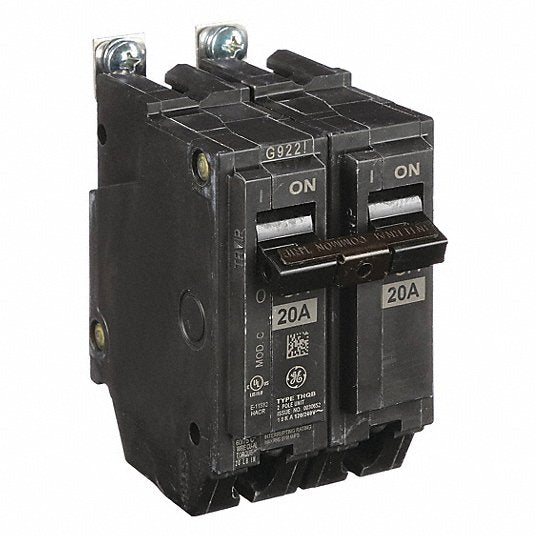

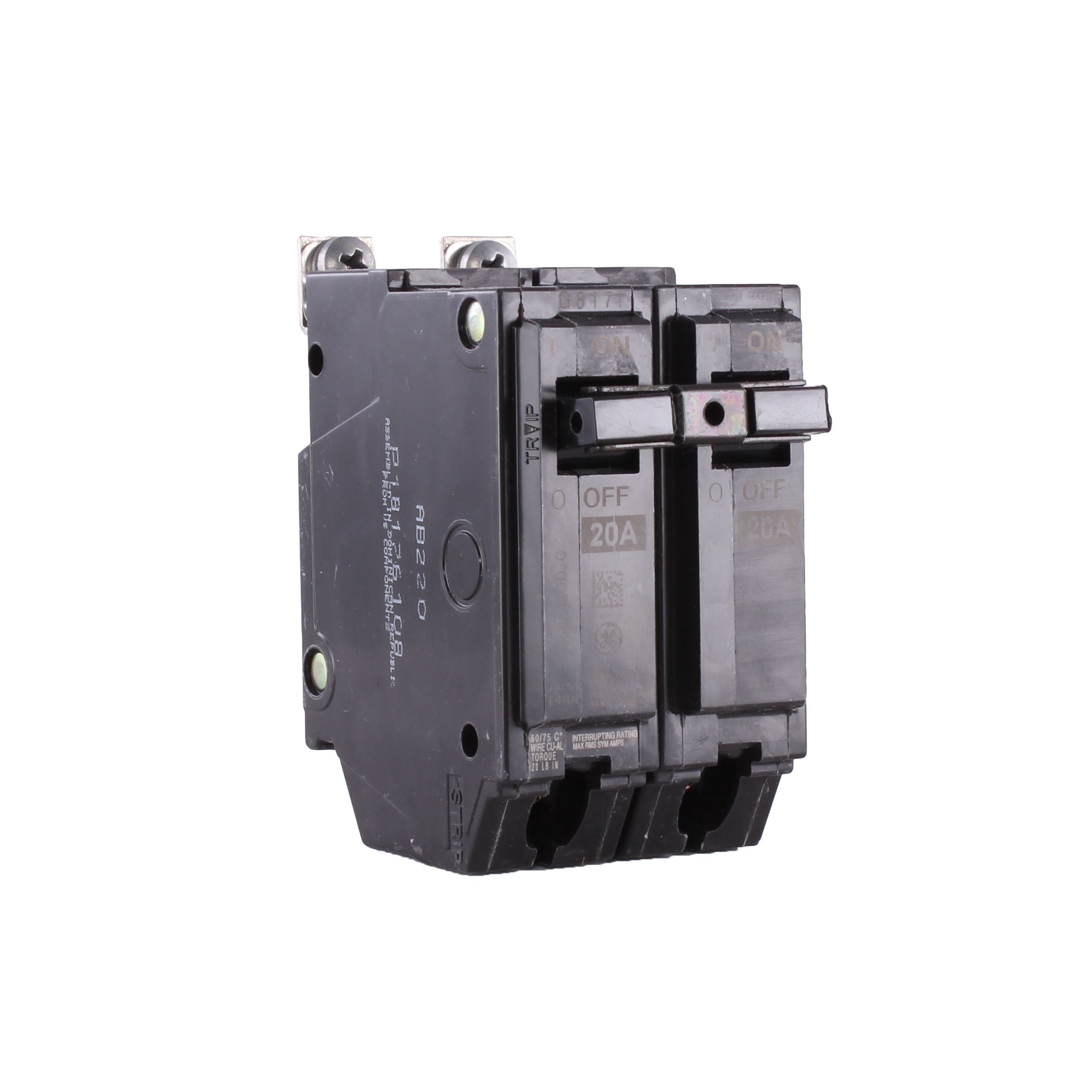

The GE THQB2120 is a 2-pole, 20 Amp, 120/240V bolt-on miniature circuit breaker. This Q-Line circuit breaker is a thermal magnetic device designed for residential and commercial applications. It features quick-make, quick-break mechanisms and common trip bars. It is designed to interrupt currents when faults are detected in the circuit.

• Bolt-on mounting for stability
• Quick-make and quick-break mechanisms
• Suitable for residential and commercial applications

Product Highlights

The GE THQB2120 is a reliable bolt-on circuit breaker for residential and commercial use, featuring thermal-magnetic trip and quick-make/break mechanisms.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: THQB2120
• Country of Origin: Varies (subject to change)

Technical Specifications

• Voltage: 240 Volts
• Model Info: THQB2120
• Mounting Type: Bolt-On Mount
• Current Rating: 20 Amps
• Number Of Poles: 2
• Circuit Breaker Type: Standard
• Type: Type THQB Molded Case
• Phase: Single
• Trip Type: Common/LI/Thermal Magnetic
• Wire Size: 14 to 8 AWG, 12 to 8 AWG
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Temperature Rating: 40 deg C
• Approval: ul
• Terminal: Box terminal
• Model: THQB
• Amps: 20 A
• AC Voltage Rating: 120/240V AC
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Bolt On
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: Lighting Panels; Load Centers
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Min. Wire Size: 12 AWG (Al); 14 AWG (Cu)
• Max. Wire Size: 8 AWG
• Standards: UL Listed
