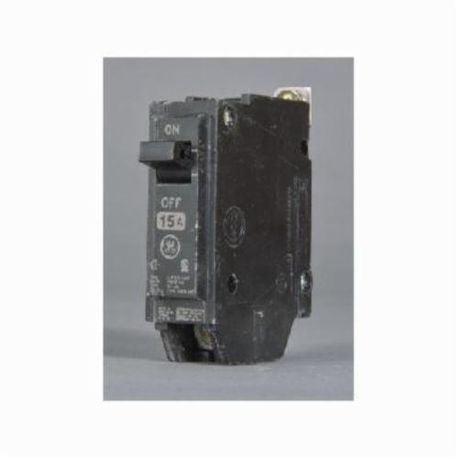

GE THQB1120ST1 Protector Supplementary 120/240VAC 20A

Product Description

The GE THQB1120ST1 is a type THQB molded case miniature supplementary protector designed for use in residential and commercial applications. This unit operates at a voltage rating of one hundred twenty to two hundred forty VAC and can handle up to twenty amperes. Its interrupt rating is ten thousand Amperes, ensuring effective protection against overloads and faults.

• Connects to load centers and lighting panels.
• Features quick make/quick break mechanisms.
• Available in one pole configuration with factory-installed options.

Product Highlights

Utilized for ensuring safety and reliability in electrical circuits, the THQB1120ST1 model is compatible with copper and aluminum wiring. Its bolted-on mounting allows for secure installation, and it features a fixed instantaneous trip function for quick response during overload conditions.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: THQB Molded Case Miniature
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: LI/Thermal Magnetic/Shunt
• Mounting Type: Bolted-On
• Wire Size: 14 to 8 AWG, 12 to 8 AWG
• Dimensions: 3.28 in H x 1 in W x 2.38 in D
• Temperature Rating: 40 deg C
