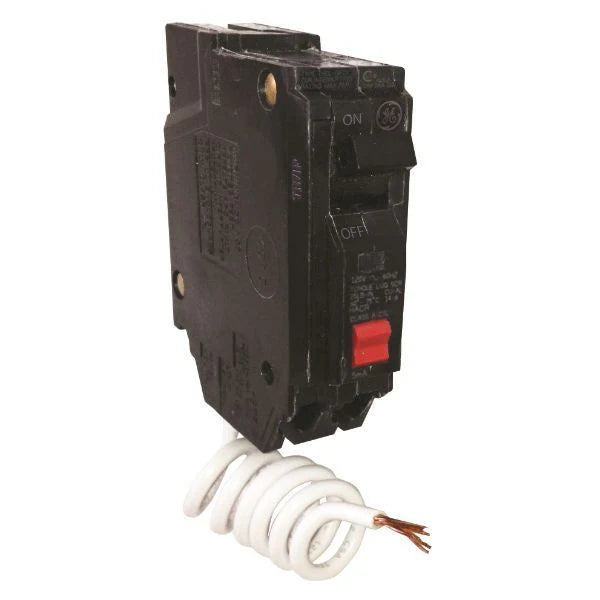

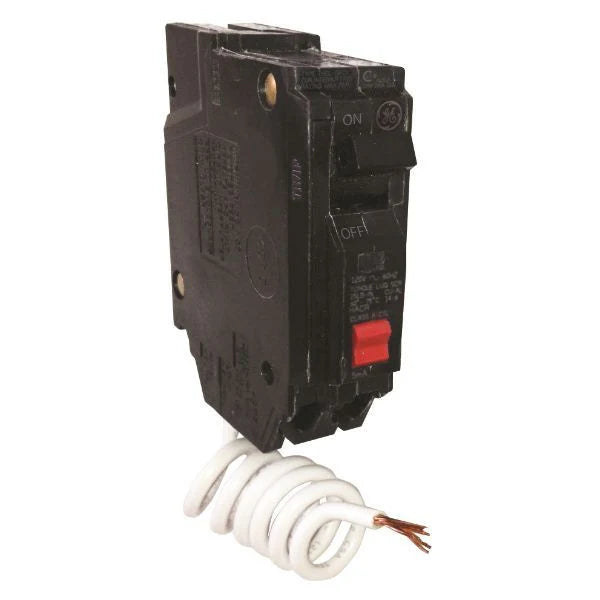

GE THQB1120GFT BREAKER CKT FLT GND 120VAC 20A 10KA

Product Description

The GE THQB1120GFT is a Type THQB miniature molded case self-test ground fault circuit breaker designed for residential and commercial applications. It operates at 120 VAC with a 20 A rating and offers a 10 kA interrupt capacity. This breaker includes a fixed thermal magnetic trip mechanism.

• Compact 1 pole design
• Fixed long time and instantaneous trip functions
• Suitable for reverse feed applications

Product Highlights

The THQB1120GFT provides safety features to protect against ground faults. It is designed for easy installation into load centers and lighting panels.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Type THQB Miniature Molded Case Self-Test
• Frame: TEY
• Phase: 1
• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Trip Type: Fixed Thermal Magnetic/LIG/Non-Interchangeable
• Wire Size: 14 to 8 AWG, 12 to 8 AWG
• Dimensions: 3-9/32 in H x 1 in W x 2-3/8 in D
• Mounting Type: Bolt-On
