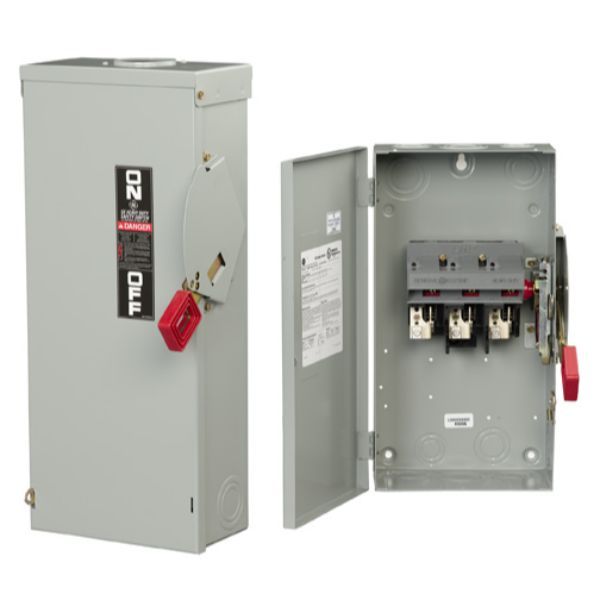

GE THN3364 SWITCH SAF 600VAC 200A 150HP 3 POLES

Product Description

The GE THN3364 is designed as a heavy-duty non-fusible safety switch. It operates at six hundred volts AC with a two hundred amp rating and supports up to one hundred fifty horsepower. This three-pole switch is suitable for both commercial and industrial use, ensuring safety and reliable performance.

• Donut handle supports hook stick operation and allows for up to three padlocks in the off position.
• Direct drive mechanism offers quick-make and quick-break functionality, ensuring clear on/off indication.
• Self-leveling, three-point mounting system enhances installation stability.

Product Highlights

This product meets NEMA standards and is listed for service entrance equipment. It is certified to meet applicable electrical codes and safety standards, promoting reliability and safety in electrical installations.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Heavy Duty Non-Fusible
• Phase: 3
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Horsepower: 150 hp
• Frequency Rating: 50/60 Hz
• Dimensions: 31.5 in H x 13.3 in W x 5.1 in D
• Short Circuit Current Rating: 200 kA
• Enclosure Type: NEMA 1
• Temperature Rating: 60/75 deg C
• Number of Poles: 3
• Number of Wires: 3
• Mounting Type: Surface
