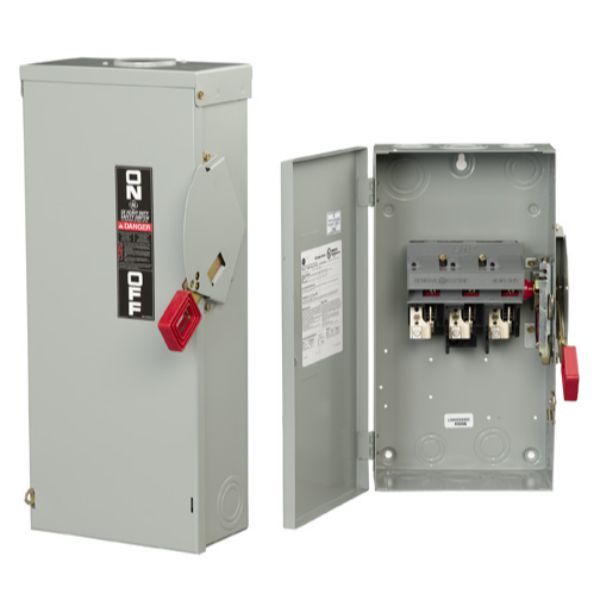

GE THN3363R SWITCH SAF 600VAC 100A 100HP 3 POLES

Product Description

GE THN3363R is a Safety Switch designed for applications up to six hundred volts AC and one hundred amperes. This heavy-duty non-fusible switch is rated for three poles and can handle up to one hundred horsepower. It is suitable for both commercial and industrial settings where safety and reliability are crucial.

• Rated for three poles and designed for surface mounting
• Can operate up to one hundred horsepower
• Meets NEMA 3R standards for outdoor use

Product Highlights

This switch features a handle actuator, a quick-make and quick-break mechanism, and spring-reinforced fuse clips for reliable operation.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Actuator Type: Handle
• Amperage Rating: 100 A
• Voltage Rating: 600 VAC
• Horsepower: 100 hp
• Number of Poles: 3
• Number of Wires: 3
• Enclosure Type: NEMA 3R
• Temperature Rating: 60-75 deg C
• Short Circuit Current Rating: 200 kA
• Dimensions: 17.3 in H x 9.3 in W x 4.9 in D
