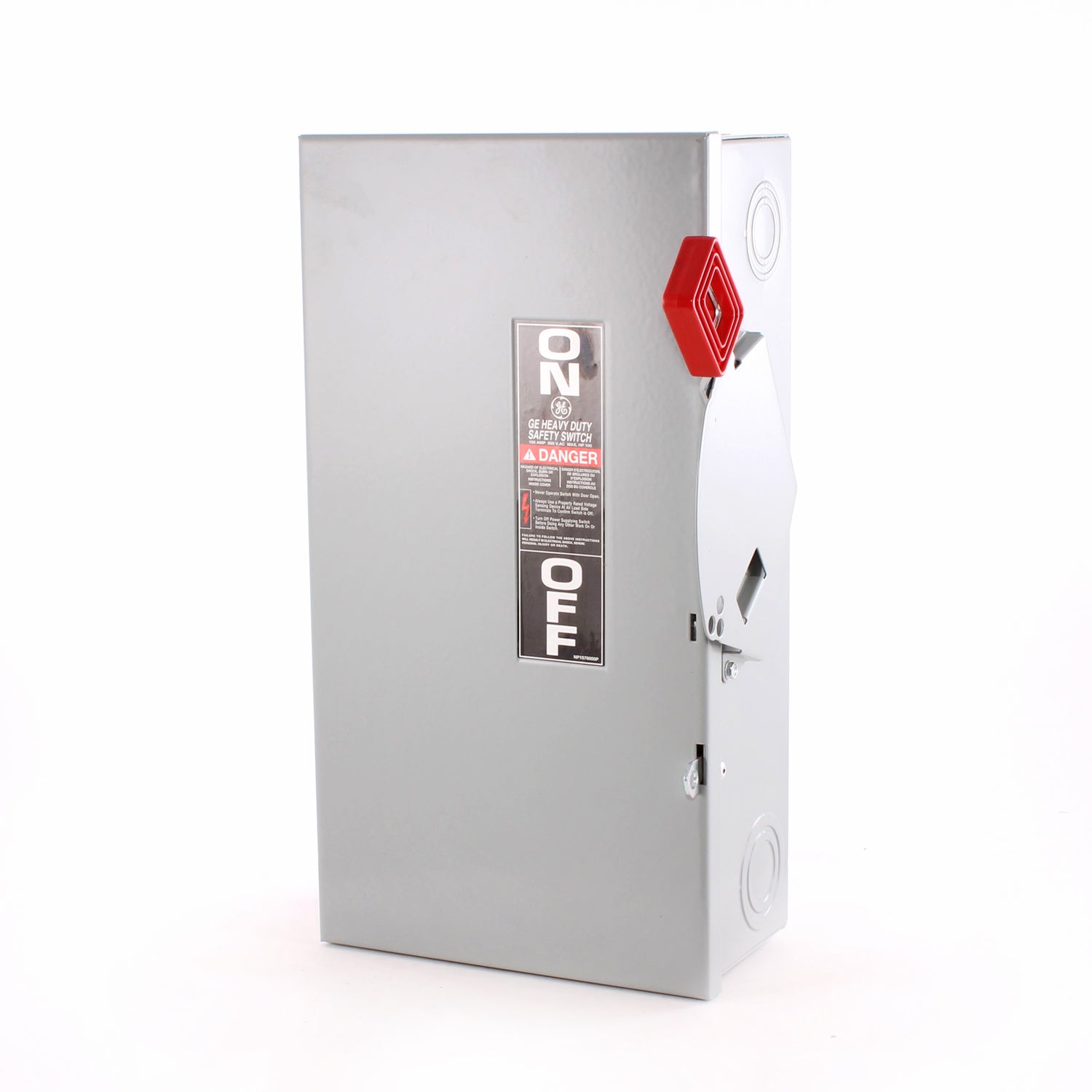

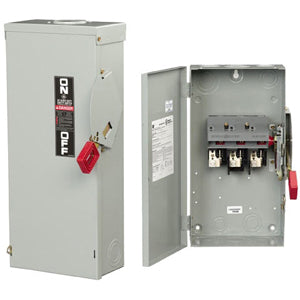

GE THN3363 SWITCH SAF 600VAC 100A 100HP 3 POLES

Product Description

The GE Spec-Setter THN3363 is a heavy duty non-fusible safety switch with a rating of six hundred volts alternating current and one hundred amperes. This switch is designed for commercial and industrial applications where safety and high performance are essential. It allows for the safe control of electrical supply to equipment, making it an important component in power distribution systems.

• Meets UL 98 and CSA standards.
• Features a visible blade position indicator.
• Designed for surface mounting.

Product Highlights

This product is equipped with a donut handle, allowing for hook stick operation and accommodating three padlocks in the off position. It provides a quick-make, quick-break mechanism for reliable on/off indication.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 100 A
• Horsepower: 100 hp
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Dimensions: 17.6 in H x 9.3 in W x 4.8 in D
• Enclosure Type: NEMA 1
• Short Circuit Rating: 200 kA
• Temperature Rating: 60/75 deg C
