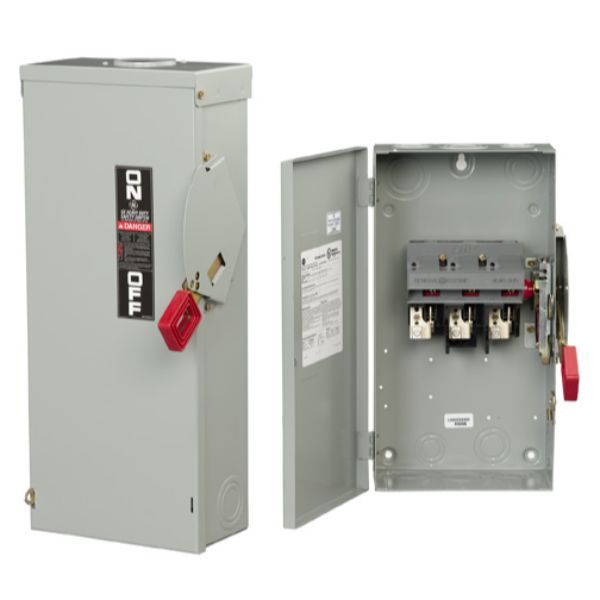

GE THN3362 SWITCH SAF 600VAC 60A 60HP 3 3 50/60HZ

Product Description

The GE THN3362 is a heavy-duty non-fusible safety switch, designed for electrical distribution. It operates at six hundred volts AC, handles sixty amps, and has a horsepower rating of sixty. This switch is suitable for three-phase applications and is certified for commercial and industrial use.

• Donut handle ideal for hook stick operation.
• Quick-make, quick-break mechanism for positive on/off indication.
• Self-leveling, three-point mounting system.

Product Highlights

This safety switch is suitable for service equipment installations when compliant with the National Electrical Code. It features a NEMA one enclosure and is rated for a short circuit current of two hundred kA.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• MPN: THN3362
• Type: Heavy Duty Non-Fusible
• Phase: 3
• Horsepower: 60 hp
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 3
• Dimensions: 17.6 in H x 9.4 in W x 5 in D
• Temperature Rating: 60/75 deg C
• Short Circuit Current Rating: 200 kA
• Mounting Type: Surface
• Enclosure Type: NEMA 1
