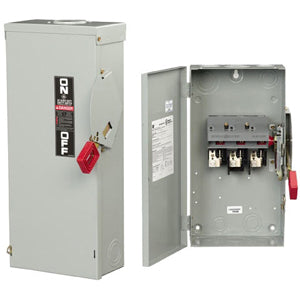

GE THN3361R SWITCH SAF 600VAC 30A 30HP 3 POLES NON-FUSED

Product Description

GE THN3361R is a heavy-duty non-fusible safety switch rated for six hundred volts and thirty amps. It is designed for industrial and commercial applications where safety and performance are critical. The three-pole switch features a durable surface mount design and quick-make, quick-break mechanism.

• Ideal for applications needing high performance and continuity of service.
• NEMA three R enclosure rating ensures protection against water and dust.
• Quick-make, quick-break mechanism provides a reliable ON/OFF indication.

Product Highlights

This product meets UL standards and can be used as service entrance equipment when installed according to the National Electrical Code. It includes a donut handle for hook stick operation and supports three padlocks in the off position.

Product Information

Standard Information

• Manufacturer: General Electric
• Manufacturer Part No: THN3361R

Technical Specifications

• Type: Heavy Duty Non-Fusible
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 3R
• Horsepower: 30 hp
• Dimensions: 13.1 in H x 8.2 in W x 4 in D
• Short Circuit Current Rating: 200 kA
• Temperature Rating: 60/75 deg C
