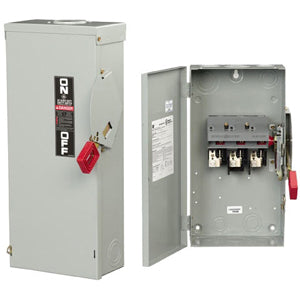

GE THN3361 SWITCH SAF 600VAC 30A 30HP 3 POLES

Product Description

GE THN3361 is a heavy-duty non-fusible safety switch designed for commercial and industrial applications. It operates at six hundred volts and handles up to thirty amps with a three-pole configuration. This switch is suitable for applications requiring safety, high performance, and continuity of service.

• Quick-make, quick-break mechanism for reliable operations.
• NEMA 1 enclosure suitable for indoor use.
• UL listed as service entrance equipment when installed according to the national electrical code.

Product Highlights

This safety switch features a donut handle for easy operation with a hook stick and allows for three padlocks in the off position for safety.

Product Information

Standard Information

• Manufacturer: General Electric
• Manufacturer Part No: THN3361

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower Rating: 30 hp
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Dimensions: ten point three inches H x eight point three inches W x four inches D
• Enclosure Type: NEMA 1
• Temperature Rating: 60/75 degrees Celsius
• Short Circuit Current Rating: 200 kA
