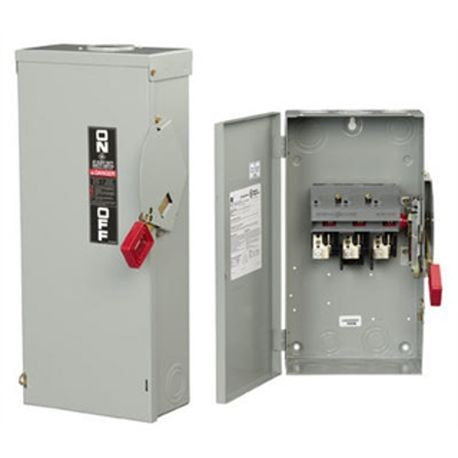

GE TH3365R Spec-Setter Heavy Duty Fusible Safety Switch 600 VAC 400 A 125 hp Standard Fuse/350 hp Time Delay

Product Description

The General Electric TH3365R is a heavy-duty fusible safety switch designed for commercial and industrial use. This switch operates at six hundred volts with a maximum current rating of four hundred amps and is suitable for multiple fuse classes. It features a three-pole design and can handle up to one hundred twenty-five horsepower with standard fuses or three hundred fifty horsepower with time delay fuses.

• Donut handle for easy hook stick operation
• Quick-make, quick-break mechanism for reliable performance
• UL Listed as service entrance equipment

Product Highlights

This switch provides high performance, safety, and continuity of service. Its design includes features that ensure reliable operation and serviceability in demanding environments.

Product Information

Standard Information

• Brand: GE
• Manufacturer: General Electric

Technical Specifications

• Series: TH Series
• Amperage Rating: 400 A
• Phase: 3
• Short Circuit Rating: 200,000 rms symmetrical A
• Enclosure Type: NEMA 3R
• Frequency Rating: 50/60 Hz
• Actuator Type: Handle
• Mounting Type: Surface
• Dimensions: 23 inches W x 8.5 inches D x 53.5 inches H
• Voltage Rating: 600 V
• Horsepower: 125 hp Standard Fuse / 350 hp Time Delay
• Number of Poles: 3
• Number of Wires: 3
• Minimum Order Quantity: 1
