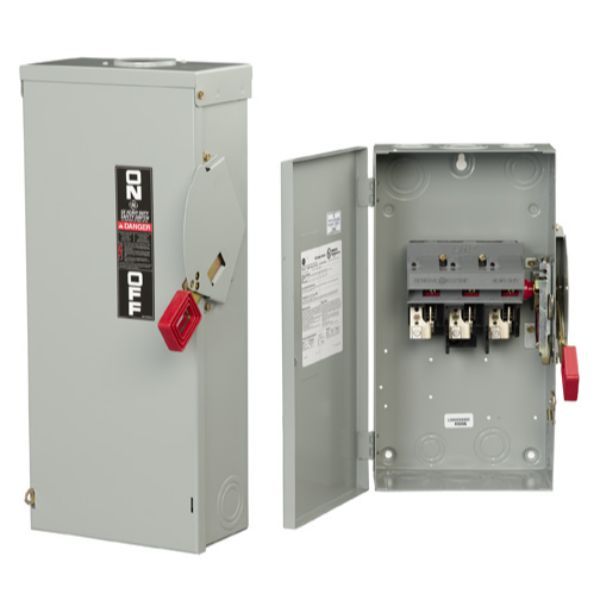

GE TH3364R SWITCH SAF 600VAC 200A 3 3 50/60HZ 3 HDL

Product Description

The GE TH3364R is a safety switch designed for commercial and industrial applications. It operates at six hundred volts and offers an amperage rating of two hundred amps. With its three poles and three wires, it ensures a reliable power distribution system. The switch handles up to sixty horsepower and includes a standard fuse with a time delay of one hundred fifty horsepower.

• Rated for 600VAC and 200A
• Three-phase operation
• NEMA 3R enclosure for outdoor installation

Product Highlights

The GE TH3364R provides a robust and safe connection for electrical systems.

Product Information

Standard Information

• Manufacturer: ABB Electrification
• Brand: GE

Technical Specifications

• Type: Fusible Heavy Duty
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Horsepower: 60 hp Standard Fuse/150 hp Time Delay
• Short Circuit Current Rating: 200 kA
• Enclosure Type: NEMA 3R
• Actuator Type: Handle
• Mounting Type: Surface
• Dimensions: 31.7 in H x 13.4 in W x 5.4 in D
