GE TH3364 SWITCH SAF 600VAC 200A 3 3 50/60HZ 3 HDL

Product Description

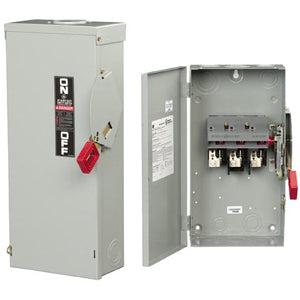

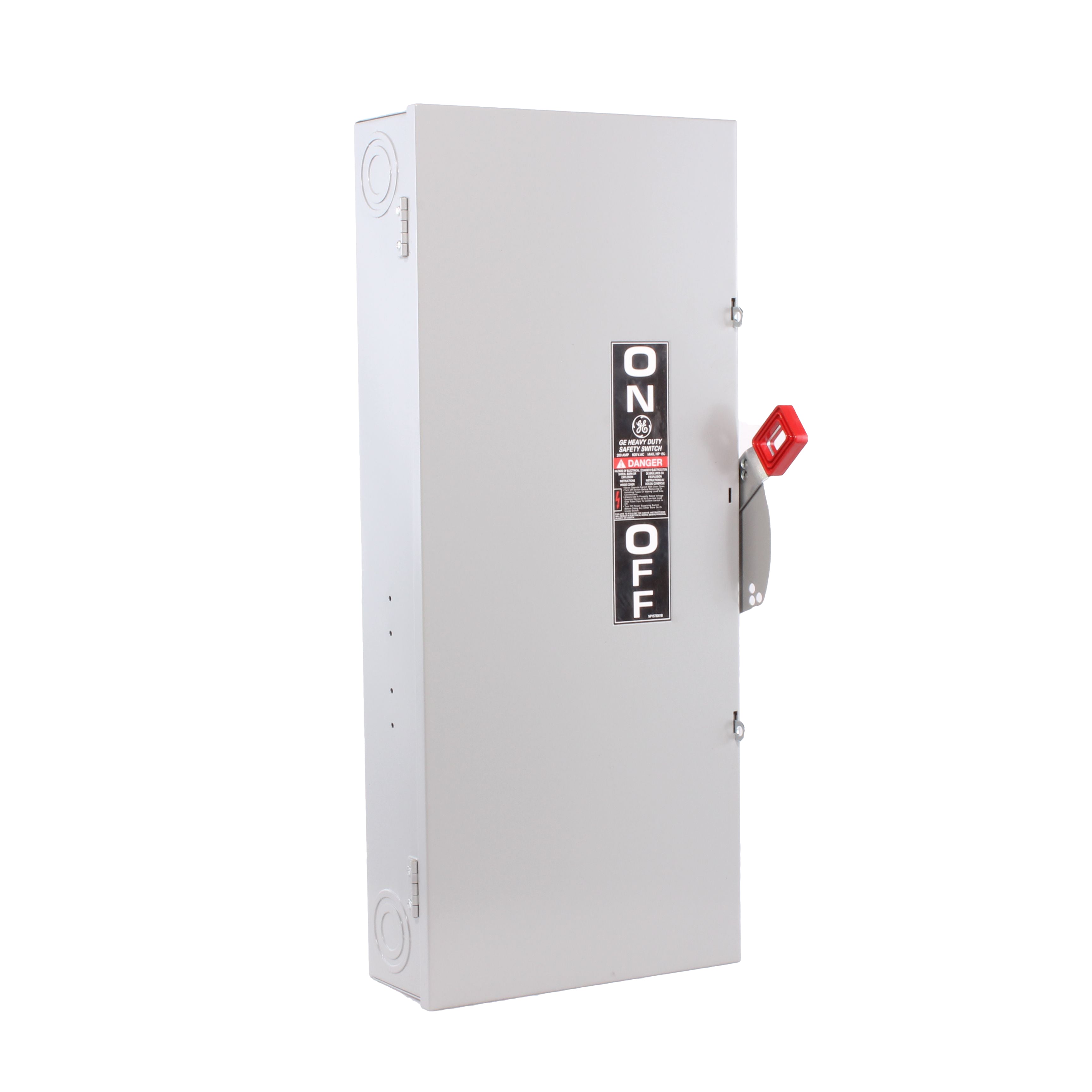

The GE TH3364 safety switch is designed for high performance and safety in commercial and industrial applications. This model TH3364 operates at six hundred volts AC and provides a current rating of two hundred amps. It features a quick-make, quick-break mechanism that ensures reliable operation and compliance with electrical codes. This heavy-duty safety switch is suitable for service entrance applications when installed as per the National Electrical Code.

• Fusible heavy-duty safety switch.
• Rated for three phases with a frequency range of fifty to sixty Hertz.
• Compact dimensions of thirty-one point five inches high by thirteen point three inches wide and five point one inches deep.

Product Highlights

Robust design supports safety and operational integrity across numerous industrial applications.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TH3364

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Horsepower: 60 hp Standard Fuse / 150 hp Time Delay
• Phase: 3
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 200 kA
• Mounting Type: Surface
• Temperature Rating: 60/75 deg C
• Enclosure Type: NEMA 1
