GE TH3361R SWITCH SAF 600VAC 30A 3 3 50/60HZ 3 HDL

Product Description

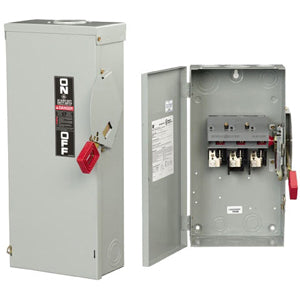

The GE TH3361R is a fusible heavy duty safety switch. It operates at 600VAC with an amperage rating of thirty amps. This switch is designed for use in commercial and industrial settings where safety and performance are vital.

• Rated for 600VAC and 30A operation.
• Designed for 50/60Hz frequency.
• Includes a durable NEMA 3R enclosure.

Product Highlights

This switch features a quick-make, quick-break mechanism for reliable operation. Its donut handle is suitable for hook stick operation and can accommodate three padlocks. The switch is UL listed as service entrance equipment.

Product Information

Standard Information

• Manufacturer: GE
• MPN: TH3361R

Technical Specifications

• Type: Fusible Heavy Duty
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Horsepower: 7.5 hp Standard Fuse / 20 hp Time Delay
• Short Circuit Current Rating: 200 kA
• Enclosure Type: NEMA 3R
• Temperature Rating: 60/75 deg C
• Overall Dimensions: 13.1 in H x 8.2 in W x 4 in D
