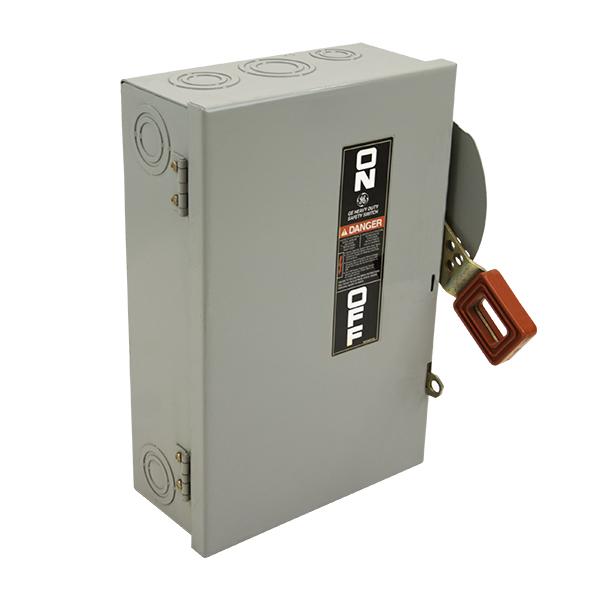

Ge TH3221 3 wire 2 pole fusible type TH heavy-duty safety switch 240 volt AC 30 amp NEMA 1 Spec-Setter

Product Description

The GE TH3221 is a 3-wire, 2-pole fusible type TH heavy-duty safety switch, designed as a Spec-Setter. This safety switch is rated for 240VAC and 30 Amps, with a NEMA 1 enclosure. It is designed for commercial and industrial applications where safety and high performance are needed. This fusible switch is easy to install.

• Features a direct drive, quick-make, quick-break mechanism for positive ON/OFF indication.
• Includes spring reinforced fuse clips for reliable contact and cool operation.
• Suitable for class H, K, J or R fuses.

Product Highlights

The GE TH3221 fusible safety switch ensures safety and reliability with its robust design and easy installation, suitable for various commercial and industrial applications.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: TH3221

Technical Specifications

• Poles: 2
• Amps: 30
• NEMA: N1
• Volts: 240
• Phase: 1
• Disco Type: Fused
• Size: 10.3 in
• Enclosure: NEMA 1 (Indoor)
• Application: Heavy
• Manufacturer: GE
• Voltage Rating: 240 AC
• Amperage Rating: 30A
• Number of Poles: 2
• Actuator Type: Handle
• Enclosure Type: NEMA 1
• Finish: Hot Dipped Galvanized/Powder Coated
• Frequency Rating: 50/60 Hz
• Horsepower: 1-1/2 hp, 3 hp
• Insulation Type: Class H/J/K/R
• Material: Stainless Steel
• Mounting Type: 3-Point/Self-Leveling
• Number of Wires: 3
• Short Circuit Current Rating: 200 kA
• Temperature Rating: 60 to 75 deg C
• Terminal Type: Line/Load Lug
• Type: Fused Heavy Duty
• NEMA Rating: 1
• Fuse Class: R
