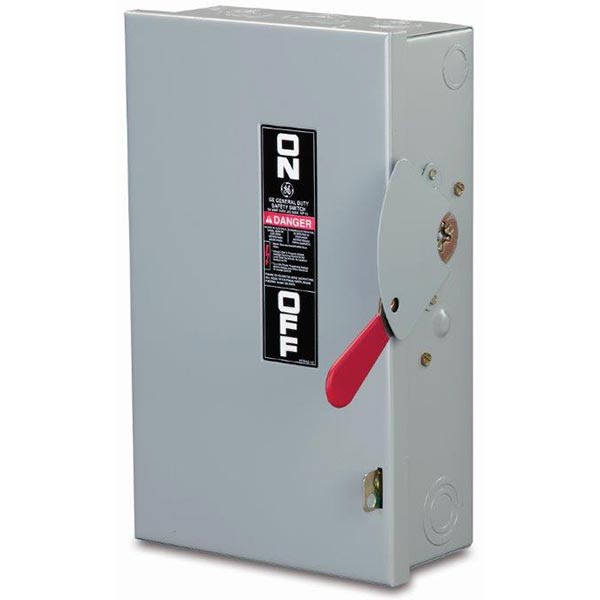

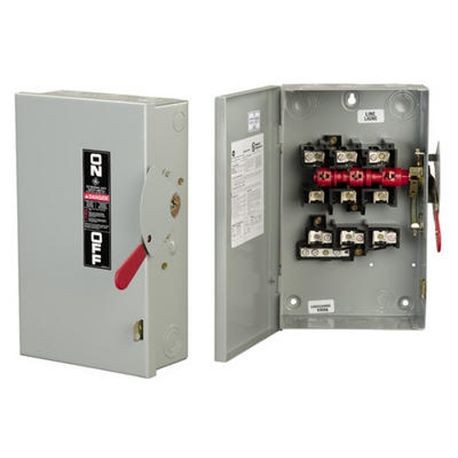

GE TGN3324R SWITCH SAF 240VAC 200A 3 1/3 50/60HZ

Product Description

The GE TGN3324R is a general duty non-fusible safety switch designed for electrical distribution in residential and light commercial applications. This switch operates at 240 volts, boasting a current rating of 200 amperes and capable of handling up to fifteen horsepower with standard fuses and fifty horsepower with time delay fuses.

• Direct drive quick-make, quick-break mechanism
• Self-leveling three-point mounting system
• Integral cover interlock for safety

Product Highlights

This safety switch is suitable for a variety of applications where service equipment is required. Its robust design allows for dependable operation in non-severe duty situations.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: General Duty Non-Fusible
• Phase: 1/3
• Series: TGN
• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 3R
• Material: Steel
• Dimensions: 28.78 inches H x 13.4 inches W x 5.3 inches D
• Temperature Rating: 60/75 deg C
• Short Circuit Current Rating: 100 kA
