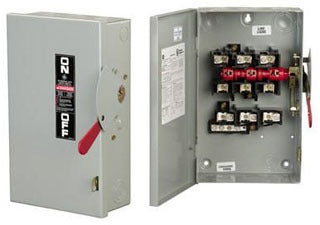

GE TGN3323R Switch Saf 240VAC 100A 3 Poles

Product Description

GE TGN3323R is a General Duty Non-Fusible Safety Switch that operates at 240 volts AC and supports an amperage rating of 100 A. This switch has three poles and is designed for residential and light commercial applications. It is suitable for surface mounting and offers a durable NEMA 3R enclosure.

• Direct drive, quick-make mechanism for positive on/off operation.
• Self-leveling, three-point mounting system for easy installation.
• UL listed short-circuit rating of 10000 amps.

Product Highlights

This safety switch is ideal for residential and light commercial applications where there is not severe duty. It meets or exceeds various industry standards for safety and reliability.

Product Information

Standard Information

• Brand: GE
• Manufacturer: General Electric

Technical Specifications

• Type: General Duty Non-Fusible
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Dimensions: 15.55 inches H x 9.3 inches W x 5 inches D
• Material: Steel
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 degrees C
