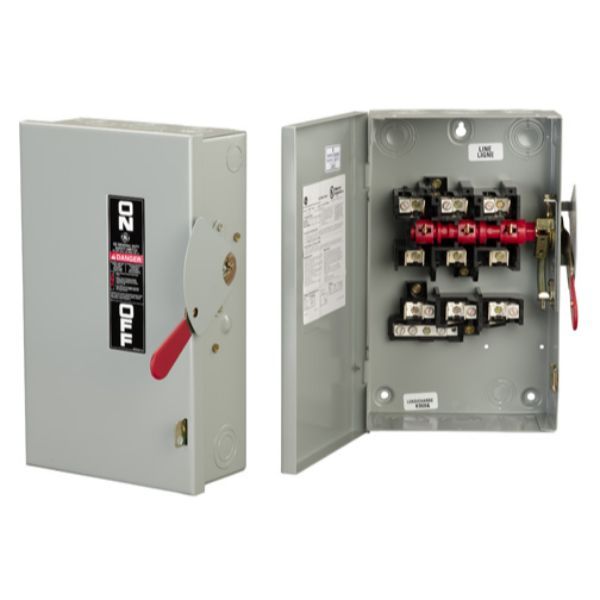

GE TGN3323 SWITCH SAF 240VAC 100A 3 1/3 50/60HZ

Product Description

GE Spec-Setter TGN3323 is a General Duty Non-Fusible Safety Switch designed for residential and light commercial applications. This unit is rated at two hundred forty volts alternating current and one hundred amps. It features a quick-make, quick-break mechanism for ease of operation. This safety switch is designed to provide reliable service while ensuring safety in electrical distribution.

• Non-Fusible Switch Type
• Resistant to severe duty applications
• Designed to meet code requirements

Product Highlights

Ideal for applications where duty is not severe, this switch can also serve as service entrance equipment when installed following the National Electrical Code.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TGN3323

Technical Specifications

• Type: General Duty Non-Fusible
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Horsepower: 15 at 240 VAC, 30 at 240 VAC 3-Phase
• Dimensions: 21.33 inches H x 9.4 inches W x 4.9 inches D
• Material: Steel
• Approval: UL 98, CSA
• Short Circuit Current Rating: 100 kA
• Enclosure Type: NEMA 1
