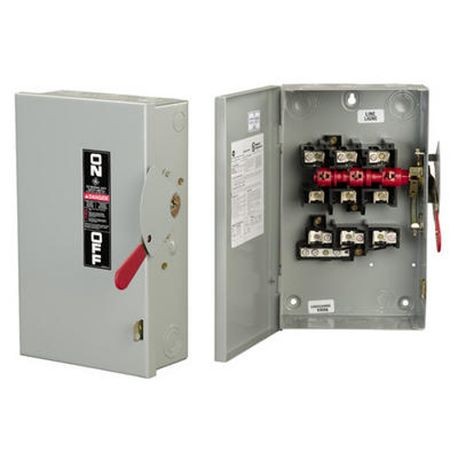

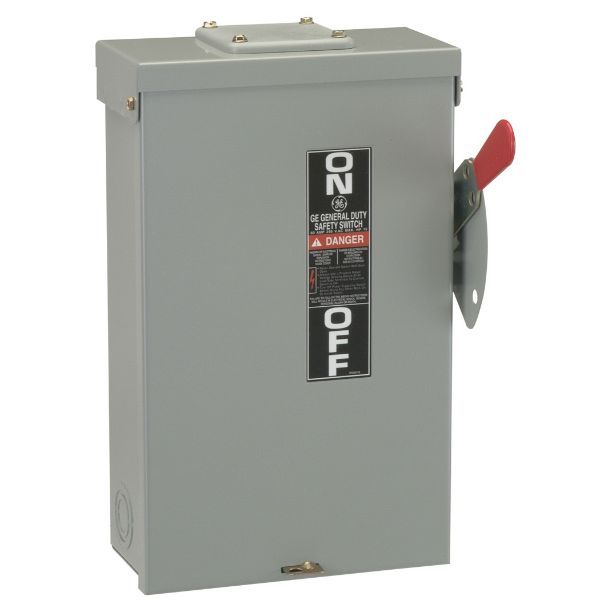

GE TGN3321R General Duty Non-Fusible Safety Switch 240 VAC 30 Amp 3 Pole NEMA 3R

Product Description

GE TGN3321R General Duty Non-Fusible Safety Switch operates at 240 VAC and is rated at 30 Amps with three poles. It is designed for residential and light commercial applications. Constructed with a handle actuator and featuring a NEMA 3R enclosure, this safety switch is suitable for various installations.

• Direct drive, quick-make, quick-break mechanism
• Self-leveling, three-point mounting system
• Visible confirmation of contact positions

Product Highlights

Reliable safety switch for effective electrical distribution and control.

Product Information

Standard Information

• Brand: GE
• MPN: TGN3321R

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Type: General Duty Non-Fusible
• Material: Steel
• Horsepower: 3 hp Standard Fuse/7.5 hp Time Delay
• Short Circuit Current Rating: 100 kA
• Enclosure Type: NEMA 3R
• Temperature Rating: 60/75 deg C
• Dimensions: 9.78 in H x 6.4 in W x 3.3 in D
• Mounting Type: Surface
