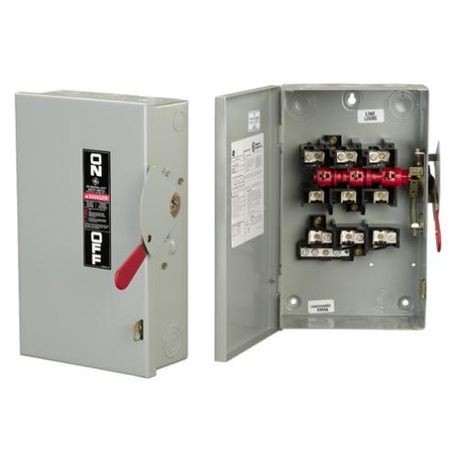

GE TG4325 Spec-Setter General Duty Fusible Safety Switch 240 VAC 400 A 3 Poles NEMA 1

GENERAL ELECTRIC
Brand: GENERAL ELECTRIC
SKU: TG4325
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 111 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The General Electric TG4325 is a general duty fusible safety switch rated for two hundred forty volts AC and four hundred amps. This switch features three poles and is designed for NEMA one indoor applications.

  • Direct-drive mechanism for clear ON/OFF indication
  • Self-leveling three-point mounting system
  • UL Listed for service entrance applications

Product Highlights

This safety switch is suitable for residential and light commercial use where the duty is not severe. Its robust design ensures reliable performance in various electrical applications.

Product Information

Standard Information

  • Brand: GE
  • Application: For residential and light commercial applications
Technical Specifications
Mounting Type
Surface
Dimensions
Twenty-one point six inches wide x eight point seven inches deep x forty-nine point two inches high
Horsepower
Fifty hp
Short Circuit Rating
Ten thousand amps
Actuator Type
Handle
Number Of Poles
Three
Number of Wires
Four
Voltage Rating
Two hundred forty volts
Amperage Rating
Four hundred amps
Frequency Rating
Fifty/sixty hertz
Material
Steel
Enclosure Type
NEMA 1 Indoor
Standard & Approvals
CSA C22.2 No 4-04, cUL Listed, Federal Specification WS-865C, NEMA KS1-2013, Seismic Certified, UL 98
