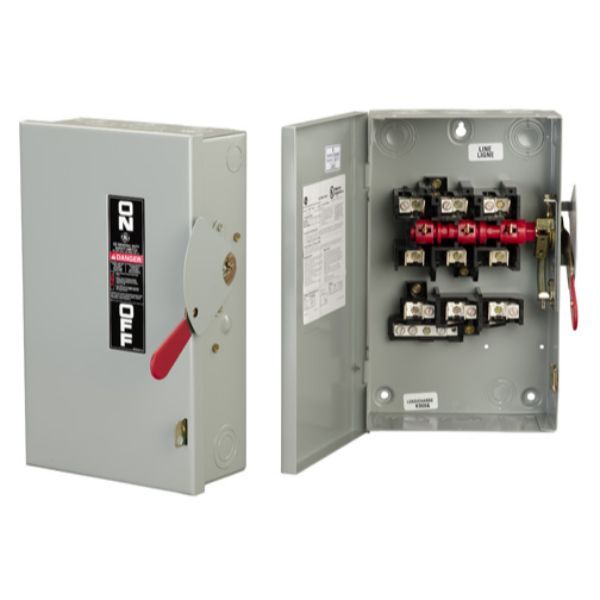

GE TG4324 SWITCH SAF 240VAC 200A 3 POLES

Product Description

The GE Spec-Setter TG4324 is a fusible general duty safety switch. It operates at two hundred amperes and two hundred forty volts. This switch is designed for residential and light commercial applications. The device features a direct drive, quick-make, and quick-break mechanism. This mechanism ensures rapid contact opening and closing, providing a clear on/off indication.

• 200 amp rating at 240VAC
• NEMA 1 enclosure for indoor use
• Designed for 50/60Hz frequency

Product Highlights

Safety and reliability are enhanced with features such as a spring reinforced fuse clip for better cooling operation and a visible confirmation of the plated blade contact positions.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Fusible General Duty
• Phase: 1
• Amperage Rating: 200 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Dimensions: 29.11 in H x 13.4 in W x 5.2 in D
• Construction Material: Steel
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 deg C
